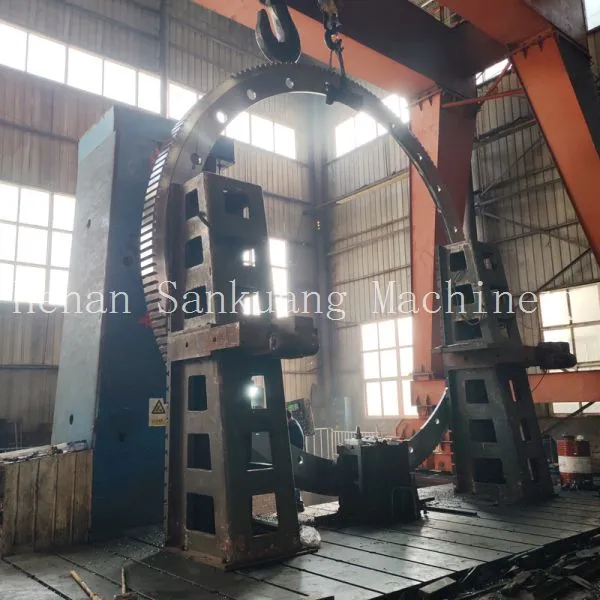

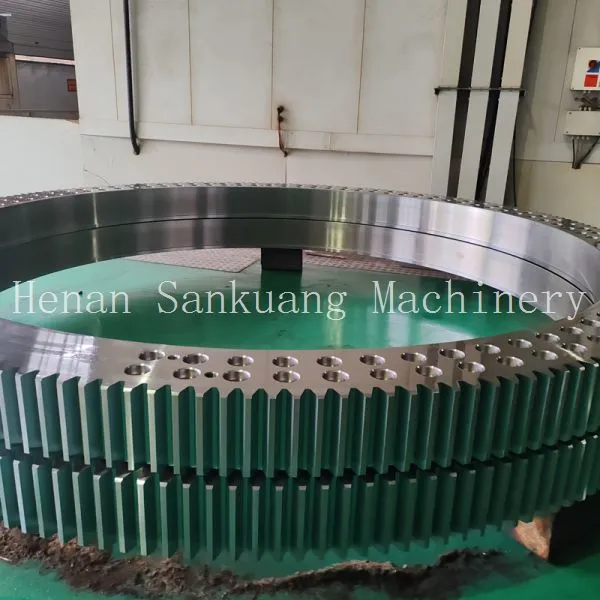

Segmented Ring Gear With 12-Month Warranty Against Manufacturing Defects
Product Spotlights
Segmented design enables easy installation and maintenance in tight spaces. Made from high-strength materials with precision heat treatment for durability. Customizable dimensions and tooth profiles to fit specific machinery. Backed by a 12-month warranty against manufacturing defects. Reduces downtime and replacement costs by allowing segment-by-segment repair.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, High-strength alloy steel or cast iron
Module Range:
Customizable, typically 2-20
Number of Segments:
Customizable, commonly 2-4 segments
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Divided Ring Gear Supplied With Mill Test Report and Dimensional InspectionNegotiableMOQ: 1 Piece -
Precision Split Ring Gear for Heavy-Duty Machinery With 1000 Nm Torque RatingNegotiableMOQ: 1 Piece
-
Segmented Ring Gear Kit With Dowel Pin Alignment for Easy InstallationNegotiableMOQ: 1 Piece
-
Segmented Ring Gear in 4140 Alloy Steel for Industrial GearboxesNegotiableMOQ: 1 Piece
-
Precision Slewing Ring Bearings: The Core of Rotating Heavy MachineryNegotiableMOQ: 1 Unit
Material
Other, High-strength alloy steel or cast iron
Module Range
Customizable, typically 2-20
Number of Segments
Customizable, commonly 2-4 segments
Tooth Profile
Involute, precision ground or hobbed
Heat Treatment
Carburizing, quenching, and tempering
Surface Finish
Optional black oxide or phosphate coating
Application
Heavy-duty mining, cement, and power generation equipment
Warranty
12 months against manufacturing defects
Customization
Available upon request for dimensions and specifications
As a leading manufacturer and exporter, Henan San Kuang Machinery Technology Co., Ltd. leverages over a decade of expertise, established in 2014, to deliver robust power transmission solutions. Our segmented ring gear is engineered for reliability in the most demanding industrial environments, offering a smart alternative to monolithic gears by simplifying installation, maintenance, and replacement. This design is a direct response to the needs of our global clientele across mining, cement production, and power generation sectors, providing exceptional value through reduced downtime and long-term operational cost savings.
This product is a testament to our commitment to quality and innovation, produced in our expansive 10,000-30,000 square meter facility. We understand that in heavy machinery, a gear failure can halt an entire operation. Our segmented ring gear mitigates this risk with a robust design backed by a solid 12-month warranty against manufacturing defects, giving you peace of mind and protecting your investment.
Key Features and Technical Advantages:
- Modular Design for Easy Handling & Installation: The segmented construction allows for transportation and installation in confined spaces or on-site where handling a single, massive gear ring is impractical or impossible. This drastically reduces assembly time and requires less heavy lifting equipment.
- Superior Material and Durability: Manufactured from high-grade alloy steels or specialized cast irons, each segment undergoes precise machining and advanced heat treatment processes like carburizing and quenching to achieve optimal surface hardness and core toughness, ensuring exceptional wear resistance and load-bearing capacity.
- Precision Engineering for Smooth Operation: Teeth are accurately hobbed or ground to an involute profile, guaranteeing smooth meshing with the pinion, minimal backlash, reduced vibration, and quieter operation, which contributes to the overall health of the drive system.
- Simplified Maintenance and Cost-Effectiveness: In the event of localized damage or wear, only the affected segment needs replacement instead of the entire gear ring. This targeted repair approach minimizes spare parts inventory costs and significantly cuts downtime and associated losses.
-
Customization Flexibility: We tailor the gear to your specific requirements. Key customizable parameters include:
Outer Diameter (OD) From 1 meter to over 8 meters Module (M) Range from 2 to 20 Number of Teeth Designed per application Face Width Customizable based on torque requirements Number of Segments Typically 2, 3, or 4 - Protective Surface Treatments: Optional coatings such as black oxide or phosphate are available to enhance corrosion resistance, extending the gear's service life in harsh environmental conditions.
Frequently Asked Questions (FAQ):
-
What are the primary applications for a segmented ring gear?
These gears are predominantly used in large-scale rotating equipment where size and weight are constraints. Common applications include rotary kilns and dryers in cement and metallurgy, large ball mills and SAG mills in mining, and critical components in wind turbine drives and heavy power generation machinery. -
How does the segmented design affect the gear's strength and performance?
When properly designed and manufactured with precision mating surfaces and secure fastening (using high-strength bolts and dowel pins), a segmented gear performs with strength and accuracy comparable to a one-piece gear. The joint interfaces are engineered to distribute load evenly without compromising integrity. -
What is included in the 12-month warranty?
The warranty covers any failure or defect arising directly from the manufacturing process, such as material flaws, improper heat treatment, or machining errors. It does not cover damage due to improper installation, overload, inadequate maintenance, or normal wear and tear. -
Can you provide a complete gear drive system, including the pinion?
Yes. While we specialize in the ring gear, we can supply a matched pinion set engineered to work seamlessly with your segmented ring gear, ensuring optimal performance and longevity of the entire drive train. -
What information do you need to provide a quotation?
To prepare an accurate quote, please provide detailed specifications or drawings, including outer diameter, module, number of teeth, face width, bore size, required material grade, and any special surface treatment or certification needs. -
How do you ensure alignment and accuracy between segments during installation?
Each segment is machined with precision reference surfaces and dowel pin holes. We provide detailed installation instructions and, if required, can supply alignment tools or offer technical support to ensure the segments are assembled into a perfectly concentric and true-running gear. -
What are the lead times for a custom segmented ring gear?
Lead times vary based on size, complexity, and material. Standard configurations may have a lead time of 8-12 weeks, while highly customized or very large gears may require 12-16 weeks. We provide a firm timeline upon order confirmation. -
Do your products comply with international standards?
Our manufacturing processes are guided by a commitment to quality management systems. We hold relevant certifications that attest to our operational standards and our capability to produce components that meet rigorous industrial requirements.
Choosing Henan San Kuang means partnering with a company that has a proven track record, exporting to major markets worldwide from North America and Europe to Southeast Asia and Africa. Our annual export value of US$2.5-5 Million reflects the trust of our international customers. Supported by a dedicated team of 51-100 professionals and operating from strategic ports like Shanghai and Qingdao, we ensure efficient and reliable logistics. Our segmented ring gear combines innovative engineering with practical benefits, delivering a solution that enhances operational efficiency and reduces lifecycle costs. Contact us today to discuss how this durable, warrantied component can strengthen your machinery's performance.
