Help CenterSegmented Ring Gear Kit With Dowel Pin Alignment for Easy Installation
Product Spotlights
Related Products
-
Segmented Ring Gear in 4140 Alloy Steel for Industrial GearboxesNegotiableMOQ: 1 Piece -
Precision Slewing Ring Bearings: The Core of Rotating Heavy MachineryNegotiableMOQ: 1 Unit
-
High Precision Mill Girth Gear, Girth Gear & Split Girth Gear ManufacturerNegotiableMOQ: 1 Combo
-
Turntable Bearing for Solar Tracker Systems With Corrosion Resistance CoatingNegotiableMOQ: 1 Piece
-
Swing Bearing With Sealed Raceway for Harsh Environment OperationNegotiableMOQ: 1 Piece
As a leading manufacturer in the power transmission industry, Henan San Kuang Machinery Technology Co., Ltd. is proud to present our advanced Segmented Ring Gear Kit with Dowel Pin Alignment. Established in 2014 and operating from a modern facility spanning 10,000-30,000 square meters, we have built a strong reputation for engineering robust and reliable components for global industrial markets. This innovative gear kit is specifically designed to solve the common challenges associated with installing large-diameter ring gears, offering a smarter, faster, and more precise solution for maintenance, repair, and new assembly projects. Our commitment to quality is backed by a comprehensive management system, including ISO 9001 certification.

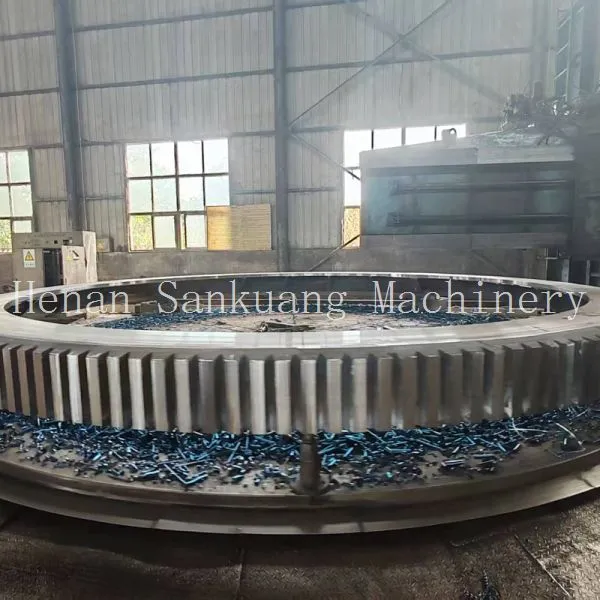

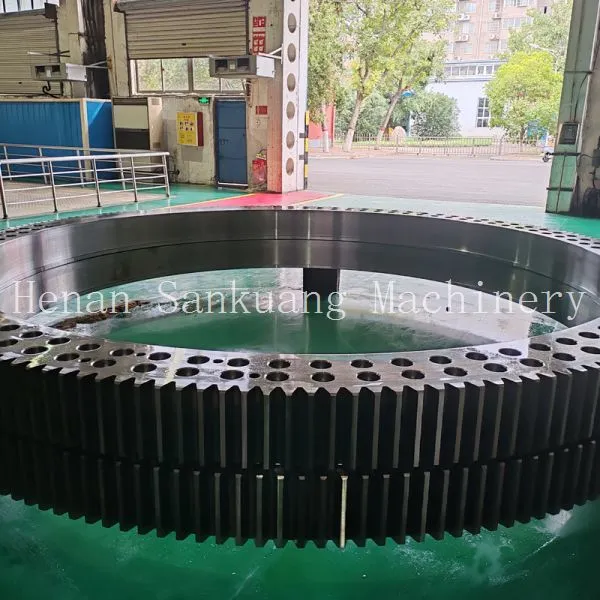

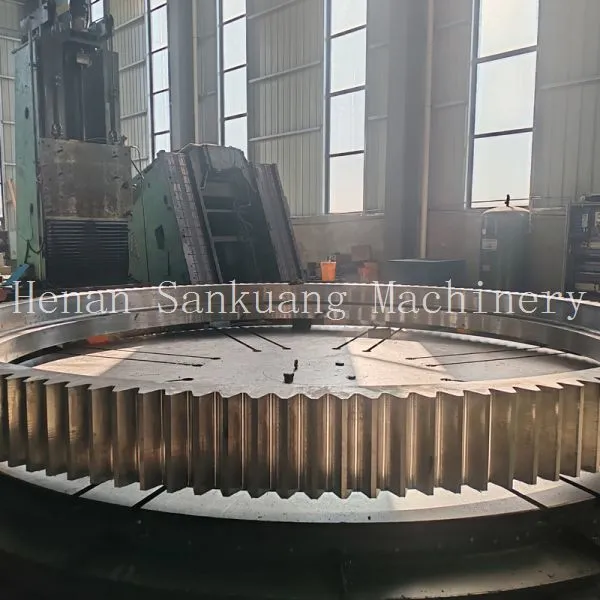

Traditional large ring gears are often cumbersome, difficult to handle, and prone to misalignment during installation, leading to increased downtime and potential operational issues. Our segmented design revolutionizes this process. The kit consists of precision-machined gear segments that are assembled on-site to form a complete ring gear. The key to its simplicity and accuracy is the integrated Dowel Pin Alignment System. This system ensures each segment mates perfectly with the next, guaranteeing proper tooth engagement and concentricity with the mating pinion or drive system. This eliminates guesswork and reduces the need for complex fixturing or extensive manual adjustment.
Core Advantages & Technical Specifications:
- Simplified Logistics & Handling: Segments are lighter and easier to transport, maneuver, and lift into position compared to a single, massive ring gear, especially in confined spaces.
- Reduced Installation Time & Labor Costs: The pre-engineered alignment system allows for rapid assembly. Dowel pins guide the segments into exact position, significantly cutting down installation time and requiring less specialized labor.
- Enhanced Accuracy & Performance: Precise alignment minimizes the risk of improper meshing, which can cause noise, vibration, premature wear, and reduced power transmission efficiency. This ensures smooth operation and extended service life for the entire drive train.
- Versatility for Repair and Retrofit: Ideal for replacing worn ring gears on existing equipment like large rotary kilns, mills, draglines, and slewing rings without the need for complete disassembly of the host machinery.
- Material and Quality: Manufactured from high-grade alloy steels, these gear segments can be supplied in various hardness grades and heat-treated states (e.g., carburized and hardened, quenched and tempered) based on application load requirements. Surface finishes are controlled to ensure optimal lubrication and wear characteristics.
The table below outlines typical specifications for our standard kits. Please note that most parameters are customizable to meet specific project needs.
| Parameter | Description / Typical Range |
|---|---|
| Module / Diametral Pitch | Customizable from 10+ module (or corresponding DP) |
| Number of Segments | Typically 2 to 8 segments per full ring |
| Alignment Method | Precision ground dowel pins and reamed holes |
| Mounting Hardware | High-strength bolts, nuts, and washers included |
| Tooth Profile | Involute profile, can be straight or helical |
| Face Width | Customizable, commonly from 100mm to 500mm+ |
For the End-User, this translates to tangible benefits: Minimized production stoppages during gear replacement, lower total cost of ownership through reduced installation complexity, and improved operational reliability. Whether you are in mining, cement production, marine, or energy generation, this gear kit provides a dependable solution for heavy-duty rotational drive applications.
Our expertise is trusted by partners across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value ranging between US$2.5 to US$5 Million. We ship globally via major ports including Shanghai, Qingdao, and Tianjin. With a dedicated team of 51-100 professionals, we ensure every Segmented Ring Gear Kit meets stringent quality checks before dispatch. Choose Henan San Kuang for a gear solution that combines innovative design with manufacturing excellence. Contact us today to discuss your specific requirements, request detailed drawings, or get a competitive quotation for your next project.
Frequently Asked Questions (FAQ):
Q1: What is the primary advantage of a segmented design over a one-piece ring gear?
A: The main advantages are ease of handling and installation. Large one-piece gears are extremely heavy and difficult to maneuver, often requiring special heavy-lift equipment. Segments are lighter, easier to transport, and can be assembled in-situ, which is particularly beneficial in retrofit or repair scenarios with limited access.
Q2: How does the dowel pin alignment ensure accuracy?
A: Each gear segment is machined with precision-located dowel pin holes. During assembly, hardened and ground dowel pins are inserted into these pre-aligned holes, physically locking the segments into their correct relative positions. This guarantees proper phasing of the gear teeth across all segments, maintaining the correct pitch circle and concentricity.
Q3: Is the joint between segments a weak point?
A: Not when properly designed and manufactured. The joint is engineered to be as strong as the gear body itself. High-strength bolts clamp the segments together securely, and the load is transferred through the precisely machined mating faces and the dowel pins, which carry the shear loads. The gear tooth load is distributed across the entire ring structure.
Q4: Can you provide gears for very specific or non-standard applications?
A: Absolutely. Customization is a core part of our service. We can manufacture segments to match existing gear profiles, create new designs based on your torque and speed requirements, and work with various materials and heat treatments. Providing detailed specifications or even a worn sample allows us to engineer a perfect replacement.
Q5: What information do you need to provide a quotation?
A: To give you an accurate quote, we typically require:
- Detailed drawings or specifications of the required gear (module/DP, number of teeth, face width, pressure angle).
- Material and hardness requirements.
- Application details (type of machinery, operating conditions).
- Required quantity.
Q6: What is the typical lead time for a custom gear kit?
A: Lead time varies based on complexity, size, and material. For standard configurations, it can range from 8 to 16 weeks. We provide a firm timeline upon review of your technical requirements and order confirmation.
Q7: Do you provide installation instructions or support?
A: Yes, comprehensive installation manuals are provided with each kit. For critical or first-time installations, on-site technical support from our engineers can be arranged to supervise the assembly process and ensure optimal results.
Q8: How do you ensure quality control?
A: Our manufacturing process is governed by a certified quality management system (ISO 9001). We perform in-process inspections during machining and final inspections using gear measuring equipment to verify tooth profile, pitch, and runout accuracy, ensuring the kit meets or exceeds the specified requirements.
