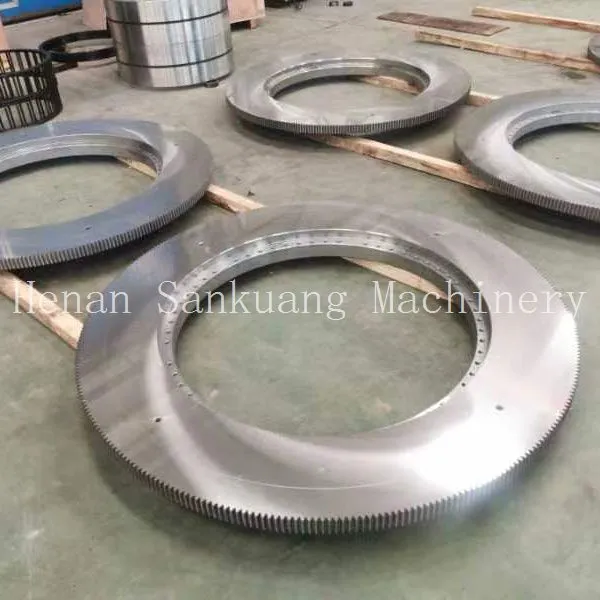

Help CenterHardened Steel Slewing Ring With Integral Gear for Heavy-Duty Turntables
Product Spotlights
Related Products
-
High Load Capacity Slewing Bearing With Mill Test Report for Crane ApplicationsNegotiableMOQ: 1 Piece -
Four-Point Contact Ball Slewing Bearing for High Moment Load ApplicationsNegotiableMOQ: 1 Piece
-
Turntable Bearing Supplied With Installation Guidance and Technical DrawingsNegotiableMOQ: 1 Piece
-
Slewing Bearing for Wind Turbine Yaw and Pitch Control SystemsNegotiableMOQ: 1 Piece
-
Large Diameter Turntable Bearing With Crossed Roller Design for Precise RotationNegotiableMOQ: 1 Piece
As a specialized manufacturer of precision-engineered rotating solutions, Henan San Kuang Machinery Technology Co., Ltd. leverages over a decade of industrial expertise to deliver robust and reliable components. Our Hardened Steel Slewing Ring with Integral Gear is engineered to be the cornerstone of your most demanding heavy-duty turntable applications, offering unparalleled strength, seamless power transmission, and long-term operational stability. We combine advanced manufacturing processes with stringent quality control to provide a component that directly enhances the performance and durability of your machinery.
This slewing ring is not merely a bearing; it is a fully integrated drive and support system designed for the harshest environments. The seamless integration of the gear directly onto the hardened steel ring body eliminates connection points that are potential failure sites, ensuring maximum torque transmission and structural integrity. At our 10,000-30,000 square meter facility, staffed by 51-100 skilled professionals, we focus on precision and repeatability, making this product a trusted choice for global markets across North America, Europe, Asia, and beyond.
Core Features and Technical Advantages:
- Monolithic Hardened Construction: Fabricated from high-grade alloy steel that undergoes specialized heat treatment processes, resulting in a core hardness that provides exceptional resistance to wear, deformation, and fatigue under extreme loads.
- Integral Gear Design: The gear teeth are precision-machined directly onto the ring's raceway, creating a single, robust unit. This design offers superior meshing accuracy with the drive pinion, reduces backlash, and enhances the overall power transmission efficiency of the turntable system.
- Optimized Load Distribution: Engineered with a deep-groove raceway geometry and precisely sized rolling elements (balls or rollers) to manage high combined loads—simultaneously supporting substantial axial loads (thrust), radial loads, and tilting moments.
- Advanced Sealing System: Equipped with multi-lip, labyrinth-style seals that effectively exclude contaminants like dust, dirt, and moisture while retaining lubricant. This significantly extends service intervals and protects the internal components in abrasive or wet conditions.
- Convenient Lubrication: Features integrated grease channels and standard lubrication fittings (zerk fittings), allowing for easy and thorough re-lubrication during maintenance without disassembly, ensuring the bearing remains in optimal condition.
- Precision Mounting and Alignment: Comes with a full pattern of accurately machined mounting holes on both the inner and outer rings, facilitating secure, flush mounting to your structure and ensuring proper alignment for smooth, vibration-free rotation.
Technical Specifications (Typical):
| Parameter | Description / Range |
| Primary Material | 42CrMo4, 50Mn or equivalent High-Strength Alloy Steel |
| Hardness (Raceway) | 55-62 HRC after induction hardening |
| Gear Type | Integral Internal or External Spur Gear |
| Gear Accuracy | Customizable to DIN/AGMA standards |
| Sealing | Synthetic Rubber Multi-Lip Seals (Standard) |
| Lubrication | Lithium-based Grease; Channels & Fittings Provided |
Benefits for Your Application: By integrating this hardened slewing ring, you achieve a more compact and reliable turntable design. The built-in gear removes the need for separate gear couplings and associated alignment issues. The hardened steel construction dramatically increases the component's service life, reducing downtime and total cost of ownership. Its high load capacity allows for the design of more powerful and stable machinery, whether for construction cranes, mining equipment, large robotic welding stations, or heavy-duty industrial rotators.
Henan San Kuang Machinery is committed to quality and reliability, underpinned by a certified management system. Our operations are guided by internationally recognized standards to ensure consistent product excellence. With an annual export value ranging between US$2.5 million and US$5 million, we have established a strong, trusted presence in key industrial markets worldwide. Our strategic location allows for efficient logistics through major ports like Shanghai, Qingdao, and Tianjin, ensuring timely delivery to your project site.
Choosing our Hardened Steel Slewing Ring with Integral Gear means partnering with a capable manufacturer dedicated to supporting your heavy-duty engineering challenges. We encourage you to contact us with your specific application requirements, including dimensions, load calculations, and environmental conditions. Our engineering team is ready to provide technical support and collaborate on a customized solution that meets your precise needs, helping you build machinery that is stronger, more efficient, and built to last.
Frequently Asked Questions (FAQ):
-
Q: What is the main advantage of an integral gear compared to a separate, bolted-on gear ring?
A: The integral gear design offers superior structural integrity and power transmission. It eliminates potential failure points at the bolt connections, ensures perfect concentricity between the gear and bearing raceway, and provides higher torque capacity and stiffness for demanding applications. -
Q: Can this slewing ring be customized for specific load requirements and dimensions?
A: Yes, customization is a core service. We can engineer slewing rings based on your required diameter, bolt circle pattern, gear module and number of teeth, and specific dynamic/static load capacities to fit your unique machinery design. -
Q: What kind of maintenance does this slewing bearing require?
A: Maintenance is straightforward. The primary requirement is periodic re-lubrication through the provided fittings. The effective sealing minimizes contamination ingress, allowing for extended service intervals under normal operating conditions. -
Q: Is the gear heat-treated along with the bearing raceways?
A> Typically, the entire ring undergoes a preliminary heat treatment for core strength. The raceways then receive localized induction hardening for maximum wear resistance, while the gear teeth may undergo a separate hardening process (like carburizing) to achieve optimal toughness and fatigue resistance for gearing applications. -
Q: How do I ensure proper installation to avoid premature failure?
A: Critical steps include ensuring the mounting surfaces on your structure are flat and machined to a suitable tolerance, using the correct grade and tightening sequence for the mounting bolts, and verifying alignment during installation. We provide detailed installation guidelines with each unit. -
Q: What applications is this product most suitable for?
A> It is ideally suited for any heavy-duty application requiring slow-speed, high-torque rotation under significant loads. Common uses include crane booms and bases, excavator superstructures, large welding positioners, wind turbine yaw systems, radar pedestals, and heavy industrial turntables. -
Q: What is the typical lead time for a standard or customized order?
A: Lead times vary based on order complexity, size, and current production schedule. Standard configurations may have shorter lead times, while fully customized large-diameter rings require more engineering and manufacturing time. Specific timelines can be provided upon request. -
Q: Do you provide technical drawings and load rating documentation?
A: Yes, comprehensive technical documentation, including 2D/3D drawings, load rating tables (for axial load, radial load, and tilting moment), and installation instructions, is available for all our products, supporting your design and integration process.
