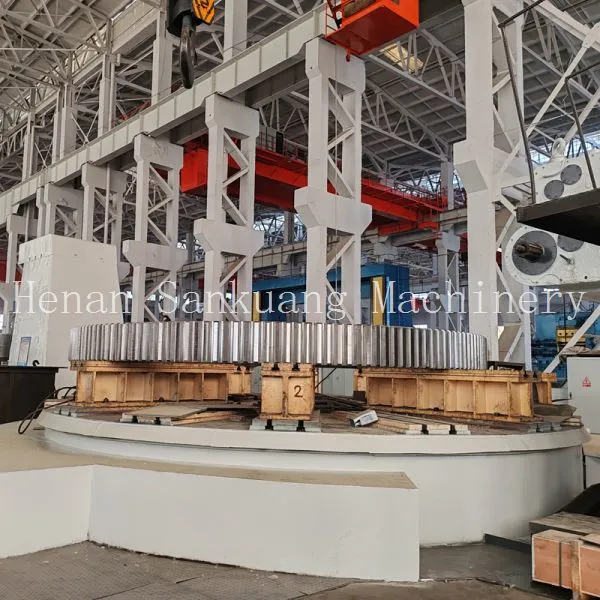

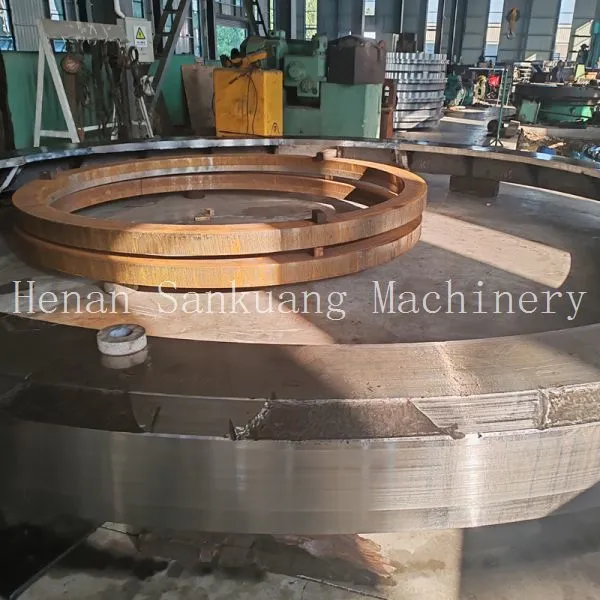

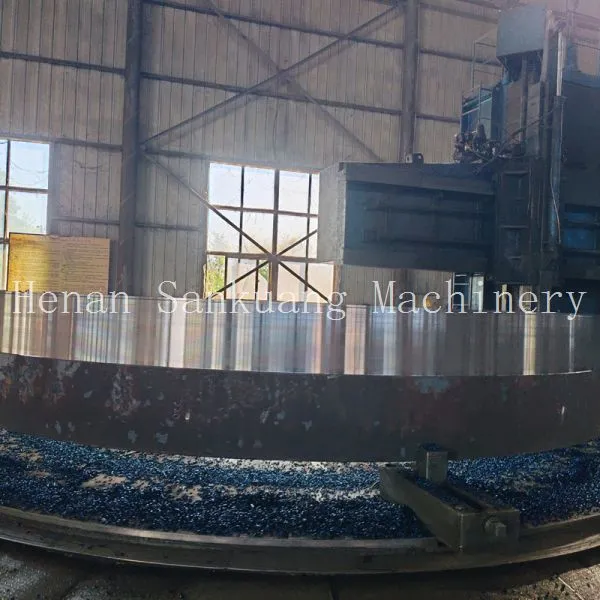

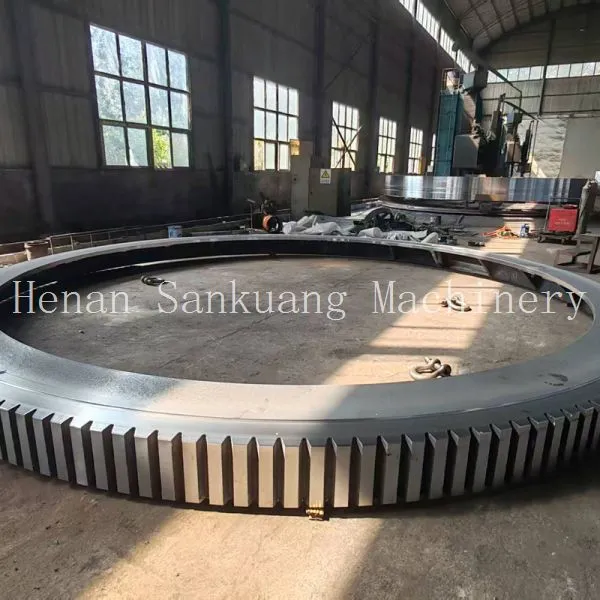

Large Diameter Divided Ring Gear Fabricated From Cast Iron
Product Spotlights
Engineered for mega-scale applications, our fabricated cast iron divided ring gear solves installation and logistics challenges with its segmented, on-site assemblable design. It offers superior durability, vibration damping, and enables cost-effective maintenance. Backed by ISO certifications and global export expertise, it's a reliable, customizable solution for heavy industries like mining and power generation.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, High-grade Cast Iron
Gear Type:
Large Diameter Divided Ring
Manufacturing Process:
Fabricated/Custom Fabrication
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Segmented Ring Gear With 12-Month Warranty Against Manufacturing DefectsNegotiableMOQ: 1 Piece -
Divided Ring Gear Supplied With Mill Test Report and Dimensional InspectionNegotiableMOQ: 1 Piece
-
Precision Split Ring Gear for Heavy-Duty Machinery With 1000 Nm Torque RatingNegotiableMOQ: 1 Piece
-
Segmented Ring Gear Kit With Dowel Pin Alignment for Easy InstallationNegotiableMOQ: 1 Piece
-
Segmented Ring Gear in 4140 Alloy Steel for Industrial GearboxesNegotiableMOQ: 1 Piece
Material
Other, High-grade Cast Iron
Gear Type
Large Diameter Divided Ring
Manufacturing Process
Fabricated/Custom Fabrication
Application
Heavy Machinery, Mining, Power Generation
Configuration
Multi-segment, Bolted Assembly
Standard/Certification
ISO 9001, ISO 14000, OHSAS 18001
Customization
Available upon request
Port of Shipment
Shanghai, Qingdao, Tianjin, Lianyungang
As a leading manufacturer specializing in heavy-duty power transmission components since 2014, Henan San Kuang Machinery Technology Co., Ltd. proudly presents our premium Large Diameter Divided Ring Gear Fabricated from Cast Iron. Engineered for demanding applications where standard one-piece gears are impractical or impossible to install, this product embodies our commitment to solving complex engineering challenges. Operating from our expansive 10,000-30,000 square meter facility in Luoyang, we combine robust materials, precision fabrication, and stringent quality control to deliver gears that ensure reliability, longevity, and optimal performance in the most severe operating environments.
Our fabricated divided ring gear is designed for large-scale industrial systems, offering a practical and efficient solution for power transmission in massive machinery. Its segmented construction allows for easier transportation, on-site assembly, and future maintenance without the need for complete system disassembly. This makes it an indispensable component for industries where downtime is costly and operational continuity is paramount.
Core Product Features & Technical Advantages:
- Superior Material Integrity: Fabricated from high-grade cast iron, chosen for its excellent vibration damping properties, good machinability, and high compressive strength. This material selection ensures the gear can withstand significant shock loads and operate smoothly under high-torque conditions.
- Innovative Divided Design: The gear is manufactured in precisely machined segments that are bolted together on-site to form a complete ring. This design overcomes the limitations imposed by transportation logistics and space constraints in final assembly areas.
- Precision Engineering & Fabrication: Each segment undergoes CNC machining to achieve exacting tolerances on tooth profile, pitch, and bore dimensions. This ensures perfect meshing with the pinion and uniform load distribution across all segments when assembled.
- Robust Assembly System: Features a heavy-duty bolting and doweling system at the joints. This design guarantees structural integrity, maintains concentricity, and prevents relative movement between segments under operational loads.
- Customizable Configuration: We offer extensive customization. Key parameters can be tailored to your specific drive system requirements, providing a perfect fit for your application.
Detailed Technical Specifications & Benefits:
| Parameter | Specification / Benefit |
| Primary Material | High-Grade Cast Iron (GGG-40/50 or equivalent) |
| Typical Outer Diameter Range | From 3 meters up to 12 meters or larger (Customizable) |
| Module / Pitch | Designed per customer drawings and application requirements |
| Number of Segments | Typically 2, 4, 6, or 8 segments based on diameter and handling |
| Tooth Hardness | Surface hardening treatments (like induction hardening) are available upon request to enhance wear resistance. |
| Key Applications | Rotary Kilns & Dryers, Ball & SAG Mills, Large-Diameter Bearings, Slewing Drives, Mixers, Draglines, Wind Turbine Yaw Drives |
Why Choose Our Large Diameter Divided Ring Gear?
- Logistical Feasibility: Solves the critical challenge of transporting and installing ultra-large gears, enabling projects in remote or space-constrained locations.
- Reduced Maintenance Cost & Downtime: Damaged sections can be replaced individually without removing the entire gear, drastically cutting maintenance time and costs.
- Proven Manufacturing Expertise: Backed by our team of 51-100 skilled professionals and a mature fabrication process refined over years of serving global markets.
- Comprehensive Quality Assurance: Our production is governed by integrated management systems including ISO 9001 for quality and ISO 14000 for environmental management, ensuring consistent product excellence.
- Global Supply Chain Reliability: With an annual export value ranging between US$2.5 Million and US$5 Million and major shipment ports like Shanghai and Qingdao, we have a proven track record of reliable delivery to North America, South America, Europe, Southeast Asia, and other key industrial regions.
In conclusion, our Large Diameter Divided Ring Gear Fabricated from Cast Iron is more than just a component; it is a strategic engineering solution designed for durability, serviceability, and performance. Supported by Henan San Kuang's solid manufacturing foundation, international certifications, and global market presence, this product offers a reliable and cost-effective answer to large-scale power transmission needs. We encourage you to contact us with your specifications or project challenges. Let our engineering team provide you with a customized solution that enhances the efficiency and reliability of your heavy machinery operations.
Frequently Asked Questions (FAQ)
-
Q: What are the main advantages of a divided ring gear over a solid one-piece gear?
A: The primary advantages are logistical and practical. A divided design allows for transportation to sites inaccessible for monolithic gears, enables assembly in confined spaces, and permits the replacement of a single damaged segment during maintenance instead of the entire gear, saving significant time and cost. -
Q: How do you ensure the concentricity and alignment of the segments when assembled on-site?
A: Precision is key. Each segment is machined to extremely tight tolerances. The assembly employs a system of machined mating faces, precision dowel pins for radial location, and high-strength bolts tightened to a specified torque sequence. This method ensures the assembled ring runs true and concentric with the central axis. -
Q: Is cast iron a suitable material for high-load gear applications?
A: Yes, high-grade cast iron, particularly nodular or ductile iron, offers an excellent combination of strength, wear resistance, and, importantly, vibration damping. This damping reduces noise and protects other drive components from shock loads, making it very suitable for large, heavy-duty applications. -
Q: Can you provide gears with hardened teeth for increased wear life?
A: Absolutely. While the base cast iron provides good wear characteristics, we can apply surface hardening treatments such as induction hardening or flame hardening to the gear teeth upon request. This significantly increases surface hardness and extends the gear's operational life in abrasive environments. -
Q: What level of customization do you offer for these gears?
A: We offer full customization. This includes outer diameter, number of teeth, module/pitch, face width, bore size, number of segments, bolt hole patterns, and material grade. We work from your drawings or can assist in designing based on your application parameters. -
Q: What industries typically use your large diameter divided ring gears?
A: Our gears are commonly found in mining (ball mills, rotary kilns), cement production, power generation (mill drives), marine (slewing systems), and heavy construction machinery where large-scale, reliable rotational drive is required. -
Q: What quality control measures and certifications are associated with your production?
A: Our manufacturing processes are certified under ISO 9001 for quality management and ISO 14000 for environmental management. We implement rigorous in-process inspections, final dimensional checks, and material certification to ensure every gear meets specified requirements. -
Q: What are your main shipping ports and delivery lead times?
A: We primarily ship from the Ports of Shanghai, Qingdao, Tianjin, and Lianyungang. Lead times vary based on the complexity and size of the gear but are typically discussed and confirmed in detail during the project quotation phase.
