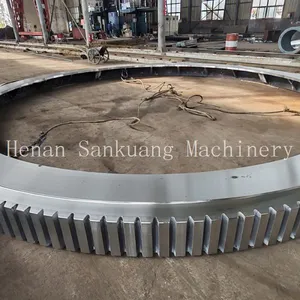

As a specialized manufacturer with over a decade of experience in precision power transmission components, Henan San Kuang Machinery Technology is proud to introduce our high-performance Precision Split Ring Gear. Engineered for the most demanding industrial applications, this gear is the solution for situations where a traditional one-piece gear cannot be installed or serviced due to spatial constraints or complex assembly requirements. Our commitment, backed by a 10,000-30,000 square meter production facility and rigorous quality management systems, ensures every gear delivers reliable power transmission under extreme loads.

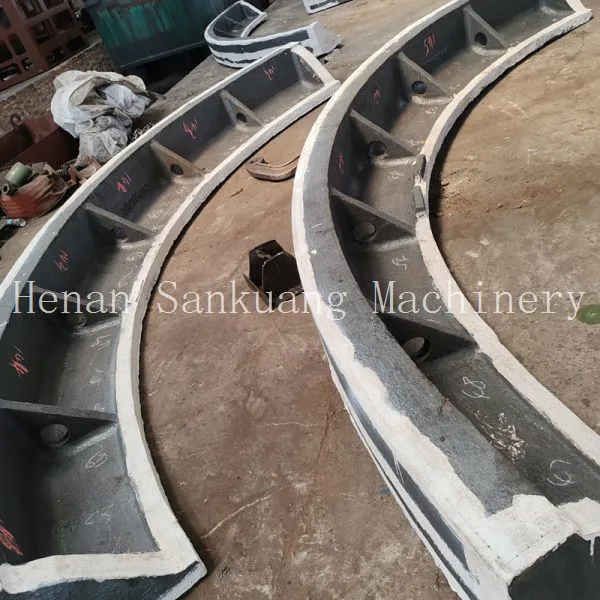

This gear's defining feature is its innovative two-piece split ring design. This construction allows for easy installation and removal around a shaft without the need to disassemble other connected components like bearings, couplings, or entire gearboxes. This translates directly into significant time and cost savings during maintenance, repair, or replacement operations, minimizing costly downtime for your heavy machinery.
The core of this product is its exceptional load-bearing capability, with a torque rating of 1000 Nm. We achieve this through a combination of premium materials and advanced manufacturing processes:
High-Grade Alloy Steel: Typically fabricated from materials like 20CrMnTi or 42CrMo, selected for their excellent strength, toughness, and wear resistance.
Precision Machining: Utilizing CNC gear hobbing, shaping, and grinding equipment to ensure accurate tooth profile, lead, and pitch, which is critical for smooth, quiet, and efficient meshing.
Advanced Heat Treatment: The gear teeth undergo processes like carburizing and quenching, creating a hard, wear-resistant surface while maintaining a tough, ductile core to withstand shock loads.
Robust Flange & Bolt Connection: The two halves are securely joined with high-tensile bolts through precision-machined flanges, ensuring the assembly performs as a single, solid unit under operational stresses.
Beyond the core construction, these gears are designed for versatility and longevity. They are suitable for various lubrication methods, including oil bath or grease, depending on the host equipment's system. The surface finish is carefully controlled to minimize friction and initial wear-in periods.
To help you evaluate the specifications, here are some typical parameters (customization is available):
| Parameter | Typical Specification / Description |
| Torque Capacity | 1000 Nm (Standard Rating) |
| Gear Design | Split Ring, Two-Piece, External Spur or Helical |
| Key Connection | Standard Keyway or Spline (Customizable) |
| Operating Environment | Industrial, Heavy-Duty, Moderate to High Shock Loads |
The advantages of choosing our Precision Split Ring Gear are clear for engineers and maintenance managers:
Reduced Maintenance Downtime: Install or replace without major disassembly, getting equipment back online faster.
Enhanced Serviceability: Ideal for field repairs or locations with limited workshop facilities.
Reliable Performance: Precision manufacturing and heat treatment ensure consistent power transmission and long service life, even at the full 1000 Nm rating.
Design Flexibility: The split design can be integrated into existing systems where a solid gear would be impractical.
Cost-Effectiveness: Saves on labor costs associated with complex disassembly and reduces inventory needs for complete sub-assemblies.
With an annual export value reaching up to US$5 Million and a presence in markets across North America, Europe, Southeast Asia, and beyond, Henan San Kuang has built a reputation for delivering reliable industrial components. Our production is guided by established quality management principles, ensuring traceability and consistency. Supported by a team of 51-100 dedicated professionals and efficient logistics from major ports like Shanghai and Qingdao, we are equipped to be your trusted partner for critical power transmission needs. This Precision Split Ring Gear represents a smart investment in the uptime and productivity of your heavy-duty machinery. Contact us today to discuss your specific application requirements, torque needs, and dimensional specifications for a tailored solution.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of a split ring gear over a standard solid gear?
A: The primary advantage is ease of installation and maintenance. It can be mounted onto or removed from a shaft without needing to dismantle other components (e.g., bearings, couplings) that are located on either side of the gear position, saving significant time and labor.
Q2: Is the 1000 Nm torque rating for continuous or peak operation?
A: The 1000 Nm rating is typically designated for continuous operational duty. The gear is designed with a safety factor to handle reasonable peak overloads that may occur in heavy-duty applications, but specific peak load requirements should be discussed during the customization process.
Q3: Can you provide gears with different numbers of teeth, modules, or pressure angles?
A: Yes, absolutely. While we offer standard configurations, a key service is customization. We can manufacture the split ring gear to your exact specifications, including tooth count, module/pitch, pressure angle (commonly 20°), and face width to ensure proper meshing with your mating gear.
Q4: How is the alignment of the two gear halves ensured?
A: Precision is paramount. The mating flanges of both halves are machined together as a set to guarantee perfect alignment. When assembled with the specified high-strength bolts torqued to the correct specification, the two halves function as a single, concentric unit with minimal runout.
Q5: What materials are commonly used, and what surface treatments are available?
A: Common materials include high-strength alloy steels like 20CrMnTi or 42CrMo. The standard surface treatment for the teeth is carburizing and quenching for hardness, followed by precision grinding. Optional treatments like black oxide coating or phosphating for corrosion resistance on non-critical surfaces are available.
Q6: Do you provide the mounting hardware (bolts, nuts, washers)?
A: Typically, yes. The gear set is usually supplied complete with the high-tensile alloy steel bolts, nuts, and washers required for assembly, all torqued to our recommended specifications to ensure joint integrity.
Q7: What industries are these gears typically used in?
A: They are suited for any industry using heavy-duty machinery. Common applications include mining equipment (crushers, conveyors), construction machinery, marine propulsion systems, large pumps and compressors, steel mill equipment, and wind turbine gearboxes.
Q8: What information do you need to provide a quotation?
A: To provide an accurate quote and design, please provide the following: required torque rating, shaft diameter, desired number of teeth and module/pitch, face width, bore type (keyway or spline details), material preference, and any applicable drawings or standards.
