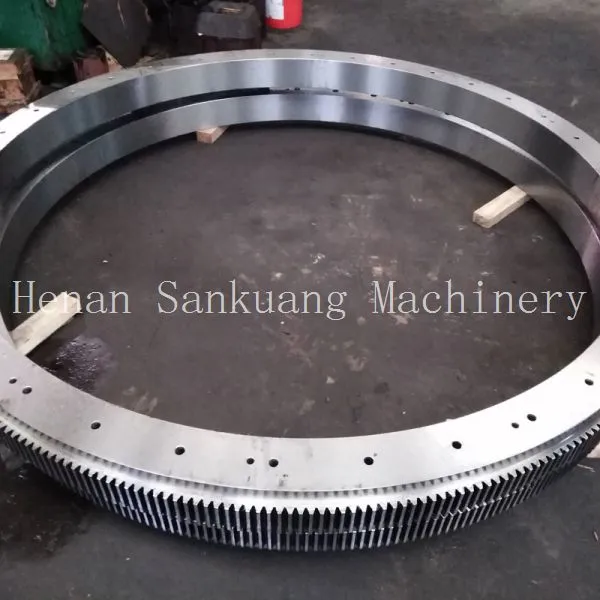

At Henan San Kuang Machinery Technology Co., Ltd., we specialize in manufacturing high-precision custom ring gears that meet the exacting requirements of industrial applications worldwide. With over a decade of experience since our establishment in 2014, we understand that reliable power transmission components are critical to your operations. Our custom ring gears come with comprehensive mill test reports and a solid warranty, providing you with documented quality assurance and peace of mind. Operating from our 10,000-30,000 square meter facility in Luoyang, China, we combine advanced manufacturing capabilities with stringent quality control to deliver components that perform consistently in demanding environments.
Our custom ring gear manufacturing process begins with a thorough analysis of your specific requirements. We work closely with clients to understand their application needs, load conditions, and operational parameters. This collaborative approach ensures that every gear we produce is optimized for its intended use, whether it's for mining equipment, construction machinery, industrial mixers, or specialized power transmission systems. The inclusion of detailed mill test reports with every shipment provides transparent documentation of material properties, heat treatment results, and dimensional accuracy verification.
Key Technical Features and Specifications:
- Material Selection Flexibility: We work with various alloy steels and specialized materials based on your requirements for strength, wear resistance, and environmental conditions.
- Precision Manufacturing: Utilizing CNC gear cutting equipment and advanced machining centers to achieve tight tolerances and excellent surface finishes.
- Comprehensive Heat Treatment: Optional processes including carburizing, induction hardening, and tempering to enhance durability and fatigue resistance.
- Quality Documentation: Each custom ring gear is accompanied by detailed mill test reports that verify material composition, mechanical properties, and processing parameters.
- Custom Design Capability: Our engineering team can develop ring gears based on your specifications or assist in optimizing existing designs for improved performance.
Technical Parameters Table:
| Parameter | Standard Range | Custom Capability |
| Outside Diameter | 200mm - 3000mm | Larger sizes available |
| Module Range | 2 - 30 | Special modules possible |
| Tooth Accuracy | AGMA 9-12 | Higher grades available |
| Material Hardness | HRC 28-62 | Based on application |
| Surface Roughness | Ra 1.6 - 3.2μm | Finer finishes possible |
The advantages of choosing our custom ring gears extend beyond the product itself. Our manufacturing process incorporates multiple quality checkpoints, from raw material inspection to final dimensional verification. This systematic approach ensures that every gear meets or exceeds your specifications. The mill test report provided with each order serves as a comprehensive quality passport, documenting critical information about the material's chemical composition, mechanical properties, and heat treatment results. This level of transparency builds trust and facilitates easier integration into your quality management systems.
Our warranty program reflects our confidence in the quality of our manufacturing processes. We stand behind our products and are committed to resolving any issues that may arise from manufacturing defects. This commitment to customer satisfaction has helped us build lasting relationships with clients across diverse markets including North America, South America, Eastern Europe, Southeast Asia, and beyond. Our experience with international shipping through major ports like Shanghai, Lianyungang, Qingdao, and Tianjin ensures smooth logistics and timely delivery.
Application-Specific Benefits:
- For Mining Equipment: Enhanced durability and wear resistance for harsh operating conditions with continuous heavy loads.
- For Construction Machinery: Reliable performance under variable loads and shock conditions with optimized tooth profiles.
- For Industrial Processing: Precision gearing for consistent power transmission in manufacturing and processing applications.
- For Renewable Energy: Custom designs for wind turbine gearboxes and other green energy applications.
- For Marine Applications: Corrosion-resistant options and specialized designs for marine environments.
With our comprehensive quality management system and multiple certifications, we maintain consistent manufacturing standards across all our products. Our team of 51-100 skilled professionals brings technical expertise to every project, ensuring that your custom ring gear requirements are met with precision and attention to detail. The annual export value of US$2.5-5 million demonstrates our capability to handle both small custom orders and large-volume production runs efficiently.
Frequently Asked Questions:
-
What information do I need to provide for a custom ring gear quote?
Please provide detailed specifications including gear type (internal/external), dimensions (OD, ID, face width), number of teeth, module or diametral pitch, pressure angle, material requirements, heat treatment needs, and application details. Drawings or samples are helpful but not mandatory. -
What is included in the mill test report?
The mill test report typically includes material chemical composition, mechanical properties (tensile strength, yield strength, elongation), heat treatment records, hardness test results, and any non-destructive testing results if applicable. Specific content can be customized based on your requirements. -
How long does it take to manufacture custom ring gears?
Lead times vary based on complexity, size, and quantity. Standard custom orders typically require 4-8 weeks from order confirmation to shipment. Rush services may be available for urgent requirements. -
What warranty do you offer on custom ring gears?
We provide a warranty against manufacturing defects for a specified period. The exact terms depend on the application and operating conditions. Warranty details are clearly outlined in our sales agreement. -
Can you work with special materials or coatings?
Yes, we have experience working with various specialty steels and can apply specific coatings or surface treatments based on your requirements. Additional processing may affect lead time and cost. -
Do you provide engineering support for gear design?
Our technical team can provide design assistance, including gear geometry optimization, material selection recommendations, and application-specific advice to ensure optimal performance. -
What quality control measures do you implement?
Our quality control includes material certification verification, in-process dimensional checks, heat treatment monitoring, final inspection of critical dimensions, and documentation of all quality-related data. -
How do you handle international shipping and documentation?
We have extensive experience shipping to global markets and handle all necessary export documentation. We work with reliable freight forwarders and can ship through multiple ports based on your preference.
Our established presence in the global market, supported by annual exports valued between US$2.5-5 million, demonstrates our capability to deliver quality custom components consistently. The trust placed in us by clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, and other regions validates our commitment to excellence. When you choose our custom ring gears, you're not just purchasing a component – you're gaining a reliable manufacturing partner with the technical expertise, quality systems, and customer focus to support your operations. Contact us today to discuss your specific requirements and discover how our custom ring gear solutions can enhance your equipment's performance and reliability.
