Help CenterCorrugated Plastic Pipe Machine for Underground Cable Conduit Manufacturing
Product Spotlights
Related Products
-
Single Wall Corrugated Pipe Extrusion LineNegotiableMOQ: 1 Set -
Double Wall Corrugated Pipe Extrusion LineNegotiableMOQ: 1 Set
-
HDPE Pipe Extrusion LineNegotiableMOQ: 1 Set
-
PVC Pipe Extrusion LineNegotiableMOQ: 1 Set
-
HDPE PE PP PPR Hose and PVC UPVC CPVC Pipe Extrusion Production LineNegotiableMOQ: 1 Set
As a dedicated manufacturer with over a decade of experience, Qingdao Yongke Machinery Co., Ltd is proud to present our advanced Corrugated Plastic Pipe Machine, engineered specifically for the high-volume production of durable underground cable conduits. Our machinery is the cornerstone for businesses aiming to supply the critical infrastructure for telecommunications, power distribution, and urban development projects worldwide. Built in our modern 10,000-30,000 square meter facility, each machine embodies our commitment to precision, reliability, and delivering tangible value by enabling our clients to produce superior, long-lasting conduit products efficiently.

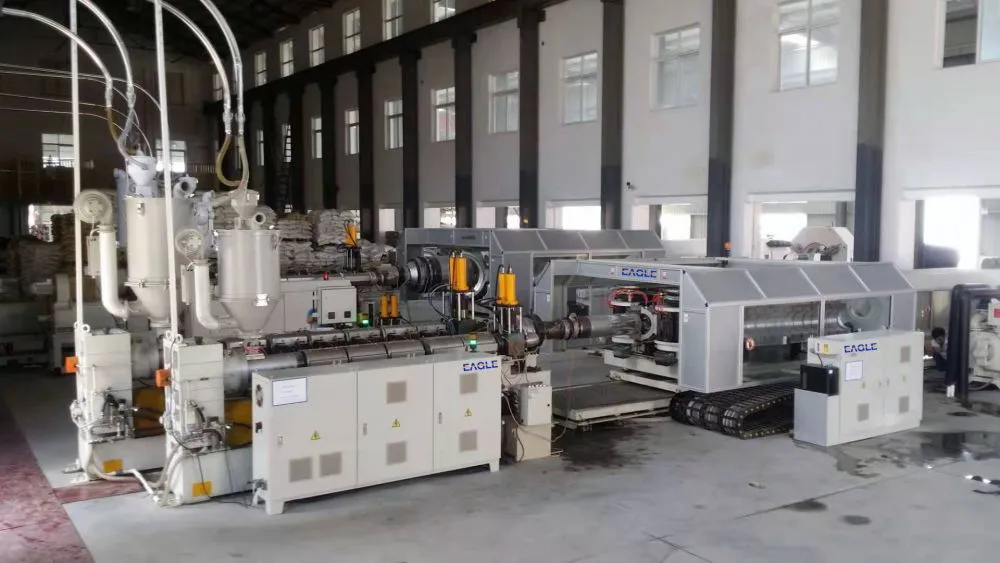

This specialized production line integrates several key components to transform raw plastic materials into finished corrugated pipes. The process begins with a high-performance extruder, equipped with a specially designed barrier screw for optimal melting and mixing of HDPE or PP materials. The molten plastic is then formed into a pipe through a precision die head before entering the corrugator, where it acquires its signature ribbed structure for enhanced ring stiffness and flexibility. A subsequent vacuum calibration and cooling system ensures precise dimensional accuracy and rapid solidification. The line concludes with a haul-off unit and a cutting device, which can be configured for fixed-length cutting or coiling, depending on the final application requirements.
Key Technical Features and Operational Advantages:
- Robust Construction & Durability: The machine frame and core components are fabricated from high-grade alloy steel, ensuring stability under continuous operation and a long service life, which translates to lower long-term ownership costs for our clients.
- Precision Corrugation Molds: We utilize CNC-machined mold sets that produce consistent, high-definition corrugations. This uniformity is critical for achieving the necessary mechanical strength (ring stiffness) required for underground burial and protection against soil pressure.
- Intelligent Control System: The entire line is managed by a user-friendly PLC with a color touch-screen HMI. This system allows for precise control over temperatures, speeds, and production parameters, ensuring repeatable quality and simplifying operation and troubleshooting.
- High Output Efficiency: The machine is designed for continuous 24/7 operation, maximizing production uptime. The efficient screw design and optimized cooling system contribute to high output rates, helping businesses meet large-scale project demands.
- Energy-Saving Design: Incorporating frequency drives on major motors and optimized heating zones, the machine minimizes energy consumption per meter of pipe produced, offering significant operational cost savings.
- Versatile Production Capability: The machine can be configured to produce a wide range of pipe diameters, typically from 25mm to 250mm, and is compatible with various polyethylene and polypropylene grades, allowing manufacturers to cater to diverse market specifications.
Detailed Technical Specifications Table:
| Parameter | Specification / Option |
|---|---|
| Suitable Raw Material | HDPE, PP, MDPE |
| Pipe Diameter Range | 25mm - 250mm (Customizable) |
| Corrugation Mold Type | Single-wall or Double-wall (Optional) |
| Main Drive Power | Customizable based on output |
| Control System | PLC with Touch Screen Interface |
| Cooling Method | Water Cooling Tower System (Standard) |
| Production Line Length | Approximately 25-35 meters (Layout dependent) |
| Voltage Requirement | 380V/415V/440V, 50Hz or 60Hz (Customizable) |
Benefits for Your Business:
- Market Competitiveness: Produce high-quality, standardized conduit that meets or exceeds industry norms, enhancing your brand reputation and ability to win bids for infrastructure projects.
- Production Scalability: The reliable and efficient design allows you to scale your output to match market demand, providing the flexibility to take on both large and small orders profitably.
- Reduced Operational Complexity: The automated control system reduces the need for highly skilled constant supervision, lowering labor costs and minimizing human error in the production process.
- Long-Term Investment Value: The durable construction and reliable performance ensure minimal downtime and maintenance costs, protecting your capital investment and ensuring consistent revenue generation.
Backed by our certifications in Quality (ISO9001), Environmental Management (ISO14000), and Occupational Health and Safety (OHSAS18001), every machine from Qingdao Yongke is a product of a stringent, systemized manufacturing process. Our annual export value of US$1-1.5 Million to diverse markets across North America, Europe, Asia, and Africa is a testament to the global trust in our equipment's performance and our company's reliability. We support every installation with comprehensive technical documentation, operator training, and accessible after-sales support. Partner with us to equip your factory with a production line that doesn't just make pipe—it builds the foundation for your business growth and success in the essential infrastructure sector. Contact us today to discuss your specific requirements and receive a tailored solution proposal.
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the pipes produced by this machine?

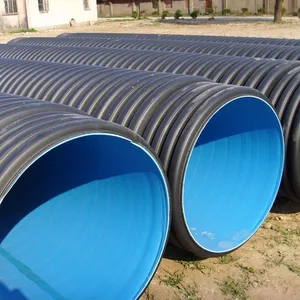

A1: The machine is specifically designed to manufacture corrugated plastic pipes used as underground conduits for protecting and routing electrical cables, fiber optic communication cables, and other utility lines. The corrugated structure provides excellent crush resistance and flexibility for burial applications.
Q2: Can this machine produce double-wall corrugated pipes?
A2: Yes, our production line can be configured to manufacture both single-wall and double-wall (structured wall) corrugated pipes. The double-wall option provides an exceptionally smooth inner surface for easier cable pulling along with enhanced strength. Please specify your requirement during inquiry.
Q3: What is the typical lead time for delivery and installation?
A3: The lead time depends on the machine configuration and order queue. Generally, for a standard model, delivery can be arranged within 30-45 days after order confirmation. We provide detailed installation manuals and can arrange engineers for on-site commissioning and training if required.
Q4: How is the machine's energy consumption?
A4: The machine is designed with energy efficiency in mind. Key components like the extruder drive and cooling pumps use frequency conversion technology to match power consumption with actual load, significantly reducing electricity usage compared to older designs. Specific consumption data is available based on your target output and pipe specifications.
Q5: What kind of after-sales support do you provide?
A5: We offer comprehensive after-sales support, including a detailed operation manual, video guides, remote online technical support via video call, and a supply of commonly needed spare parts. For critical issues, we can dispatch our service engineers subject to mutual agreement.
Q6: Is operator training included?
A6> Yes, we provide basic operational training. This can be conducted at our factory for your technicians or at your site during machine commissioning. The training covers machine operation, routine maintenance, basic troubleshooting, and safety procedures.
Q7: Can the machine run different colored materials?
A7> Absolutely. The machine can process natural or pre-colored plastic granules. For frequent color changes, we can recommend and optionally supply a purging compound to facilitate a cleaner and faster transition between colors, minimizing material waste.
Q8: What are the key factors in choosing the right pipe diameter range?
A8> The choice depends on your target market and application. Common diameters for telecom conduits are smaller (e.g., 25-110mm), while power cable conduits may require larger sizes (e.g., 160-250mm). We advise discussing your primary end-use applications with our engineers to select the most versatile and cost-effective configuration for your business plan.
