HDPE Pipe Extrusion Line
EAGLE supply the HDPE pipe extrusion line from OD 20mm to 2600mm with high performance and low power consumption designed extruder and PO die head with inner die cooling system. The full machine is controlled by PLC system, all parameter and speed can be set on HMI and all speed can be synchronized by PLC system.
Model |
Diameter range mm |
Max output KG/H |
Length |
EPO-63 |
Ø20-Ø63 |
500 |
55 |
EPO-250 |
Ø75-Ø250 |
700 |
60 |
EPO-315 |
Ø110-Ø315 |
800 |
60 |
EPO-630 |
Ø315-Ø630 |
1200 |
65 |
EPO-800 |
Ø400-Ø800 |
1500 |
66 |
EPO-1200 |
Ø630-Ø1200 |
1800 |
70 |
EPO-1600 |
Ø800-Ø1600 |
2000 |
82 |
EPO-2000 |
Ø1200-Ø2000 |
2200 |
82 |
|
|
Core Features & Technical Advantages:
Space-Efficient Design: The entire line is configured for optimal use of floor space, perfect for workshops with limited area.
Robust Extrusion System: Features a precision-engineered screw and barrel assembly designed for optimal melting and homogenization of HDPE material, ensuring stable extrusion and high-quality pipe walls.
Advanced Temperature Control: Equipped with multiple independent heating zones along the barrel and die, managed by a PID temperature controller. This allows for precise thermal profile management, critical for processing HDPE and preventing material degradation.
Versatile Sizing & Cooling: The line includes a vacuum sizing tank and a water cooling bath to accurately calibrate the pipe diameter and solidify the molten plastic efficiently, ensuring perfect roundness and dimensional stability.

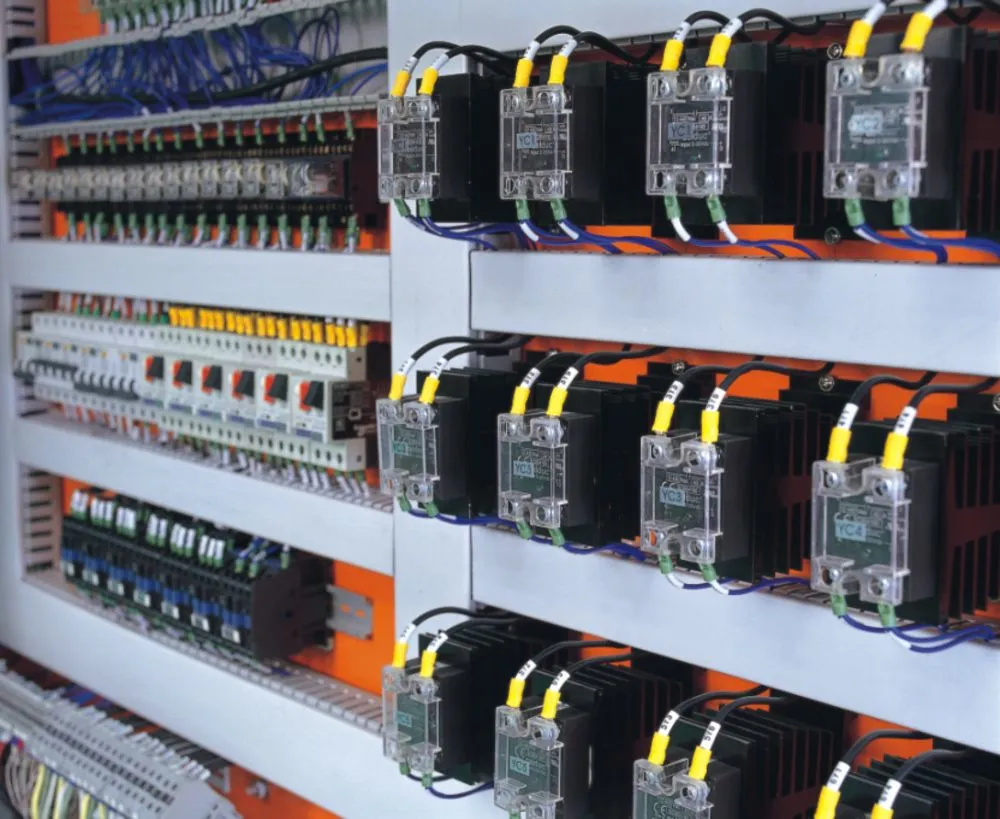

Intelligent Control Hub: Centered around a user-friendly PLC with a color touchscreen. This system allows for centralized control of speed, temperature, and haul-off, simplifying operation and enabling repeatable production settings.

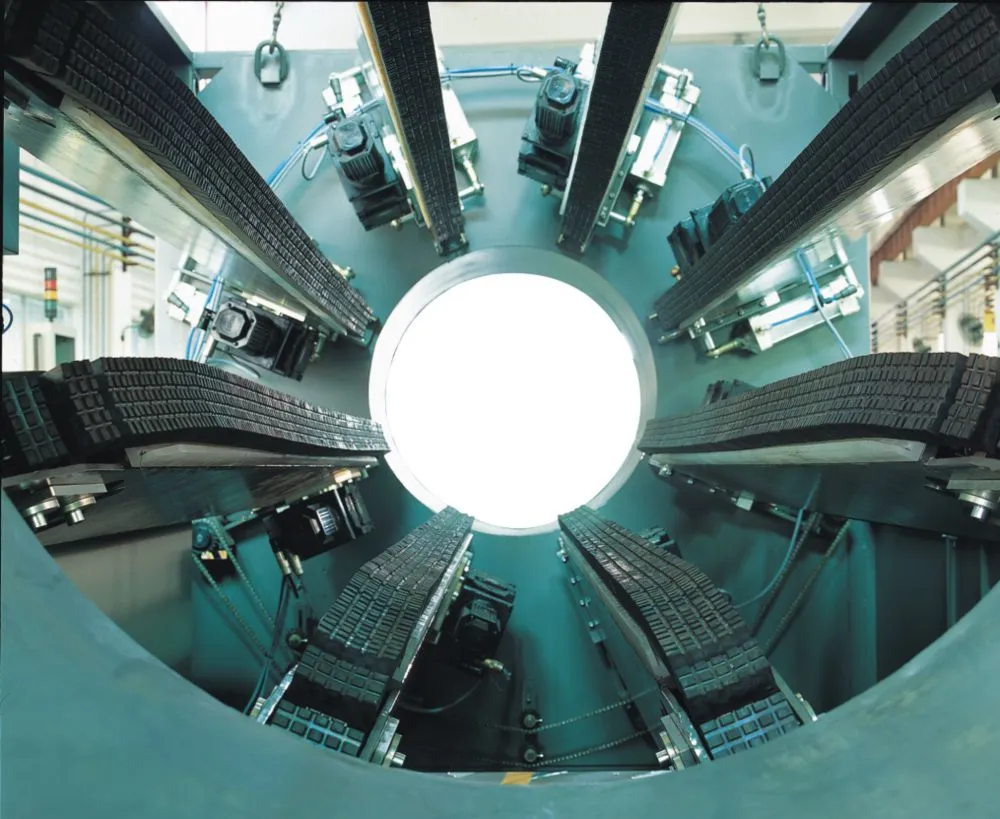

Precision Haul-Off & Cutting: Incorporates a caterpillar haul-off unit with adjustable grip force to pull the pipe steadily. It is paired with an automatic traveling cutter or saw that delivers clean, square cuts to the desired length.
Benefits for Your Business:
Lower Barrier to Entry: Requires significantly lower capital investment and operational space compared to large industrial lines.
Operational Flexibility: Ideal for producing small batches, custom diameters, or for R&D purposes with quick changeover capabilities.
Reduced Operating Costs: Energy-efficient drives and heating systems help minimize electricity consumption.
Consistent Quality Output: Stable extrusion and precise control systems ensure production of pipes with uniform wall thickness and good mechanical properties.
Easy to Operate & Maintain: The intuitive control system reduces training time, and the robust construction simplifies maintenance.
Backed by over a decade of manufacturing expertise and adherence to management standards, Qingdao Yongke Machinery serves a global clientele across continents including North America, Europe, Asia, and Africa. Our annual export value reflects the trust international partners place in our equipment. This compact extrusion line embodies our commitment to delivering practical, reliable, and accessible machinery. It is designed not just as a machine, but as a business partner for your small-scale production ventures. We encourage you to contact us to discuss how this line can be configured to meet your specific HDPE pipe production goals and to explore the competitive advantage it can bring to your operations.
Frequently Asked Questions (FAQ):
Q1: What is the typical production capacity of this compact line?
A1: The output is suitable for small to medium-scale production. The exact capacity (kg/hour) depends on the chosen screw diameter, the specific HDPE grade, and the target pipe dimensions. We provide estimated output ranges during the configuration process.
Q2: Can this line process recycled HDPE material?
A2: Yes, it is capable of processing both virgin and certain grades of recycled HDPE. We recommend discussing your specific material feedstock with our technical team to ensure optimal screw design and process parameters.
Q3: How difficult is it to change the pipe diameter being produced?
A3: Changing the diameter requires changing the extrusion die and the sizing sleeve in the vacuum tank. For operators familiar with the process, this changeover can be accomplished within a reasonable timeframe. The line is designed to facilitate these adjustments.
Q4: What kind of after-sales support do you provide?
A4: We offer comprehensive support including detailed operation manuals, installation guidance (via video call or documentation), a standard warranty period, and ready supply of spare parts. Technical consultation is available throughout the machine's lifecycle.
Q5: Is training for our operators included?
A5: Yes, we provide operational training. This can be conducted at our factory for visiting clients or arranged via remote video sessions and detailed instructional materials to ensure your team can run the line effectively.
Q6: What are the main power requirements for this line?
A6: The line typically operates on a standard industrial 3-phase power supply. The exact voltage (e.g., 380V/50Hz or 440V/60Hz) and total connected power load will be specified based on the final configuration and are confirmed before shipment.
Q7: How is the machine packaged for export shipment?
A7: We export from the Port of Qingdao. The machine is professionally packaged in a seaworthy wooden crate suitable for container loading, with all components securely fastened and protected against moisture and transit damage.
Q8: Can the line be customized for specific features?
A8: Absolutely. While we offer a standard compact model, many aspects such as the control system brand, haul-off length, cutter type, and specific safety features can be customized or offered as optional upgrades to suit your precise needs.
