HDPE Pipe Extrusion Line

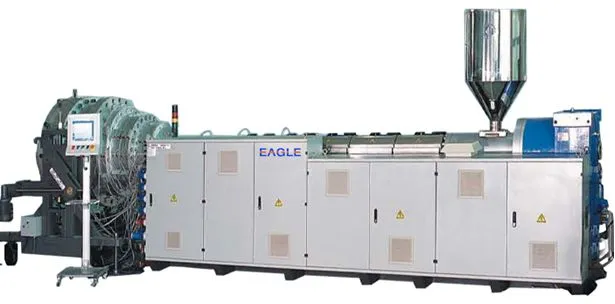

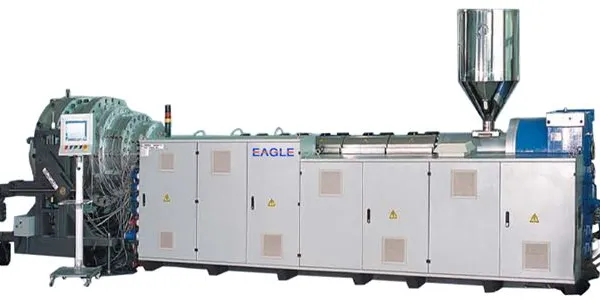

EAGLE supply the HDPE pipe extrusion line from OD 20mm to 2600mm with high performance and low power consumption designed extruder and PO die head with inner die cooling system. The full machine is controlled by PLC system, all parameter and speed can be set on HMI and all speed can be synchronized by PLC system.
Model |
Diameter range mm |
Max output KG/H |
Length |
EPO-63 |
Ø20-Ø63 |
500 |
55 |
EPO-250 |
Ø75-Ø250 |
700 |
60 |
EPO-315 |
Ø110-Ø315 |
800 |
60 |
EPO-630 |
Ø315-Ø630 |
1200 |
65 |
EPO-800 |
Ø400-Ø800 |
1500 |
66 |
EPO-1200 |
Ø630-Ø1200 |
1800 |
70 |
EPO-1600 |
Ø800-Ø1600 |
2000 |
82 |
EPO-2000 |
Ø1200-Ø2000 |
2200 |
82 |
The core of our production line is its high-performance extrusion system, built for durability and consistent output. Key features and technical specifications include:
High-Efficiency Extruder: Equipped with a specially designed screw and barrel for optimal plasticizing and mixing of HDPE/PE materials, ensuring stable melt pressure and temperature for uniform pipe quality.

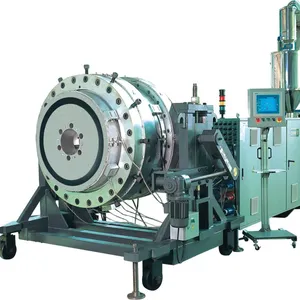

Precision Die Head: Custom-engineered die heads provide excellent concentricity and wall thickness control, which is crucial for meeting stringent international standards for pressure pipes.
Advanced Cooling & Sizing: The line features a vacuum sizing tank combined with a spray cooling system. This setup ensures precise external diameter calibration and rapid, uniform cooling to minimize internal stresses and prevent deformation.

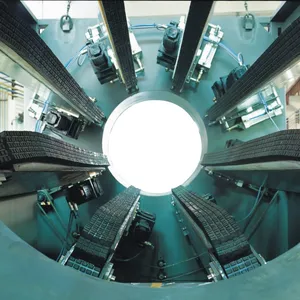

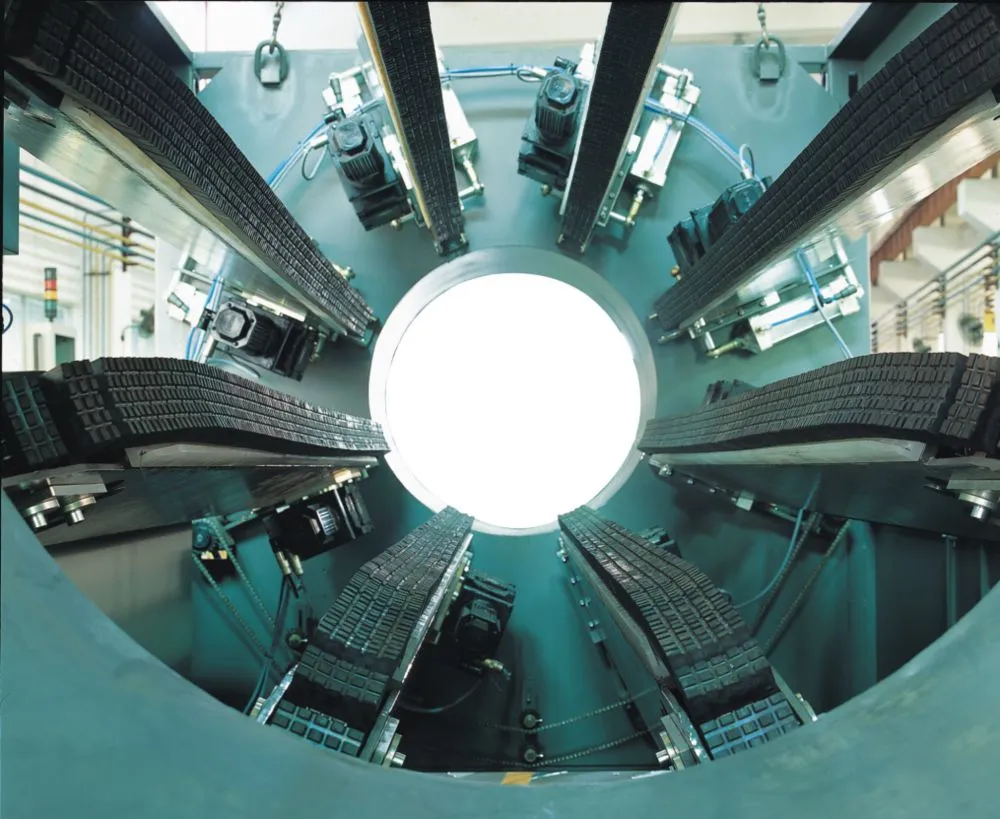

Robust Haul-Off & Cutting: A heavy-duty caterpillar haul-off unit provides constant, non-slip traction. It is paired with an automatic traveling saw or planetary cutter for clean, burr-free cuts at precise lengths, enabling seamless continuous production.

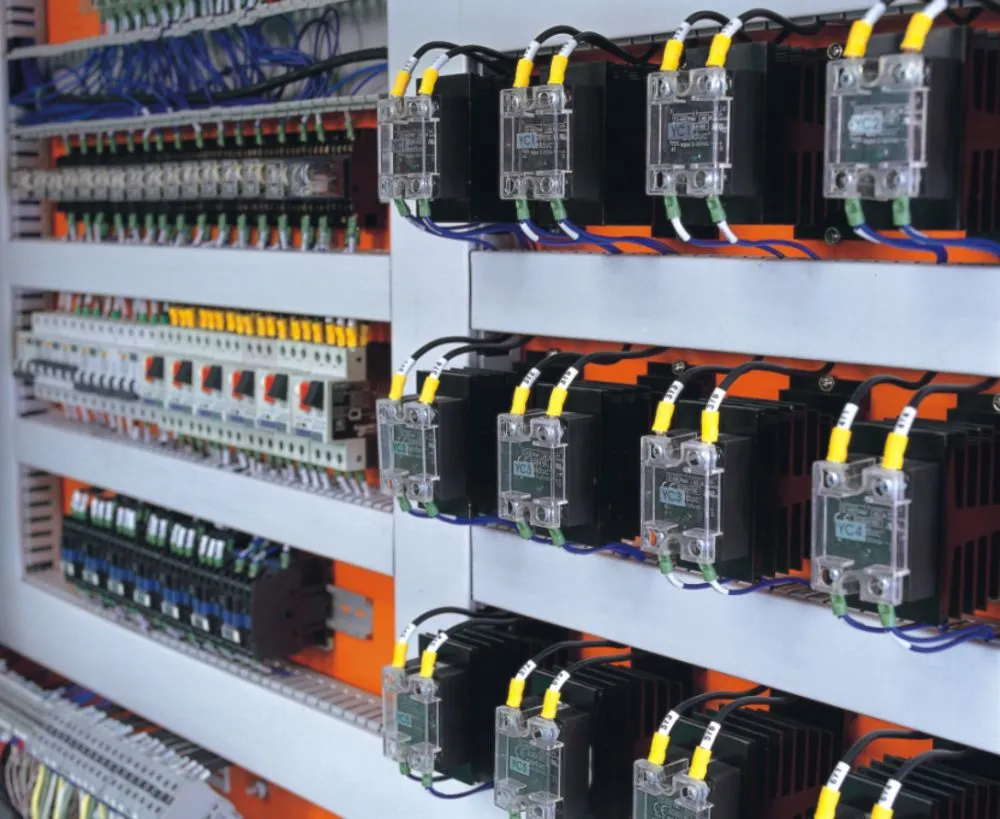

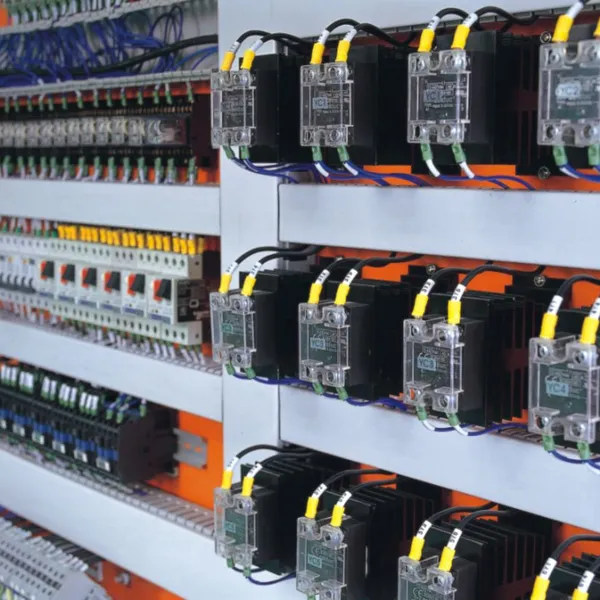

Intelligent Control System: A centralized PLC with a color touch-screen HMI allows for easy monitoring and adjustment of all critical parameters like temperature, speed, and pressure, enhancing operational simplicity and repeatability.
For clients, the benefits are clear and substantial:
Maximized Productivity: The high-output design significantly increases your production capacity, allowing you to fulfill large orders and reduce lead times.
Superior Product Quality: Consistent processing parameters result in pipes with excellent mechanical properties, smooth surfaces, and reliable dimensional accuracy.
Operational Efficiency: The automated components reduce manual labor, minimize material waste, and lower overall energy consumption per unit of output.
Investment Security: Built with high-quality components and backed by our manufacturing expertise, the line offers long service life and low maintenance requirements, protecting your capital investment.
Trust in Qingdao Yongke Machinery is built on a solid foundation. Established in 2010, our company holds ISO9001, ISO14000, and OHSAS18001 certifications, reflecting our commitment to quality, environmental management, and workplace safety. Our products are trusted by clients across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value reaching up to US$1.5 Million. Sourced directly from our factory in Qingdao, you gain access to professional engineering support, reliable after-sales service, and a production line designed to be a cornerstone of your business growth for years to come. Contact us today to discuss your specific requirements and receive a tailored solution.
Frequently Asked Questions (FAQ)
What is the maximum output capacity of this production line?
The output is highly configurable based on the pipe diameter, wall thickness, and material grade. We design the line components—extruder size, cooling length, haul-off power—to meet your specific target output, which can range from several hundred kilograms to multiple tons per hour.Can this machine produce pipes for potable water and gas applications?
Yes, absolutely. The precision temperature control, stable extrusion process, and excellent cooling ensure the produced pipes have the consistent quality and mechanical properties required for critical applications like potable water and gas distribution, subject to using the correct raw materials.What kind of after-sales service and support do you provide?
We provide comprehensive support including installation guidance (on-site or remote), operator training, a detailed operation manual, and a warranty on parts. Our technical team is available for ongoing consultation to ensure your line operates smoothly.Is the control system easy to operate for new technicians?
Yes. The PLC-based control system features an intuitive touch-screen interface with pre-set recipes and real-time monitoring. We also include thorough training to ensure your team can confidently operate and perform basic troubleshooting.How energy-efficient is this extrusion line?
The line is designed with efficiency in mind. Features like high-torque, low-RPM screw drives, optimized heating zones, and efficient cooling circuits work together to reduce specific energy consumption, helping to lower your operational costs.Can the line be customized for different pipe sizes?
Yes, customization is a key strength. The line is modular. We can configure the extruder, die head, sizing sleeve, vacuum tank, and haul-off/cutter to suit your target pipe diameter range, whether for small-diameter irrigation pipes or large-diameter drainage mains.What is the lead time for delivery and installation?
Lead time varies based on the line's complexity and configuration. Generally, it ranges from 60 to 90 days after order confirmation. We provide a detailed project schedule and keep you updated throughout the manufacturing and shipping process.Do you provide raw material recommendations or testing?
While we supply the machinery, we can provide general guidelines on suitable HDPE/PE material grades based on your application. For specific material testing and compatibility, we recommend consulting with your resin supplier.
