KJ-1150XPSExtruded Polystyrene Board Fresh-keeping Box Production LineIntroduction
I. Product Composition and Structural Features
Thisproduction line mainly consists of three parts: Horizontal slotting machine (rectangular slots), pneumatic feeder, vertical slotting machine (special-shaped slots), dust collector, and electrical control system.
Functionalfeatures are as follows:

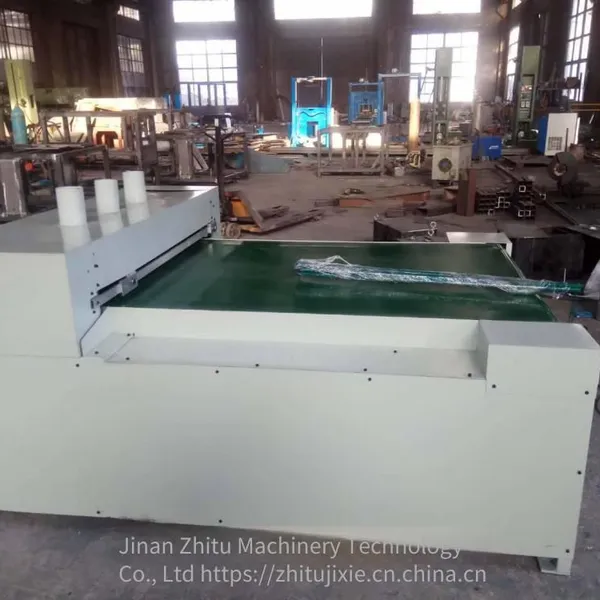

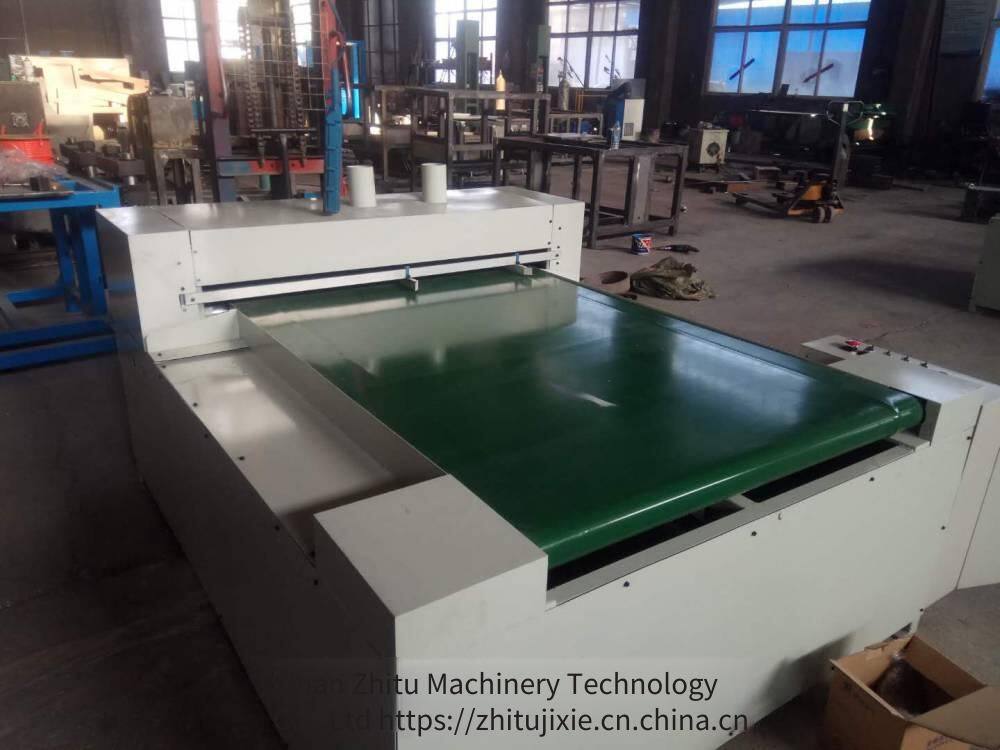

1.The horizontal slotting machine is composed of a conveyor belt, pressure rollers, guides, a dust collector, slotting cutters, and a spindle. It mainly cuts two rectangular slots, and the distance between the two slots can be adjusted according to the box size.
1.1The conveyor belt and the pressure rollers are driven synchronously by a reduction motor, and the running speed is steplessly adjusted by a frequency converter. The pressure rollers can be adjusted at any time according to the thickness of the sheet material.
1.2 The spindle tool can adjust the slotting depth according to the thickness of the sheet metal, and the operating speed can be infinitely adjusted according to the smoothness after slotting.
1.3 The guide is to ensure that the sheet metal can run smoothly perpendicular to the slotting spindle according to the preset slotting pitch.
1.4The main function of the dust collector is to collect the powder after the sheet metal slotting and cutting into the storage bag of the dust collector.
2.Pneumatic feeder; this machine is composed of a conveyor belt, a pneumatic mechanism, and a photoelectric sensor.
2.1 The conveyor belt and the conveying mechanism of the horizontal slotting machine share the same transmission mechanism, which is connected by sprockets and chains.
2.2 The pneumatic mechanism consists of a pressure adjustment gauge, a solenoid valve, a manual valve, a cylinder, and a slide rail. Its main function is to handle the sheet metal after horizontal slotting.
