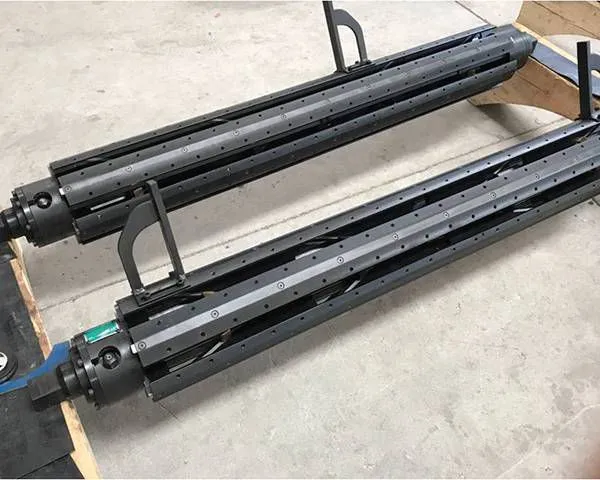

RX-1 ton transformer winding machine, with precise winding and mature technology.

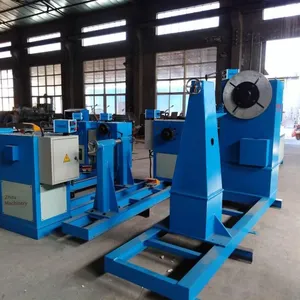

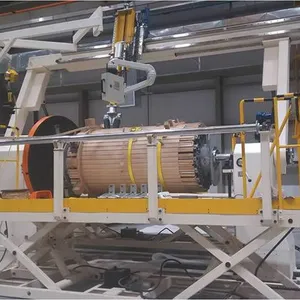

The production place of power transformer winding machines. Jinan Zhitu Machinery Technology Co., Ltd. in Shandong supplies coil winding equipment.

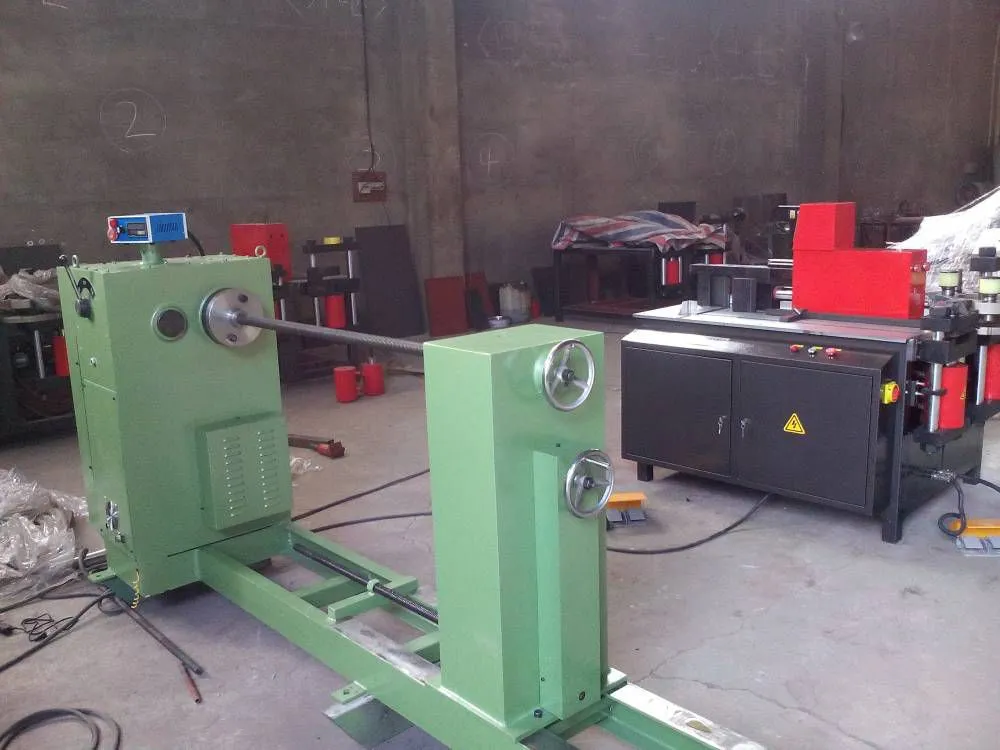

TransformerHorizontal winding machine
I. Product composition and features
This equipment consists of a main chassis, guide rails, a rear tailstock, and electrical control.
The structural features are as follows:
1. The mechanical transmission part of this winding machine is located inside the headstock, and the transmission part is installed on the operation side of the headstock. The motor speed is controlled by a frequency converter, and it is transmitted to the gearbox through a pulley and a V-belt to reduce the speed and increase the torque to the required standard.
2、This winding machineusesa frequency converter to achieve stepless speed regulation, with smooth start-up and constant torque.It is convenient to adjust and set the number of turns, and it will stop automatically.
3、This machine is equipped with an automatic braking device to prevent reverse rotation when the winding stops.
4. This machine can preset the number of coil turns and automatically control the forward and reverse rotation; The counting system consists of a human-machine interface (touch screen), PLC, and encoder. The winding parameters can be easily set through the touch screen.
5. The button station is centrally controlled. The start and stop of the spindle are controlled by a foot switch or buttons.
II. Technical Parameters
|
Model Parameters |
RX1T Model Winding Machine |
RX3T Model Winding Machine |
Center Height |
850mm |
1000mm |
Chuckdiameter |
Φ200 mm |
Φ400 mm |
Tailstock adjustment range |
500-1500 mm |
1000-2000 mm |
Torque |
1400N.M |
5000N.M |
Motor power |
4KW |
7.5 KW |
Speed range |
0~100r/min |
0~63 r/min |
Overall dimensions |
2800*690*1300 |
3600*690*1500 |
Weighing capacity |
1000KG |
3000 KG |
Three、Main Accessories
Name |
Origin |
Motor |
Anhui Xinbei |
Reducer |
Jiangsu Guomao |
Touch Screen, PLC |
Joint Venture, Panasonic |
Encoder |
Joint Venture, Omron |
Inverter |
Joint Venture |
Low-voltage Electrical Appliance |
Joint venture, Schneider |
4、Product Structure
1. The faceplate plays the role of fixing the winding mold and transmitting torque.
2. The main chassis is composed of a box body, a transmission system, a gearbox, a motor, etc. The combined speed regulation system of the main machine consists of stepped speed change and stepless speed regulation of the variable-frequency motor, making the startup process of the entire equipment smooth and the braking reliable. The motor torque is decelerated and amplified by the headstock to provide the winding torque.
3. Guide rail and tailstock part
The tailstock is a separate part from the main chassis. It is mainly composed of a tailstock, a live center, a guide rail, etc. The tailstock can be manually moved axially on the guide rail of the base to meet the needs of winding molds of different lengths. By rotating the handwheel, the live center can be extended or retracted, which facilitates the up-and-down movement of the mold and improves the strength. The locking handle can lock the center roller to tightly press the winding mold and support its weight.
4. Electrical control system
The electrical control system consists of an electrical control cabinet, a frequency converter, a touch screen,PLC, Encoder, Foot switch and other electrical appliances, etc. The rotation speed of the spindle is controlled by the frequency converter, and the spindle speed and number of turns can be displayed. The counter can count forward and backward, and has the functions of power-off memory and automatic stop after setting the number of turns. The entire winding process is operated with the foot switch.
V. After-sales service
Quality guarantee period; The main machine is guaranteed for one year. During the warranty period, if the equipment has its own quality problems (excluding human factors), the supplier will provide a solution within4 hours after receiving the buyer's call,24 hours to solve it; if24 hours cannot solve it, the supplier is responsible for sending someone to the site for handling and solving(Note: only applicable in China). After the warranty period, Jinan Zhitu Machinery Technology Co., Ltd. will continue to provide follow-up services for the equipment. If parts need to be replaced, only the relevant cost will be charged.
VI. Delivery time and transportation,
