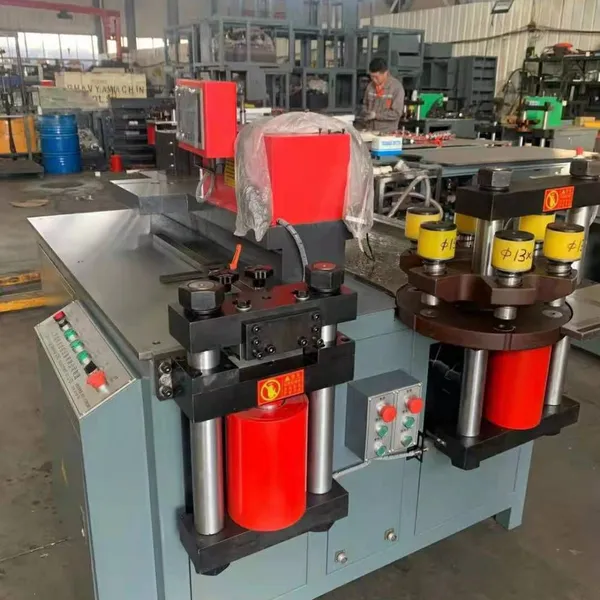

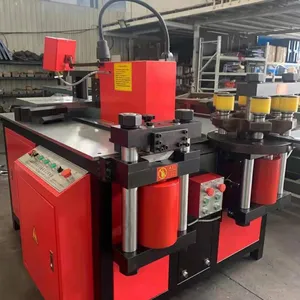

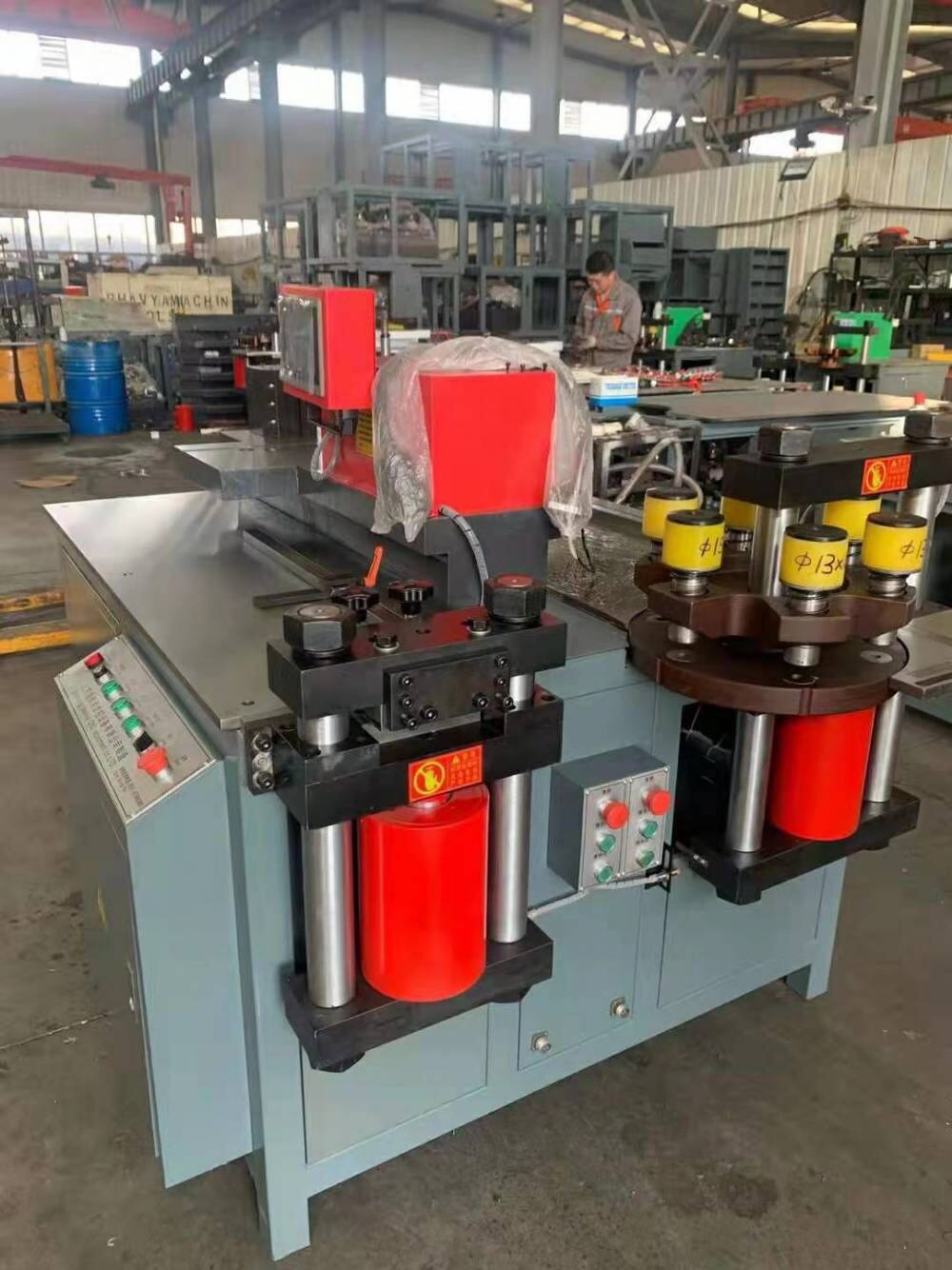

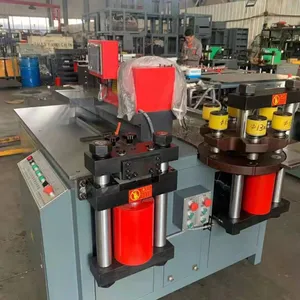

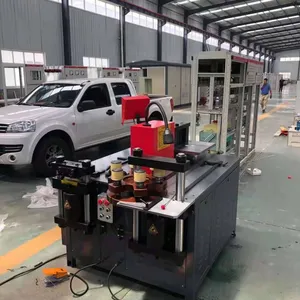

[ZTMX-30] Turret-type Copper Busbar Processing Machine
I.Product Introduction

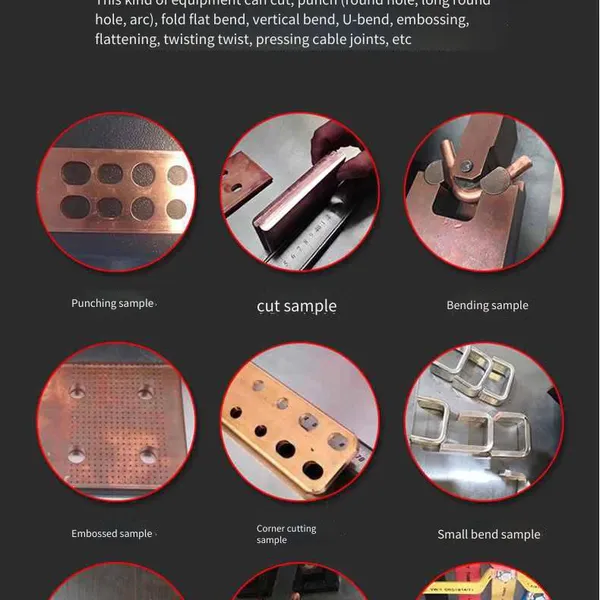

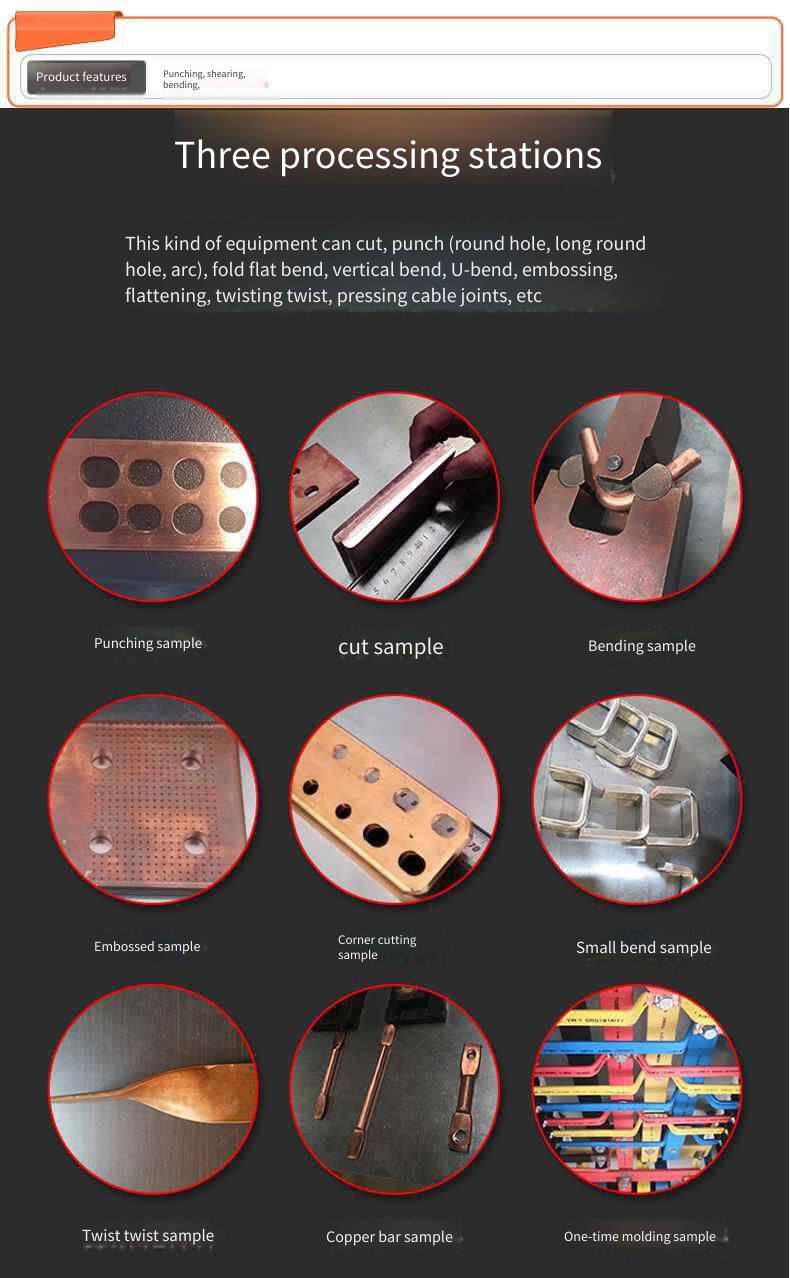

This series of busbar processing machines has three units: punching, shearing, and bending. The main function is to process copper and aluminum busbars of different specifications. By simply using the corresponding processing units, it is convenient and fast to perform various processes on copper and aluminum busbars, such as shearing, punching (round holes, oblong holes), flat bending, vertical bending, embossing, flattening, etc.
II. Main Features:
1. The shearing unit uses a common single-knife shearing method, with a smooth shear edge, saving materials.
2. The punching unit uses a six-position integral turntable, which ensures the alignment of the upper and lower dies and improves the concentricity of the dies.
3. The bending unit uses a closed bending method, making it more uniform during flat bending and embossing, and prolonging the service life.
4. The bending unit uses vertical processing, which is safer and more convenient during processing.
5. The three working stations of the machine can work simultaneously, greatly improving work efficiency.
6. The hydraulic oil tank is welded with thick steel plates and phosphated, so that the hydraulic oil will not deteriorate after long-term use.
7. The punching, shearing, and folding processing units all adopt a double-foot pedal control system. In the automatic control mode, even if the upper and lower limits of each station are exceeded, it will never affect the user's production and use, thereby reducing the failure rate of the equipment and eliminating potential safety hazards such as pump jamming and oil pipe rupture that occurred in previous equipment. In the manual control mode, the forward and backward operations of each station are simple and convenient, thus improving production efficiency.
8. This model of machine is divided into two types: ordinary and CNC. The CNC system isPanasonic of Japan or Siemens.
Parameters |
ZTMX-30DB |
ZTMX-30SB |
ZTMX-50DB |
ZTMX-50SB |
Punching force (KN) |
300 |
300 |
500 |
500 |
Processing range |
φ4.3-φ25 |
φ4.3-φ25 |
φ4.3-φ32 |
φ4.3-φ32 |
Punching thickness (mm) |
12 |
12 |
16 |
16 |
Shearing thickness (mm) |
12 |
12 |
16 |
16 |
Shearing width (mm) |
150 |
150 |
250 |
250 |
Bending force (KN) |
300 |
300 |
500 |
500 |
Bending width (mm) |
150 |
150 |
250 |
250 |
Flat bending thickness (mm) |
16 |
16 |
16 |
16 |
Vertical bending processing size (mm) |
110*12 |
110*12 |
120*12 |
120*12 |
Main motor power KW |
4 |
4 (3 pieces) |
5.5 |
5.5 (3 pieces) |
Machine weight T |
1.3 |
1.5 |
1.8 |
2 |
Can cutting, punching and folding work simultaneously? |
No |
Yes |
No |
Yes |
III.Parameter comparison table of ZTMX series copper bar processing machines
