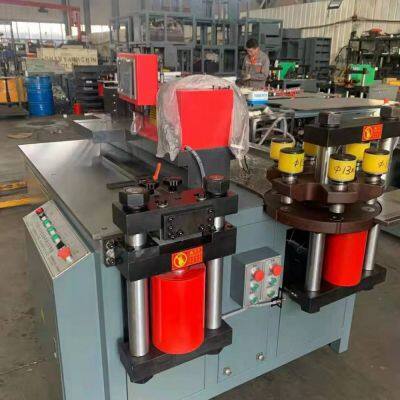

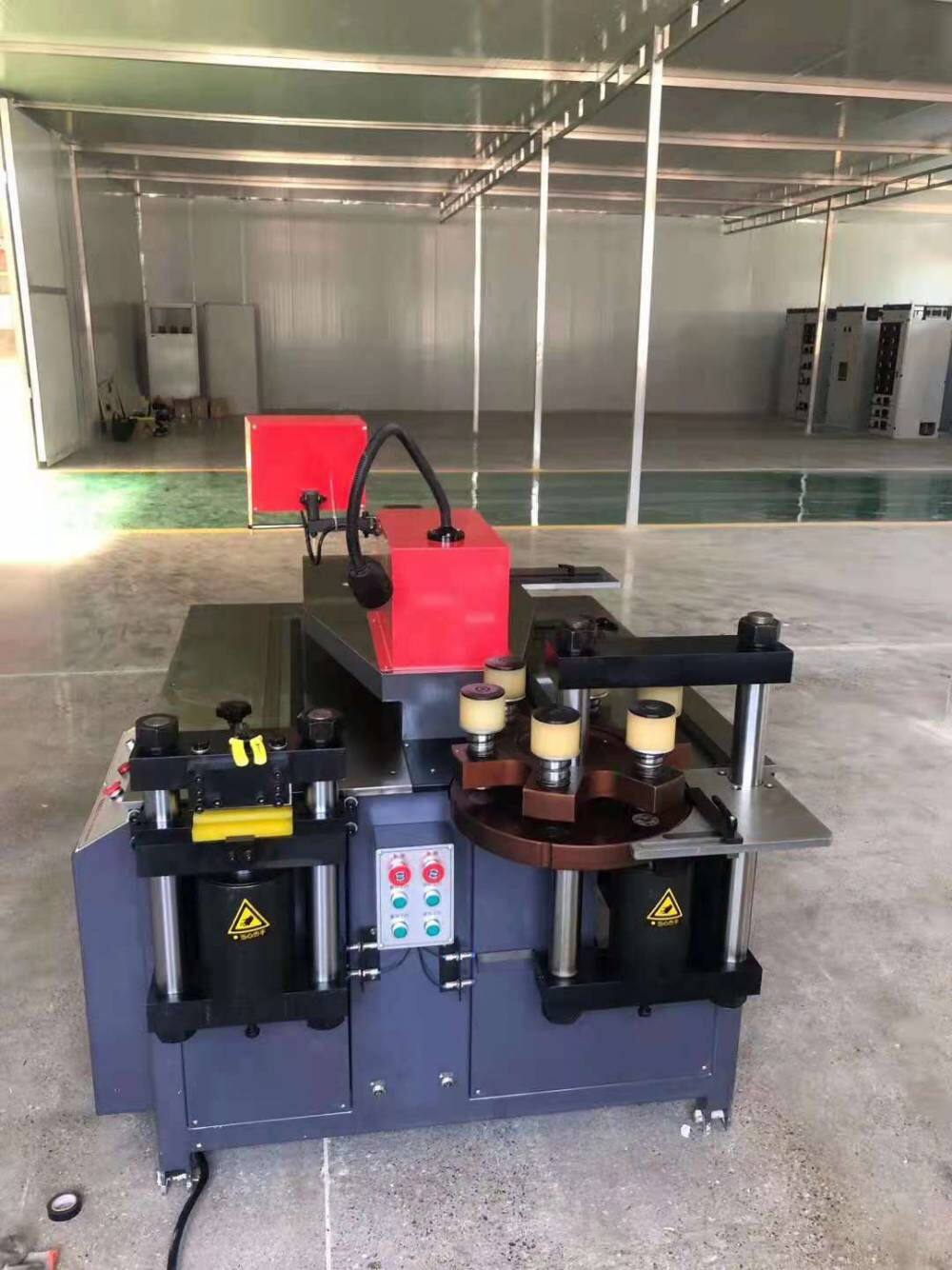

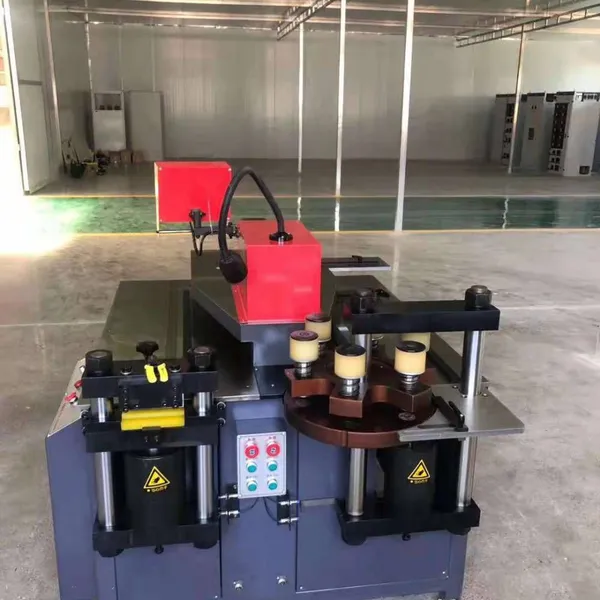

[ZTMX-30] Turret-type Copper Busbar Processing Machine
I.Product Introduction
This series of busbar processing machines has three units: punching, shearing, and bending. The main function is to process copper and aluminum busbars of different specifications. With the corresponding processing units, it is convenient and fast to shear, punch (round holes, oblong holes), bend flat, bend vertically, emboss, flatten, and perform various other types of processing on copper and aluminum busbars.
II. Main Features:
1. The shearing unit adopts a general single-knife shearing method, with a smooth shear edge, saving materials.

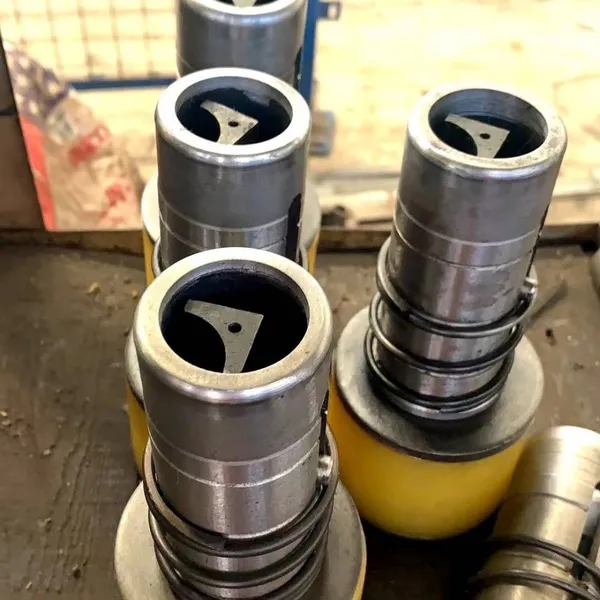

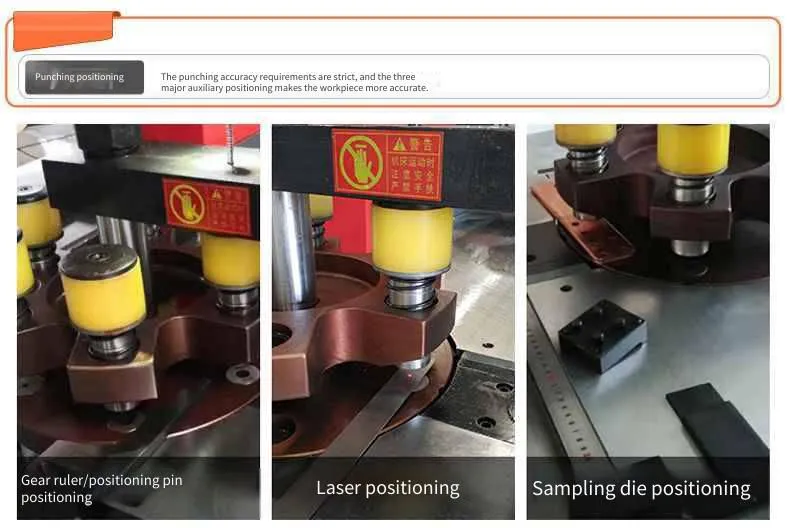

2. The punching unit uses a six-position integral turntable, ensuring the alignment of the upper and lower dies and improving the concentricity of the dies.
3. The bending unit uses a closed bending method, making it more uniform when processing flat bends and embossing, and extending its service life.
4. The bending unit uses vertical processing, which is safer and more convenient during processing.
5. The three working stations of the machine can work simultaneously, greatly improving work efficiency.
6. The hydraulic oil tank is welded with thick steel plates and phosphated, so that the hydraulic oil will not deteriorate after long-term use.
7. The punching, shearing, and bending processing units all adopt a double-foot control system. In the automatic control mode, even if the upper and lower limits of each station are exceeded, it will never affect the user's production and use, thus reducing the failure rate of the equipment and eliminating potential safety hazards such as pump jamming and oil pipe rupture that occurred in previous equipment. In the manual control mode, the forward and backward operations of each station are simple and convenient, thus improving production efficiency.
8. This model of machine is divided into two types: ordinary type and CNC type. The CNC system isPanasonic of Japan or Siemens.
Parameters |
ZTMX-30DB |
ZTMX-30SB |
ZTMX-50DB |
ZTMX-50SB |
Punching force (KN) |
300 |
300 |
500
500
Processing range
φ4.3-φ25
φ4.3-φ25
φ4.3-φ32
φ4.3-φ32
Punching thickness (mm)
12
12
16
16
Shearing thickness (mm)
12
12
16
16
Shearing width (mm)
150
150
250
250
Bending force (KN)
300
300
500
500
Bending width (mm)
150
150
250
250
Flat bending thickness (mm)
16
16
16
16
Vertical bending processing size (mm)
110*12
110*12
120*12
120*12
Main motor power KW
4
4 (3 pieces)
5.5
5.5 (3 pieces)
Machine weight T
1.3
1.5
1.8
2
Can cutting, punching and bending work simultaneously?
No
Yes
No
Yes
