X5040 Detailed English Description (No Chinese Characters)

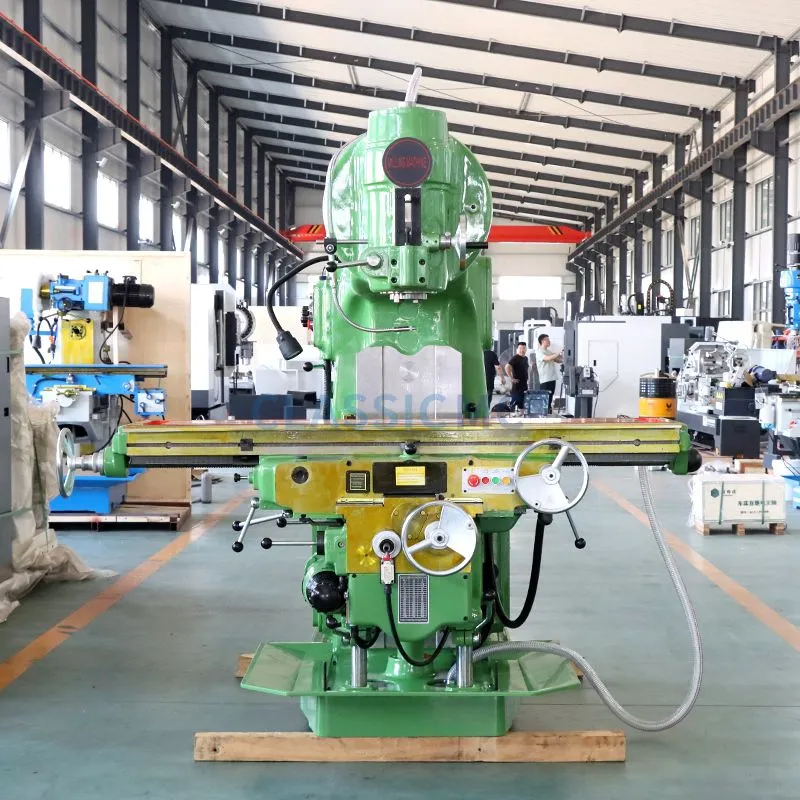

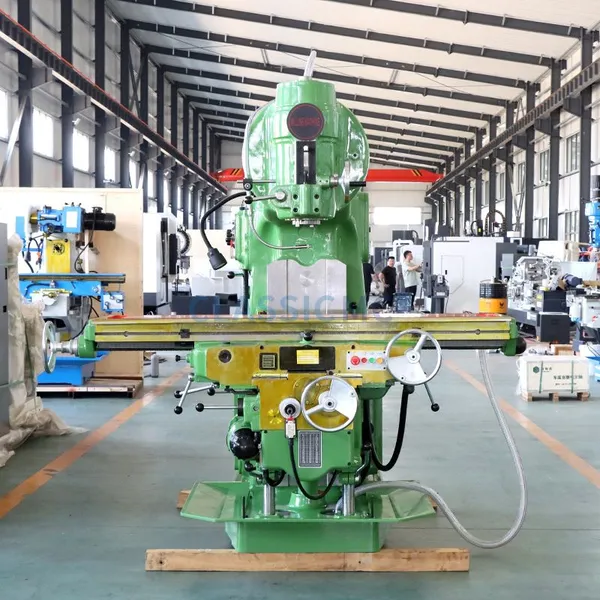

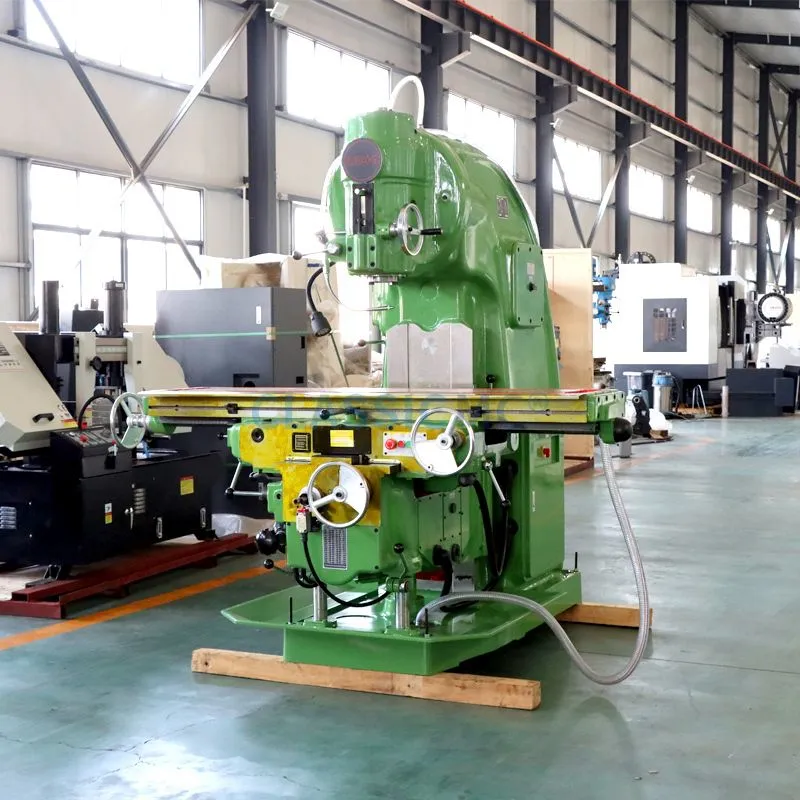

1. Machine Overview
X5040 is a heavy-duty industrial vertical milling machine with enhanced rigidity and enlarged processing stroke. It adopts thick one-piece cast iron structure and heavy-duty gear transmission system, featuring larger worktable, higher load-bearing capacity and stronger cutting power. This machine is capable of milling, drilling, boring, grooving and contour machining for carbon steel, alloy steel, cast iron and other metal materials. It is widely used in machinery manufacturing, mold processing, heavy equipment parts, automobile industry and batch production workshops.
2. Main Structural Features
High-strength Cast Iron Body: The base, column and worktable are made of high-grade cast iron with natural aging treatment. The thickened wall structure effectively absorbs cutting vibration and prevents long-term deformation, ensuring stable mechanical performance under heavy load.
High-torque Spindle System: The vertical spindle is made of high-quality alloy steel after multiple heat treatment processes. Equipped with heavy-duty precision bearings, the spindle runs steadily with strong torsion output. Multiple gear speed stages meet the processing demands of rough milling and high-precision finish milling.

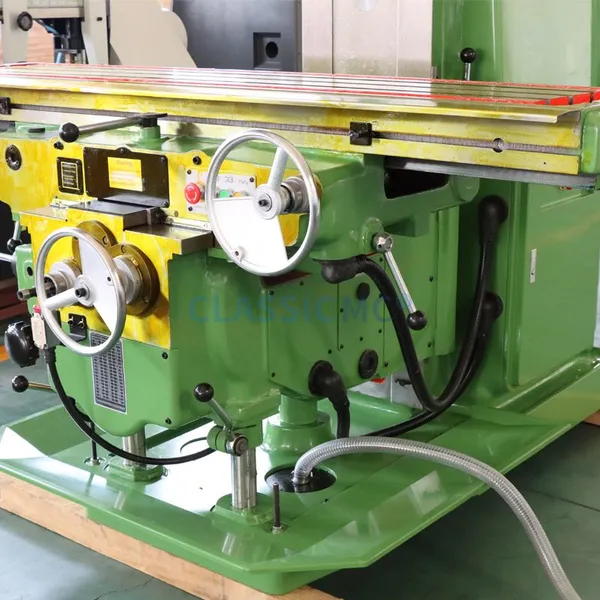

Dual Electric & Manual Feeding: X, Y, Z three-axis adopts electric automatic feeding and manual fine-tuning feeding structure. The feeding movement is smooth and sensitive, which is convenient for precise positioning and complex manual adjustment of workpieces.

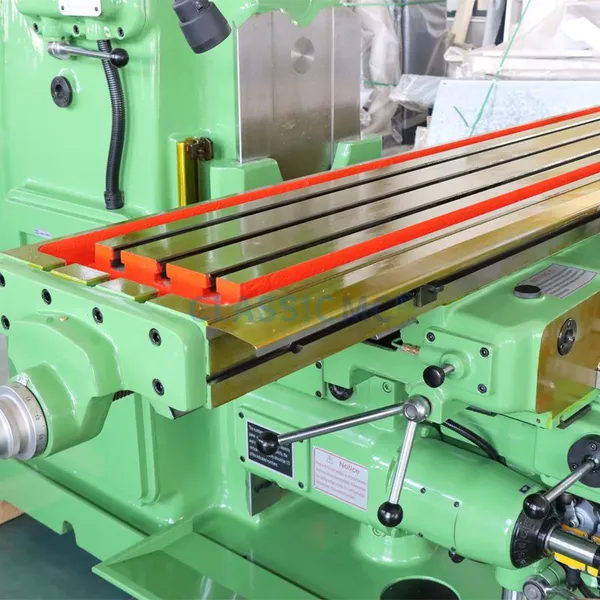

Enlarged Heavy-duty Worktable: The widened and lengthened worktable has excellent bearing capacity and standard T-slot distribution. It is easy to install various fixtures and clamps. The table can realize longitudinal, transverse and vertical displacement to complete multi-directional machining tasks.
3. Technical Parameters
Item |
Specification |
Table Size |
1600×400mm |
X/Y/Z Travel |
900×315×450mm |
Spindle Taper |
NT40 |
Spindle Speed Range |
30-1500r/min |
Main Motor Power |
7.5kW |
Table T-slot Size |
18mm |
Spindle Distance To Table |
45-500mm |
Feeding Speed |
23.5-1180mm/min |
Positioning Accuracy |
≤0.02mm |
Repeat Positioning Accuracy |
≤0.01mm |
4. Transmission System
This vertical milling machine adopts full hard tooth surface gear transmission. All gears are made of high-strength alloy steel through quenching and tempering treatment. The transmission runs with low noise, high rigidity and stable power output. Mechanical gear shifting is simple and reliable, fully adapting to long-term heavy cutting industrial working conditions.
5. Standard Configuration
Vertical Milling Head Standard NT40 Spindle Coolant circulation system Electric & Manual Feeding System Mechanical speed change gearbox Complete protective cover
6. Optional Accessories
Horizontal milling attachment Rotary working table Digital readout system Vise and clamping fixtures Coolant gun Special cutting tools
7. Product Advantages
Larger worktable and processing stroke Heavy cast iron frame for ultra stability Strong spindle torque for heavy cutting Durable gear transmission with long service life Simple operation and low maintenance cost High cost performance for industrial heavy processing
