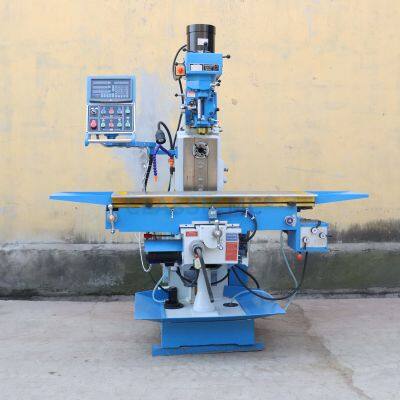

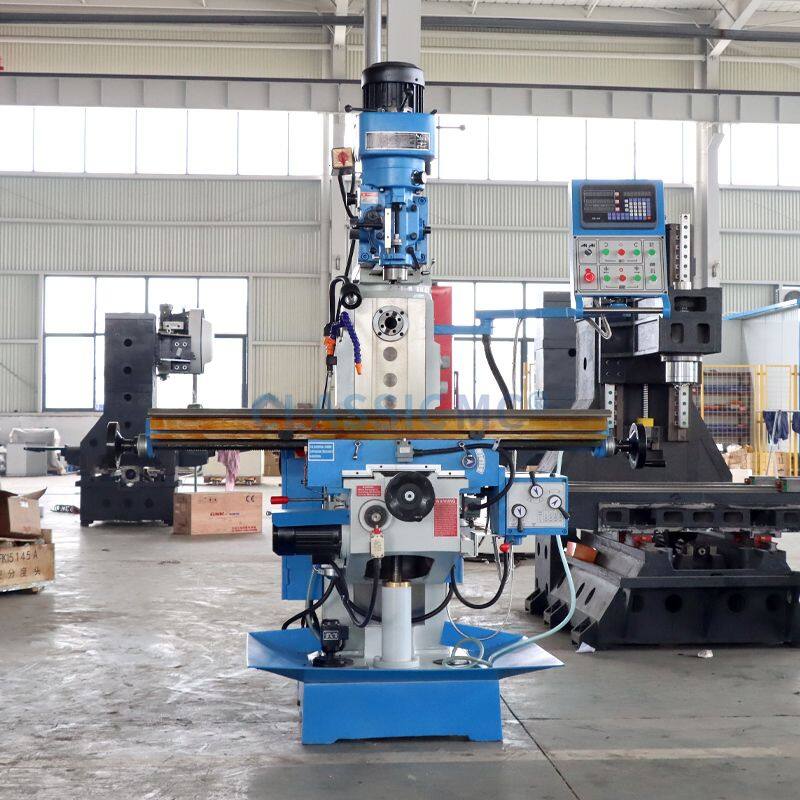

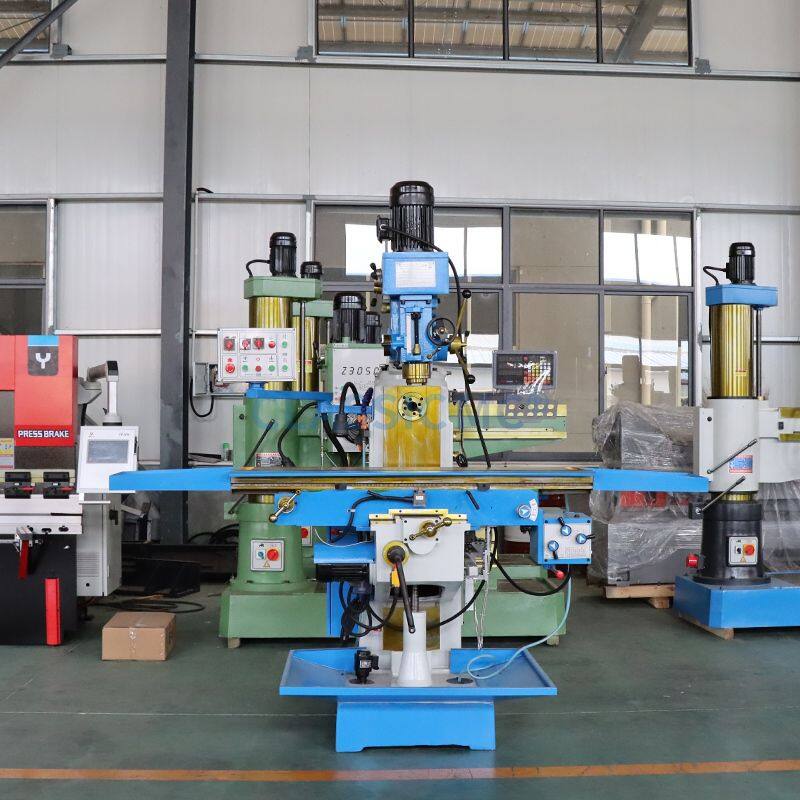

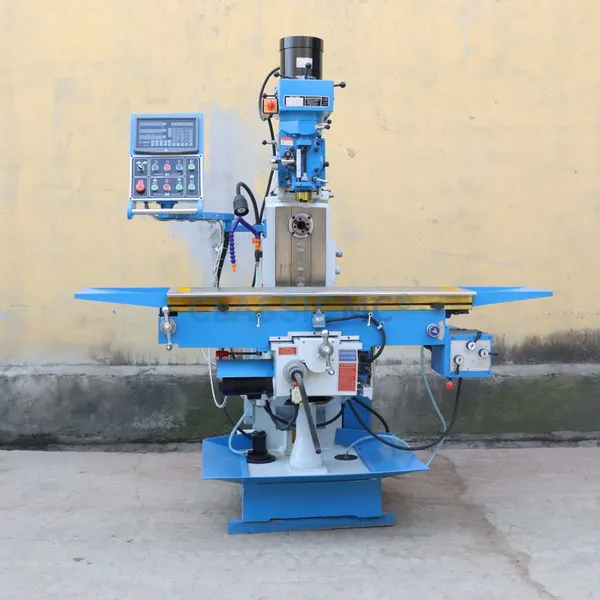

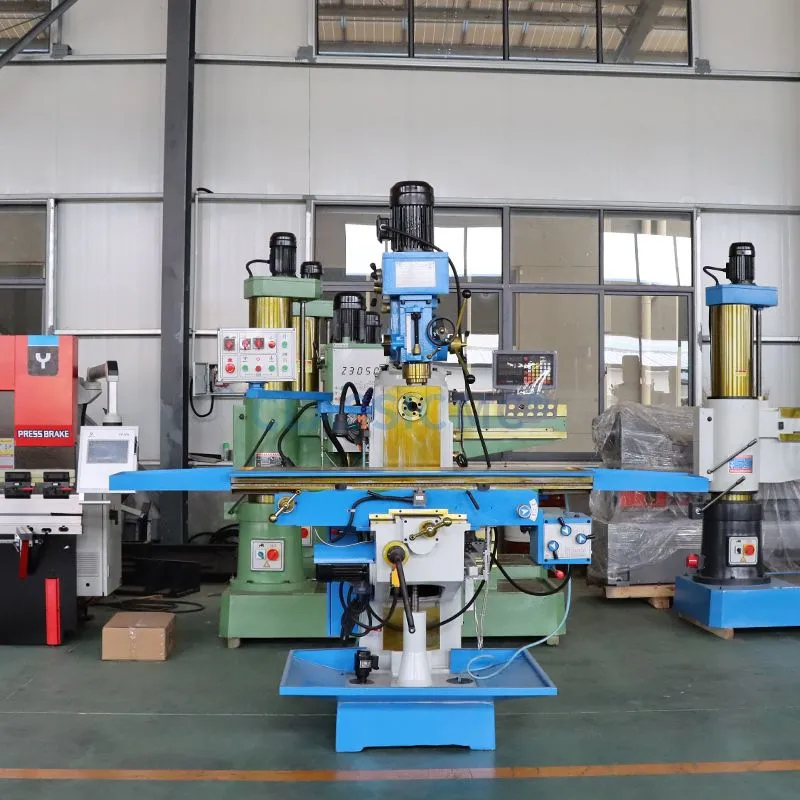

X6332 Universal Turret Milling Machine
The X6332 is a multi-functional vertical & horizontal turret milling machine designed for precision metalworking. It integrates drilling, milling, boring, tapping, and slotting capabilities, widely applied in mold making, mechanical processing, instrumentation, and small-batch production environments.
1. Core Structure & rigidity
High-Strength Casting: Base, column, table, and saddle adopt high-grade cast iron with artificial aging treatment, ensuring long-term stability, vibration resistance, and precision retention.
Rectangular Guideways: Longitudinal (X-axis) guideways are hardened via ultra-audio quenching, delivering high wear resistance, large contact area, and robust rigidity.
360° Rotatable Ram: The turret ram swivels 360° horizontally and moves back/forth, enabling multi-angle machining without re-clamping the workpiece.

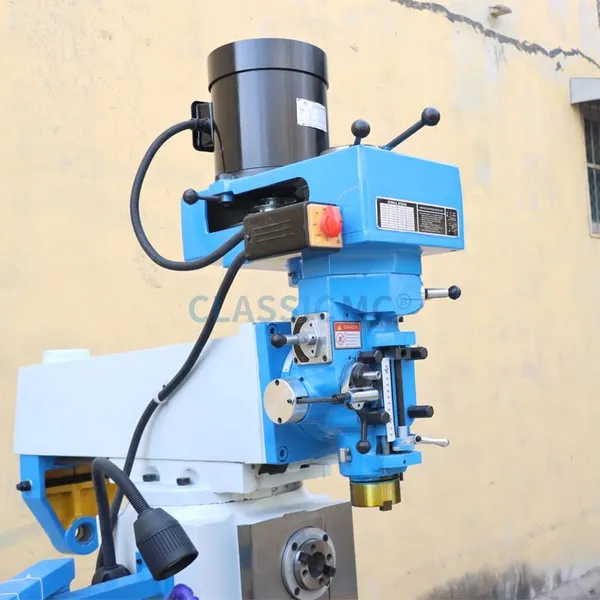

2. Milling Head & Spindle System
Vertical Milling Head (Taiwan Origin):
Spindle Taper: NT40/R8 (optional NST#30/#40).
Speed Range: 60–5440 rpm (12-speed gearbox, variable speed).
Adjustment: Tilts ±45° in vertical plane, swivels 180° horizontally.
Horizontal Milling Spindle:
Speed Range: 40–1300 rpm (12-speed).
Center-to-Table Distance: 20–470 mm, suitable for cutting, grooving, and heavy-duty horizontal milling.

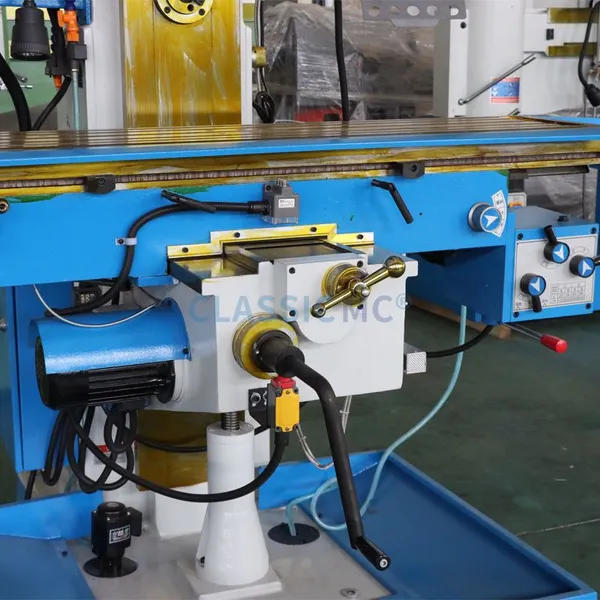

3. Worktable & Travel Specifications
Table Size: 1325×320 mm (optional 1500×320 mm for extended range).
T-Slots: 3 slots, 18 mm width × 80 mm pitch, max load 350 kg.
Axis Travel (Manual/Auto):
X-axis: 830–930 mm (longitudinal).
Y-axis: 300–350 mm (cross).
Z-axis: 400–550 mm (vertical).
Power Feed: 8-speed auto feed (12–370 mm/min) + rapid traverse (540 mm/min) for X/Y/Z axes.
4. Drive & Power
Vertical Spindle Motor: 2.2 kW.
Horizontal Spindle Motor: 3.0 kW.
Feed Motor: 0.75 kW (X/Y/Z auto feed).
Voltage: 380V/50Hz (customizable for global standards).
5. Key Advantages
2-in-1 Function: Switches between vertical and horizontal milling to cover diverse tasks, reducing equipment investment.
High Precision: Equipped with DRO (Digital Readout) (optional) for 3-axis positioning accuracy ≤0.02 mm.
User-Friendly: Low noise, smooth operation, centralized lubrication system, and easy maintenance.
Cost-Effective: Ideal for small workshops, repair shops, and educational institutions; offers industrial-grade performance at a competitive price.
6. Optional Accessories

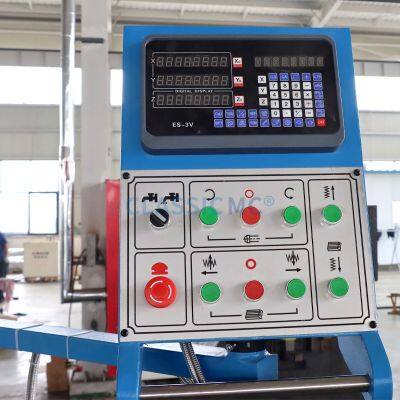

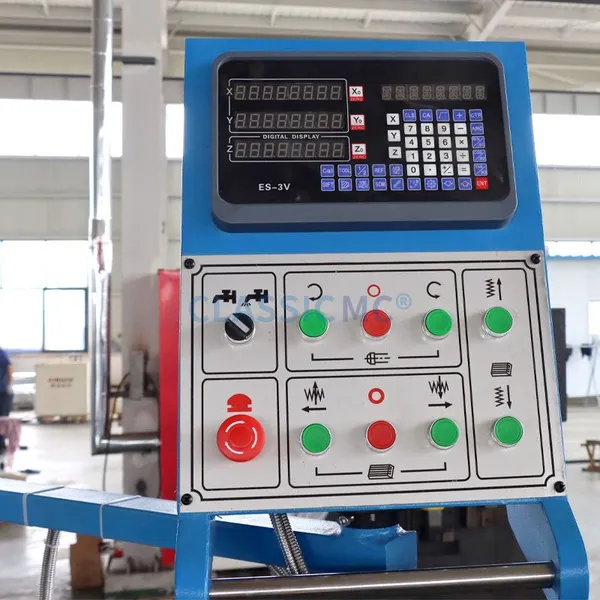

Digital Readout (DRO): 3-axis display for precise positioning.
Dividing Head: For gear cutting, spline machining, and angular indexing.
Coolant System: Ensures tool cooling and chip removal during high-speed machining.
Rotary Table: Enables circular and arc machining.
7. Machine Dimensions & Weight
Size (L×W×H): 1800×2100×2500 mm.
Net Weight: ≈2700 kg.
8. Application Scenarios
Mold Making: Cavity/cores, mold bases, and insert machining.
General Machining: Brackets, flanges, gears, and shafts.
Educational Use: Technical schools and vocational training centers for milling operation training.
Small-Batch Production: Custom parts and prototype development.The X6332 is a proven, versatile milling solution that balances performance, durability, and affordability, making it a top choice for workshops seeking a single machine to handle multiple milling tasks.
