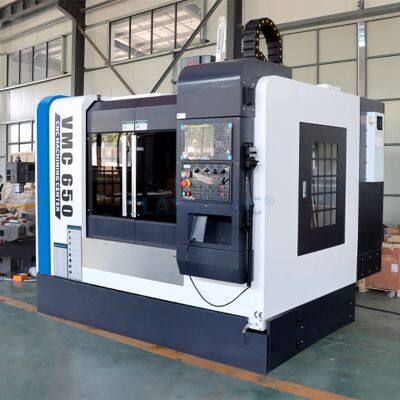

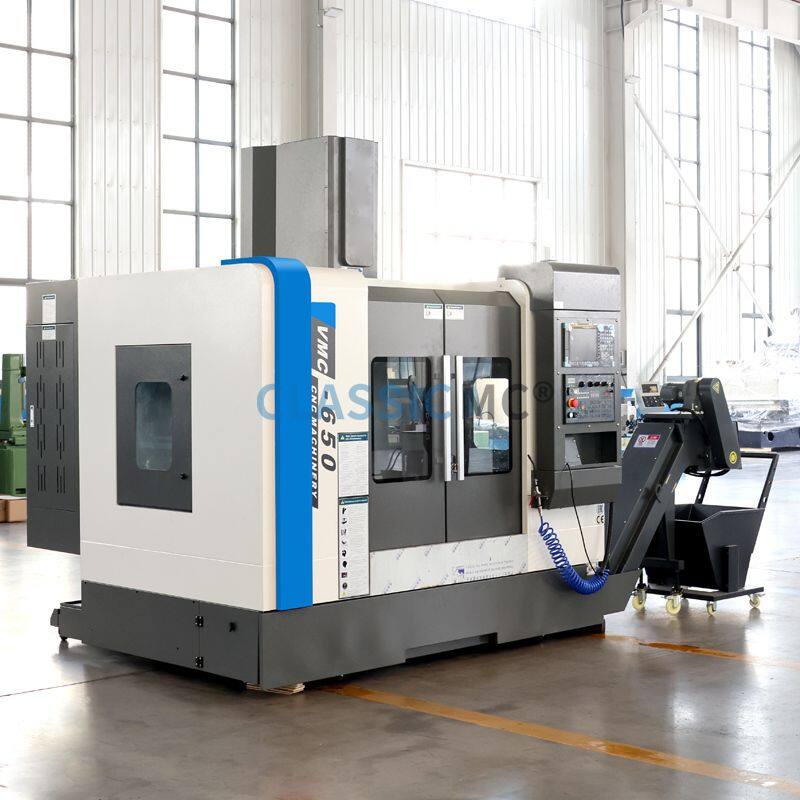

VMC650 CNC Vertical Machining Center Product Description
Compact, High-Precision & Cost-Effective Solution for Small to Medium-Sized Metal Parts
Overview
The VMC650 is a compact and high-performance vertical machining center, specially designed for efficient processing of small to medium-sized metal components. With its optimized structure and space-saving design, it is perfectly suitable for workshops with limited space while delivering reliable precision and productivity. Equipped with a semi-closed loop control system and contour control, the VMC650 ensures stable positioning accuracy and excellent repeatability, easily meeting the machining precision requirement of 0.04~0.05mm. It is an ideal choice for small enterprises, precision parts processing workshops, and mold manufacturing industries seeking high efficiency and cost-effectiveness.
Core Features
1. Compact & Stable Structure
- Main castings (bed, column, saddle) are made of high-strength HT250 cast iron, undergoing multiple aging treatments to eliminate internal stress, ensuring structural stability and thermal deformation resistance during long-term operation.
- Optimized compact design reduces the machine footprint, making it easy to install and arrange in small workshops, without compromising rigidity and cutting performance.
2. Precision Motion System
- Semi-closed Loop Control: Adopts servo motor with built-in encoder for real-time position feedback, balancing high precision and cost-effectiveness, fully meeting the needs of general precision machining.
- Contour Control: Supports multi-axis simultaneous interpolation, enabling smooth machining of complex 2D/3D contours, arcs, and curved surfaces, expanding the range of processable parts.
- X/Y/Z axes are equipped with high-precision linear guideways and C3-grade ball screws with preload treatment, minimizing backlash, ensuring smooth movement, and maintaining long-term positioning accuracy.
3. Efficient Machining Performance

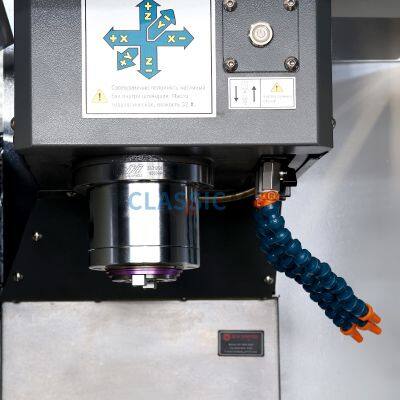

- BT30/BT40 spindle taper (optional) with a maximum speed of 8000 RPM (belt-driven), matched with a 5.5/7.5kW spindle motor, providing strong cutting force for various materials and ensuring efficient machining.
- 16/24-tool arm-type automatic tool changer (ATC), with a tool-to-tool change time of ≤3 seconds, significantly reducing non-cutting time and improving production efficiency.
4. User-Friendly & Reliable Operation

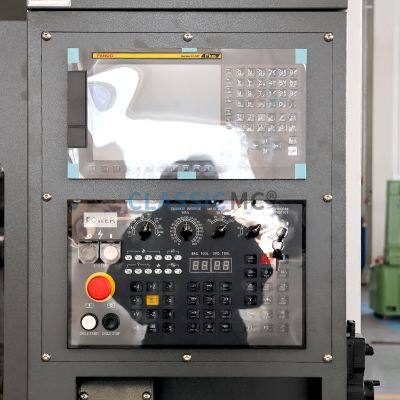

- Supports mainstream CNC systems: FANUC Oi-MD, Mitsubishi M70, or Syntec 21MA, featuring an intuitive operation interface, easy programming, and DNC function for seamless program transfer.
- PLC-controlled centralized lubrication system and spindle oil cooler automatically maintain key components, extending the service life of the machine and reducing maintenance costs.
Technical Specifications
Applications
The VMC650 is widely used in one-clamp multi-process machining for small to medium-sized parts, suitable for various industries:
Electronics Industry: Precision aluminum alloy parts, electronic component housings, connectors.
Automotive Accessories: Small engine parts, dashboard components, fasteners.
Mold & Die: Small plastic injection molds, precision die inserts, stamping dies.
General Machinery: Small gears, valves, hydraulic fittings, precision shafts.
Suitable Materials: Aluminum alloy, stainless steel, carbon steel, cast iron, copper, and other non-ferrous metals.
Optional Configurations
CNC System: Siemens 828D, GSK 25i, Syntec 22MA.
Spindle: 10000 RPM direct-drive spindle, coolant-through-spindle (CTS).
4th Axis: A-axis rotary table for multi-sided machining.

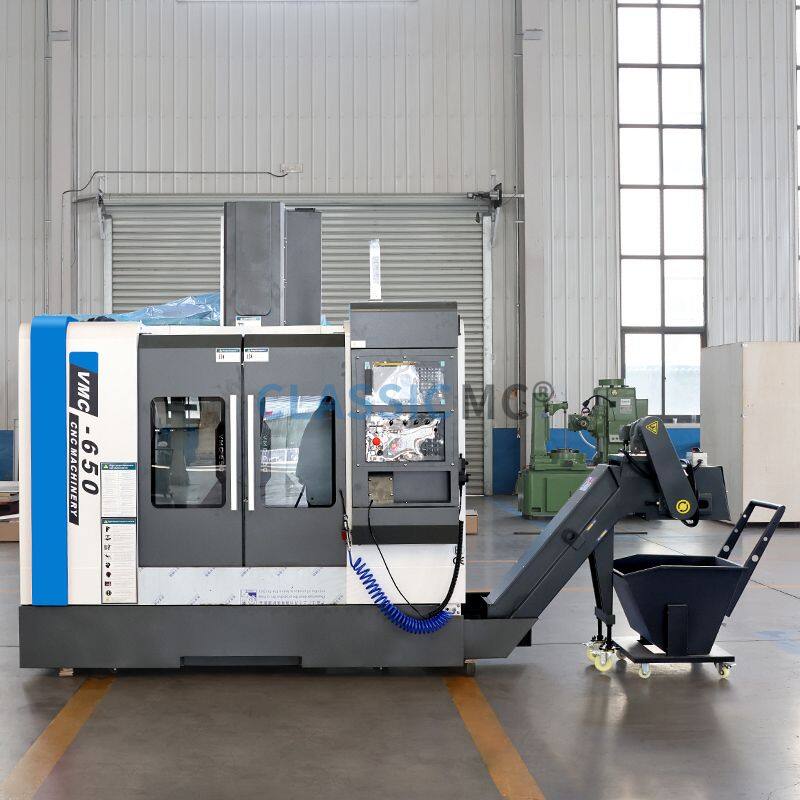

Chip Removal: Spiral chip conveyor, chain-type chip conveyor.
Measurement: Workpiece probe, automatic tool setter.
Others: Oil mist collector, full-enclosure safety cover, LED work light.
