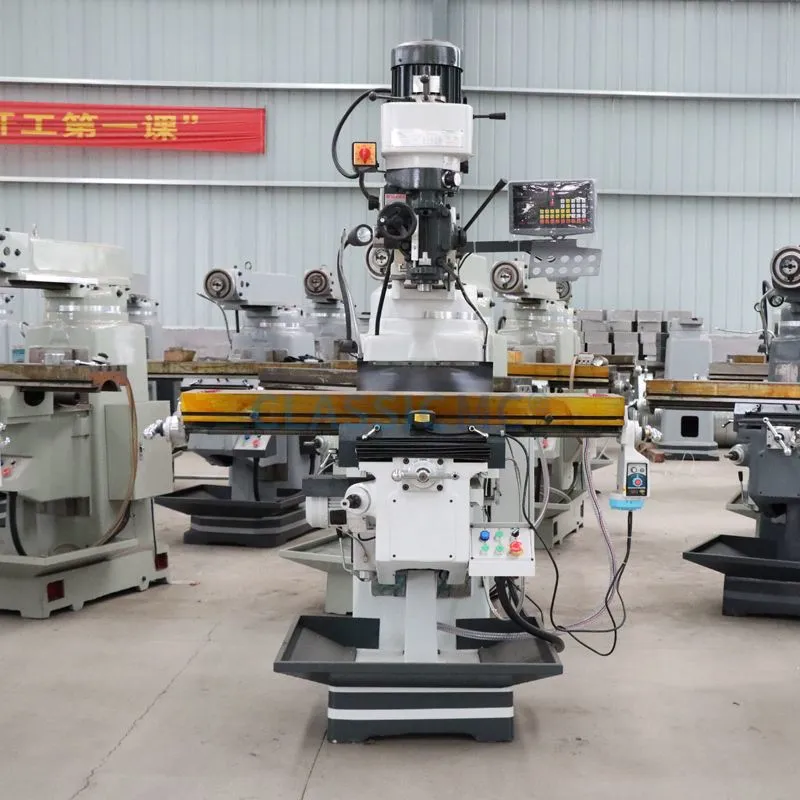

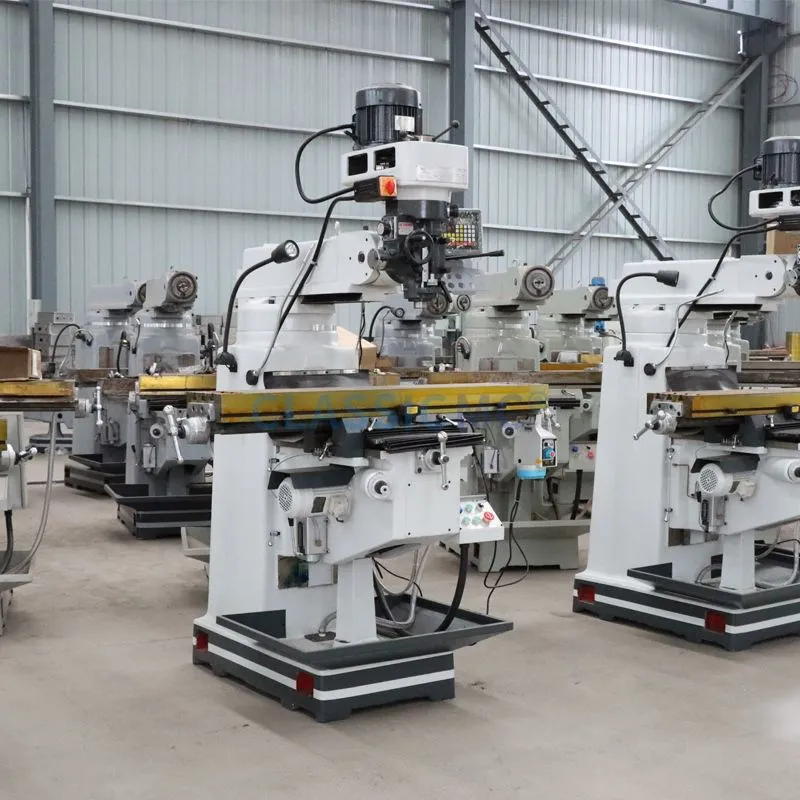

X6325 Universal Turret Milling Machine
X6325 is a popular light and medium duty universal turret milling machine, widely used in machinery processing, maintenance workshop, school training and small batch parts production.
Structural Features
Whole machine adopts high strength cast iron material, finished with natural aging treatment, stable performance and good shock resistance. All linear guide ways are high frequency quenched and precision grinding processed, featuring high hardness, low friction and long service life. The turret milling head can rotate 360 degrees horizontally and tilt ±45 degrees vertically, realizing multi-angle flexible machining without repeated clamping workpieces.
Spindle Performance
Vertical spindle taper: R8 / NT30Spindle speed range: 50 - 4500rpm, 12 gear shifting speeds, stable output power.Horizontal milling spindle is equipped to satisfy horizontal cutting, grooving and side face processing demands. Spindle runs smoothly with low noise, suitable for both finish machining and ordinary rough machining.
Worktable Parameters
Standard table dimension: 1120*250mmNumber of T-slot: 3 piecesMax table loading capacity: 300kgWorking travelX axis: 600mmY axis: 270mmZ axis: 380mm
Power Configuration
Main spindle motor power: 2.2KWAutomatic feed motor power: 0.55KWStandard working voltage: 380V 50Hz, can be customized as required

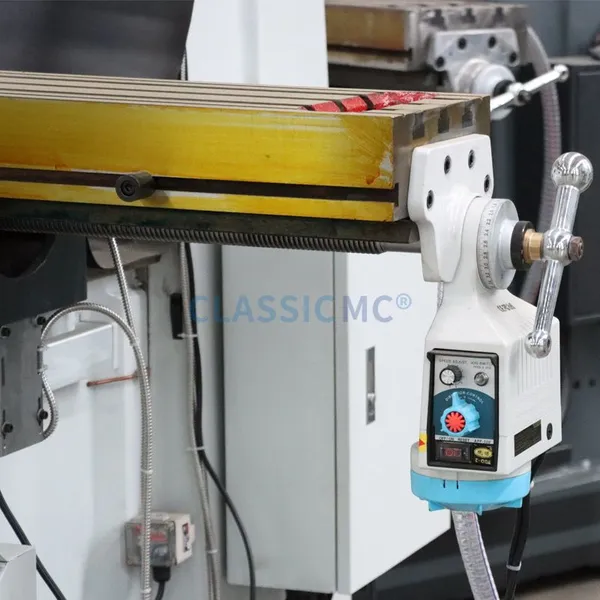

Feed System
Equipped with manual feeding and automatic feeding function, multi-section feeding speed adjustment. Fast moving speed improves working efficiency, centralized lubrication system ensures each moving part gets sufficient lubrication, easy operation and daily maintenance.
Core Advantages
Compact body design, save workshop space. Complete processing functions including milling, drilling, boring, tapping and slotting. Cost-effective, reliable quality, easy to operate and suitable for novice workers. Optional 3 axis digital readout device to improve machining positioning accuracy effectively.
Application Range
Mainly used for processing flat surface, inclined surface, groove, hole and simple forming parts. Widely applied in hardware accessories, mechanical repair, vocational school teaching equipment and small factory daily processing work.
Overall Specification
Overall machine dimension: 165015002200mmNet weight: about 1600kg
Optional Accessories
Coolant system, dividing head, rotary table, digital display ruler, various milling cutters and tool holders
