UV CIPP Liner Manufacturing Machine
What is UV CIPP Liner
U
Cured-in-place pipe lining, or CIPP, is a most fast, effective and efficient trenchless solution for rehabilitating damaged underground drains, sewer and portal water pipe lines without the excavation for yard, pavement or driveway.

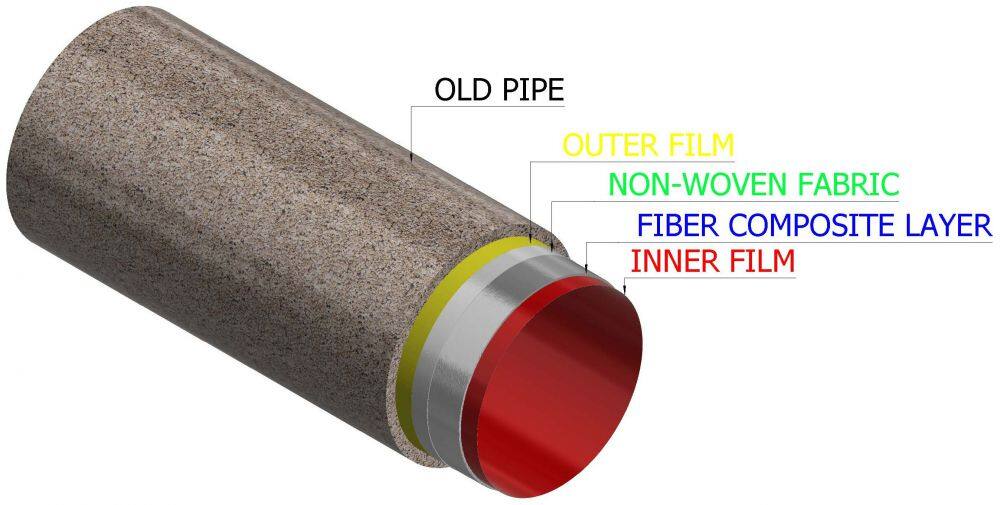

The UV CIPP liner is made from glass fibre matrix, polyester resin or vinyl ester resin, Nonwoven fabrica, UV protection film,etc and cured by UV light.
. The advantage of rehabilitating damaged pipe with UV CIPP glass fiber liner is as follows:
Cost-Effective
Rehabilitating damaged pipe with UV CIPP liner due to its installation is very fast and procedure is simple.
The following features will explain why it is the cost-effective of UV CIPP lining
Size ange: The size of UV CIPP liner is from 8”(50mm) to 94” (2400mm), and wall thicknesses is from 2 mm to 22mm.
Fast and efficient
UV CIPP lining is a fast and efficient trenchless pipe rehabilitating technology.
Renovation of pipelines that are inaccessible for traditional excavation methods
Unlike traditional methods, UV CIPP lining does not require the excavation of ground, pavement or driveway.
Long-service life: more than 50-year
Various applications: It can repair the duct-iron pipe, concrete pipe and plastic pipe with very think wall CIPP liner what is made from glass fiber fabric and high strength resin in the lining material increases liner strength, small shrinkage.
Smooth surface, very low friction improves flow capacity.
No traffic disruption
Immediately used after installation.

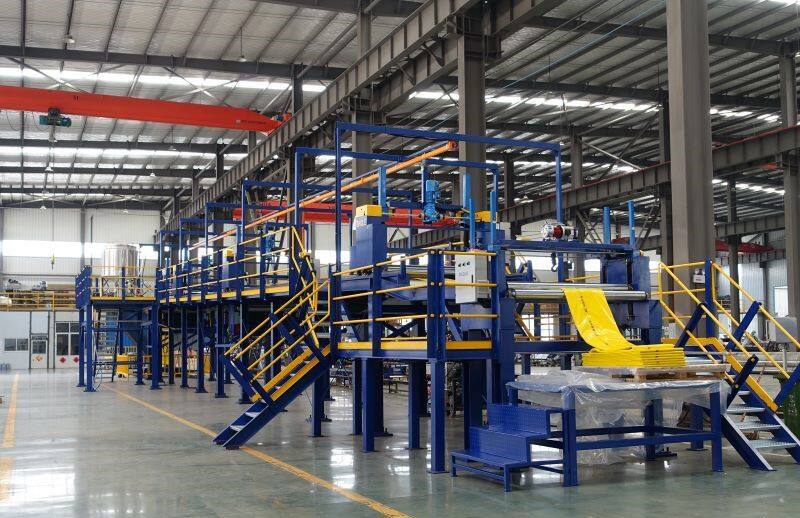

UV CIPP Fiber Liner Manufacturing machine
With new technology to manufacture the UV CIPP (Cured In Place Pipe) glass fiber liner. It consists fully automatic dry liner production machine and wet(impregnation) liner machine.

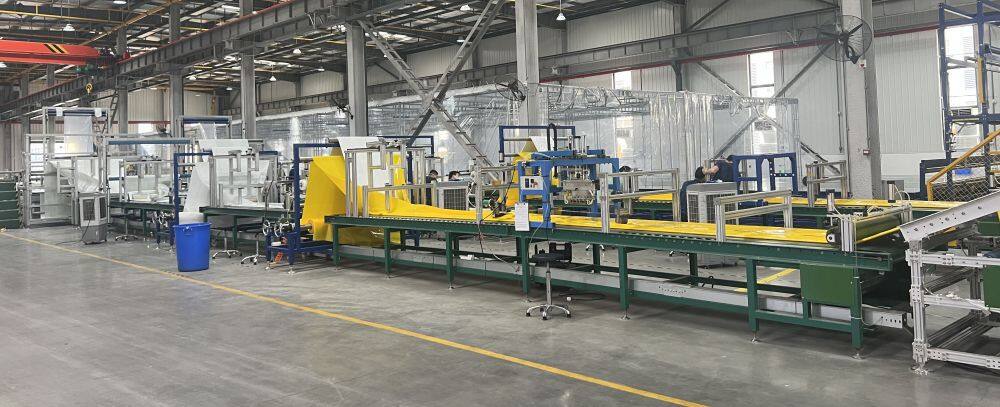

The dry liner machine is fully automatic, and it consists material uncoiling frame, Aramid rope feeding unit, fiber glass matrix folding unit, leakage-proof fabric heat sealing and anti-light film heating sealing unit and folding unit.

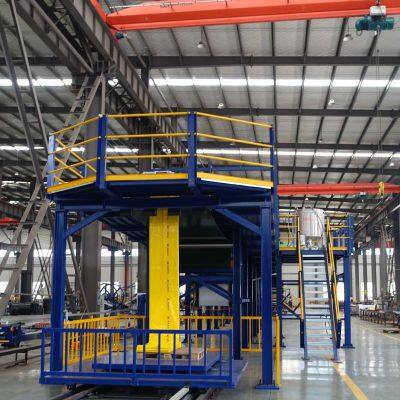

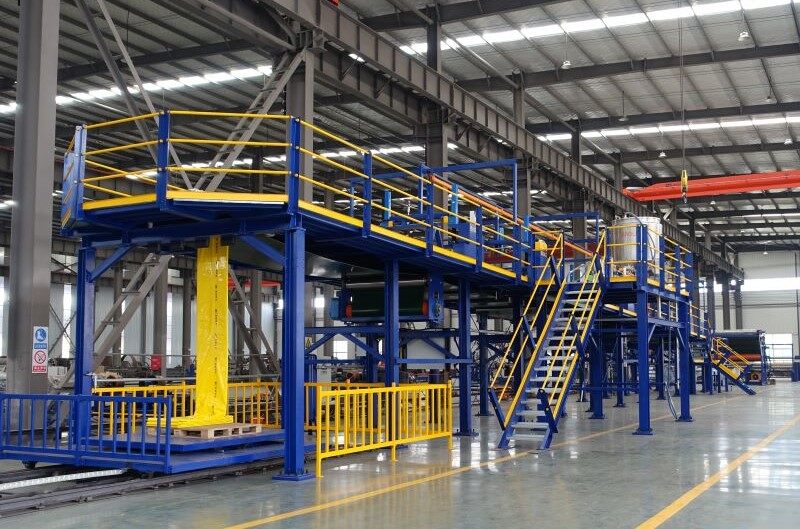

The wet(impregnation) liner machine ensure the UV CIPP glass fibre prduction at high thickness precsion and high production speed, it consists
Online fully automatic and high precision resin dosing and mixing system,

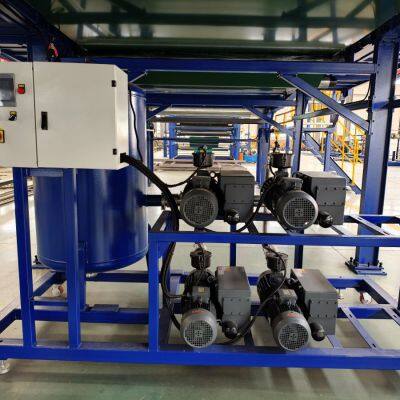

Fully automatic powerful vacuum system with several stage flow design what can adjust the working vacuum pump quanity according the UV CIPP liner production siutiation,

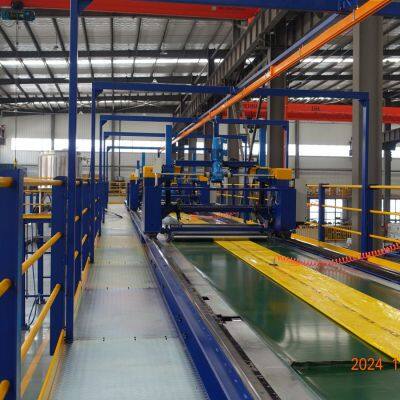

Ultra-flat impregnation and flatting system, 4 sets of flatting trolley equipped with high precision lifting system equipped with ball screw lifter and Grating scale to guaratee the thickess precision and uniform.
Automatic folding unit .
Specification
Min. Dia mm |
Max. Dia mm |
Capacity m/shfit |
Area |
|
STL-600 |
200 |
600 |
300-600 |
45*4*5*2 |
STL-800 |
200 |
800 |
300-600 |
45*4*5*2 |
STL-1200 |
200 |
1200 |
200-500 |
50*5*5*2 |
STL-1500 |
200 |
1500 |
200-500 |
50*5*5*2 |
STL-2000 |
300 |
2000 |
200-500 |
55*7*5*2 |
