REDEFINE PRODUCTIVITY

USA

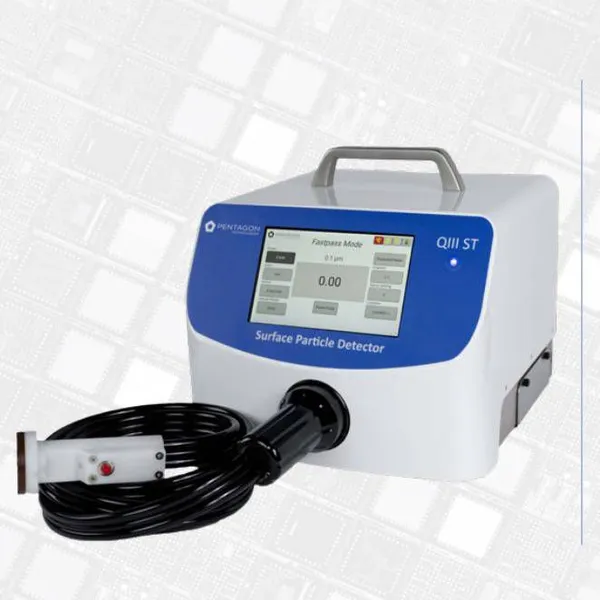

Pentagon Technologies QIII is a device used for measurement and inspection.

It uses advanced technology to achieve measurement accuracy and machine stability. It's difficult for the human eye to

clearly see particles with a diameter below 100um. These particles will settle quickly,

evade conventional air detection and accumulate on critical surfaces or products, thus

reducing product yield and stability. The QIII ST surface particle detector measures particles (0.1 - 5um), which plays a significant role in controlling the production environment

and improving product yield. It can help enterprises achieve digital management more quickly.

BENEFITS

• Quickly measure surface particles

• Help control particulate matter on machine products to increase production

• Reduce troubleshooting time by quickly identifying particle sources

• Monitor particles on materials, incoming goods, and parts

• Shorten the PM cycle

• Comply with ISO 14644 - 9 surface particle operation specifications

• Reduce particle - related failures

Particle measurement range: 0.1um - 5um

• Particle size channels: 0.1, 0.2, 0.3, 1.0, 3.0, 5.0um

• Laser source: Laser

• Batteries: 2

• Dimensions & Weight: 30.5cm X 30.5cm X 22.9 cm, 13.2 kg

Hot - swappable lithium - ion batteries

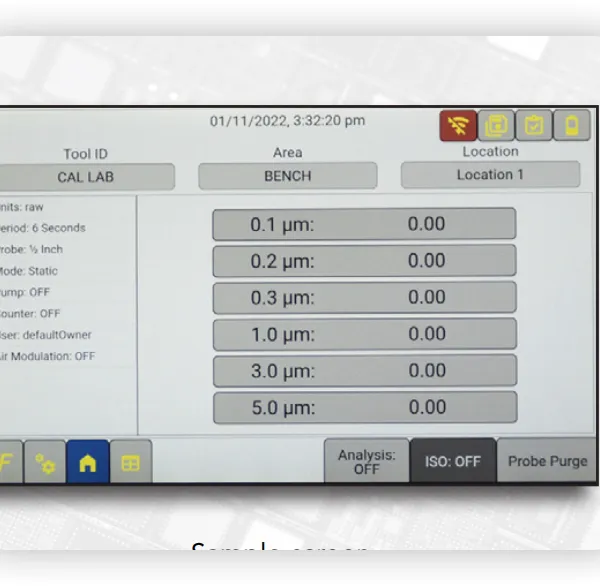

• Display: 7” WVGA touchscreen

• Data display: Particles per square centimeter, particles per square inch, particles

• Can intelligently analyze the average value of test data

• Data output: USB, Ethernet, WiFi (optional)

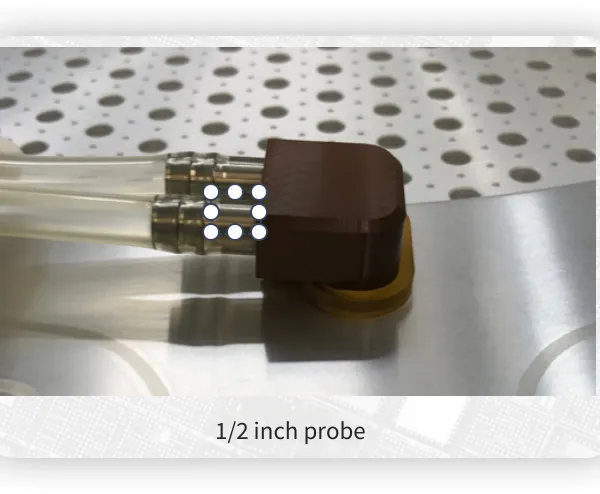

• Probe included: ½” right - angle probe.

• Input power: 100 - 240 VAC, 50/60 hz

• Sampling mode: Static sampling and dynamic sampling

• CE certification

• Languages: English, Chinese, Japanese, Korean

• Made in the USA
