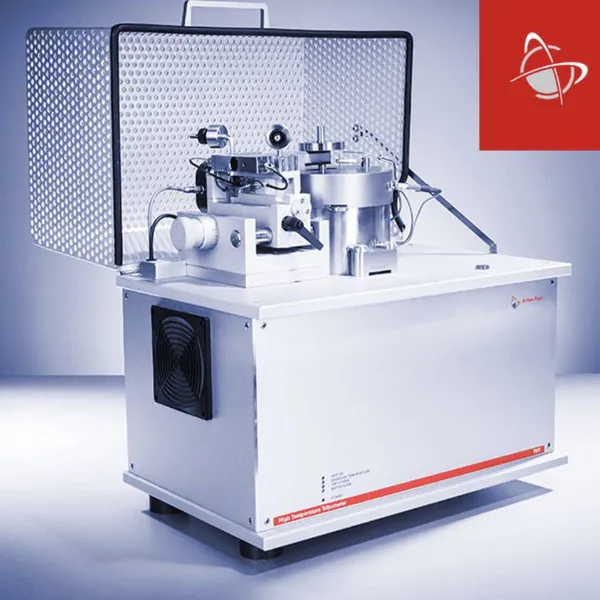

The analysis of the friction and wear performance of materials at high temperatures is becoming increasingly important, especially in relation to the R & D and quality control of components of internal combustion engines and power plants. To meet the demand for a large amount of data in high - temperature environments, Anton Paar has expanded its pin - on - disk sliding wear test device and developed a powerful high - temperature version that can accurately simulate the working environment.
Main Features
Technical Functions
The differential friction sensor can exhibit perfect stability at all temperatures (up to 1000°C)
The efficient heating/cooling system can precisely maintain the required temperature
The angle sensor can be used for reciprocating multi - cycles
Automatically shut down when the predetermined wear track length or friction coefficient threshold is reached
Room - temperature measurement
Test according to DIN 50324, ASTM G99 and ASTM G133 standards
Other Functions
Electrical Contact Resistance (ECR)
Continuous wear depth measurement
-
Vacuum setting
Technical Specifications
| Rotation speed | 0.3 to 500 rpm (Optional 1500 rpm) |
|---|---|
| Torque | 450 Nmm |
| Friction (LVDT sensor) | Up to 10 N (Optional 20 N) |
| Disc size | Diameter 55 mm |
