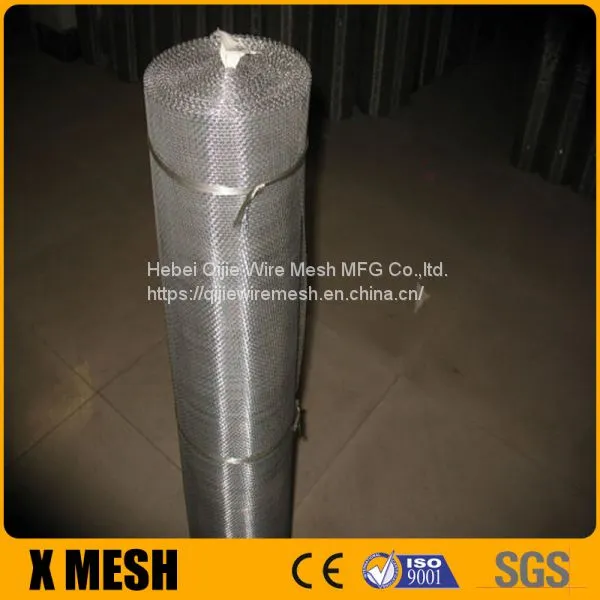

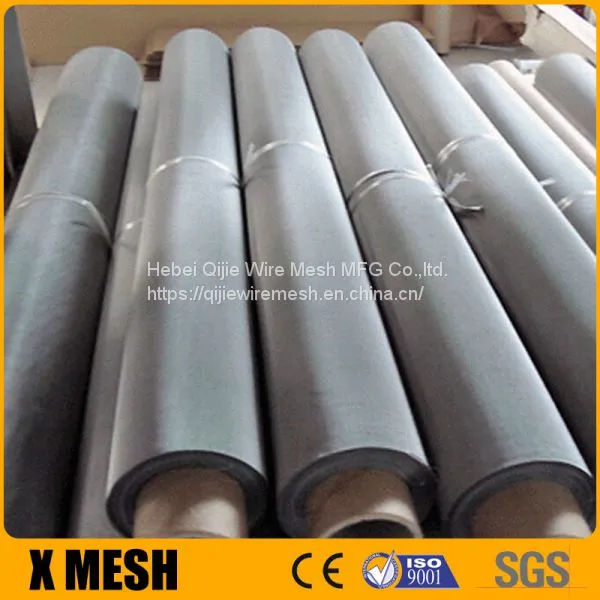

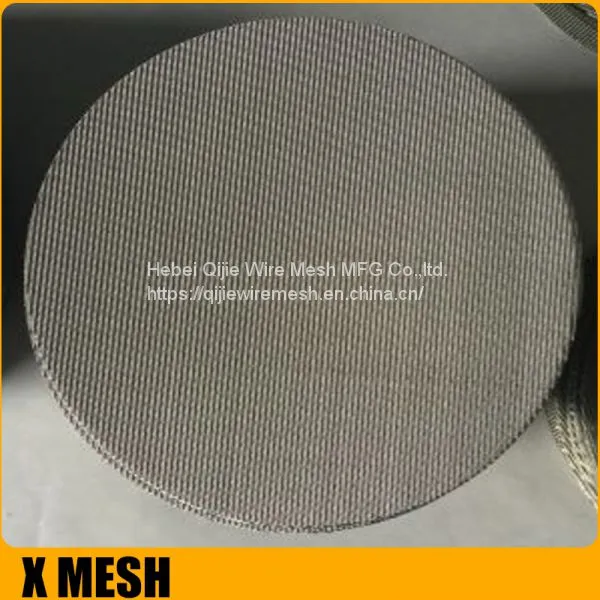

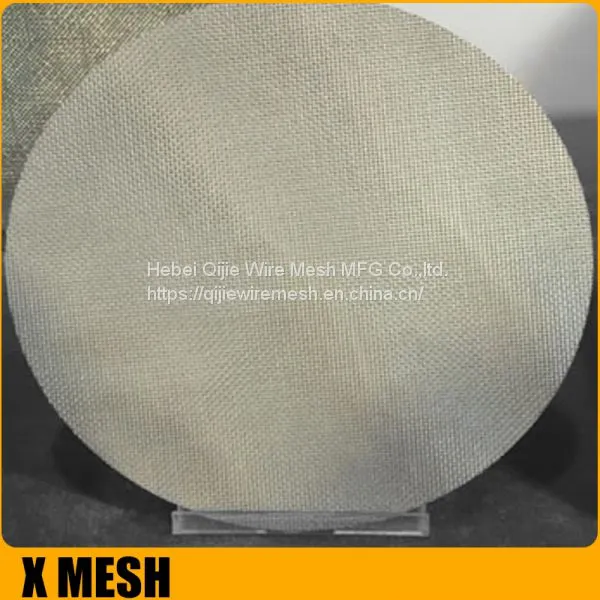

2-400 Mesh Stainless Steel Wire Mesh Filter Screen/micro Screen Mesh Filter/ Micron Stainless Steel Mesh Screen(Factory)
we are expert manufacturer of woven wire mesh, especially stainless steel woven wire mesh and brass wire cloth products.
Stainless steel wire mesh square opening we supply comes from 2mesh to 635mesh per inch normally. Square woven stainless steel mesh is made with the pattern of Plain or Twill weave. We also produce good quality Dutch woven stainless steel wire cloth, which we are providing more information in a separate page.
Material applied for stainless steel wire mesh: Sus302, 304, 316, 304L, 316Lstainless steel wire.
Weaving Patterns applied for stainless steel wire mesh square opening:
Plain Weave:
Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave:
Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Stainless Steel Wire Mesh
Stainless steel wire mesh is a kind of mesh made of stainless steel.
Material: Stainless steel wire 304,304L,316,316L and so on
Weaving: Plain weave, twill weave, dutch weave
Mesh: 2 mesh-500 mesh
Usage:
1. For acid, alkali conditions for screening and filtering, the petroleum industry as mud mesh, chemical fiber industry, as the sieve plating.
2. For mining, petroleum, chemical, food, medicine, machinery manufacturing, and other industries.
3. For acid, alkali conditions sieving and filtering, the mud for the oil industry, chemical fiber industry as screen, electroplating industry for pickling net, the factory can according to user needs to design the production of various types of products.
Product Features and Technical Specifications: Our woven wire mesh is crafted from premium 316L stainless steel, known for its exceptional resistance to corrosion, chemicals, and high temperatures. This ensures reliable filtration in demanding applications such as water treatment, oil and gas, and food processing. The customizable roll sizes allow for seamless integration into various systems, reducing waste and installation time. Key advantages include:
Enhanced Durability: 316L material provides superior strength and longevity, minimizing replacement costs.
Precise Filtration: Uniform weave structure ensures consistent particle retention for improved process efficiency.
Easy Customization: Tailor roll dimensions, wire diameter, and mesh size to fit specific industrial requirements.
Versatile Applications: Suitable for liquid, gas, and solid filtration across multiple sectors, including chemical plants and manufacturing facilities.
Specification
| Mesh | Wire Diameter (mm) | Opening (mm) | Mesh | Wire Diameter (mm) | Opening (mm) | |
| 2×2 | 1.60 | 11.10 | 40×40 | 0.25 | 0.38 | |
| 3×3 | 1.37 | 7.09 | 50×50 | 0.20 | 0.31 | |
| 4×4 | 1.60 | 4.75 | 60×60 | 0.18 | 0.23 | |
| 4×4 | 1.19 | 5.16 | 60×60 | 0.18 | 0.25 | |
| 5×5 | 1.00 | 4.04 | 70×70 | 0.12 | 0.24 | |
| 6×6 | 0.89 | 3.35 | 80×80 | 0.14 | 0.15 | |
| 8×8 | 0.71 | 2.46 | 90×90 | 0.12 | 0.16 | |
| 10×10 | 0.64 | 1.91 | 100×100 | 0.10 | 0.15 | |
| 12×12 | 0.58 | 1.52 | 120×120 | 0.09 | 0.12 | |
| 12×12 | 0.50 | 1.60 | 150×150 | 0.063 | 0.11 | |
| 14×14 | 0.23 | 1.22 | 180×180 | 0.053 | 0.09 | |
| 14×14 | 0.50 | 1.30 | 200×200 | 0.053 | 0.07 | |
| 16×16 | 0.45 | 1.13 | 250×250 | 0.04 | 0.063 | |
| 18×18 | 0.43 | 0.98 | 300×300 | 0.04 | 0.044 | |
| 20×20 | 0.40 | 0.87 | 325×325 | 0.035 | 0.043 | |
| 24×24 | 0.35 | 0.70 | 350×350 | 0.03 | 0.042 | |
| 30×30 | 0.30 | 0.54 | 400×400 | 0.028 | 0.036 | |
| 30×30 | 0.23 | 0.62 | 450×450 | 0.028 | 0.028 | |
| 35×35 | 0.28 | 0.45 | 500×500 | 0.025 | 0.026 |
Plain weave and twill weave stainless steel wire mesh reference specification:
| MeshWire Diameter (mm)Opening (mm) MeshWire Diameter (mm)Opening (mm)2×21.6011.10 40×400.250.383×31.377.09 50×500.200.314×41.604.75 60×600.180.234×41.195.16 60×600.180.255×51.004.04 70×700.120.246×60.893.35 80×800.140.158×80.712.46 90×900.120.1610×100.641.91 100×1000.100.1512×120.581.52 120×1200.090.1212×120.501.60 150×1500.0630.1114×140.231.22 180×1800.0530.0914×140.501.30 200×2000.0530.0716×160.451.13 250×2500.040.06318×180.430.98 300×3000.040.04420×200.400.87 325×3250.0350.04324×240.350.70 350×3500.030.04230×300.300.54 400×4000.0280.03630×300.230.62 450×4500.0280.02835×350.280.45 500×5000.0250.026 |
Duth weaving stainless steel wire mesh reference specification:
| mesh | wire dia (MM) | Material (AISI) |
| 12 X 64 | 0.58/0.40 | 304 316 |
| 24 X 110 | 0.36/0.25 | 30.316 |
| 14 X88 | 0.50/0.33 | 30.316 |
| 30 X150 | 0.18/0.14 | 30.316 |
| 40 X200 | 0.14/0.11 | 30.316 |
| 50 X250 | 0.10/0.071 | 30.316 |
| 80 X700 | 0.06/0.05 | 30.316 |
| 165 X800 | 0.071/0.040 | 30.316 |
| 165 X1400 | 0.05/0.032 | 30.316 |
| 200 X1800 | 0.05/0.03 | 30.316 |
| 325 X2300 | 0.030/0.025 | 316L |
| 400 X2800 | 0.030/0.02 | 316L |
