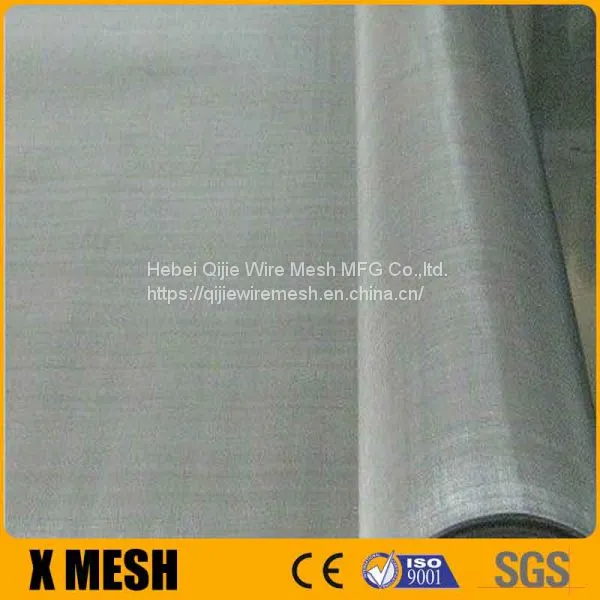

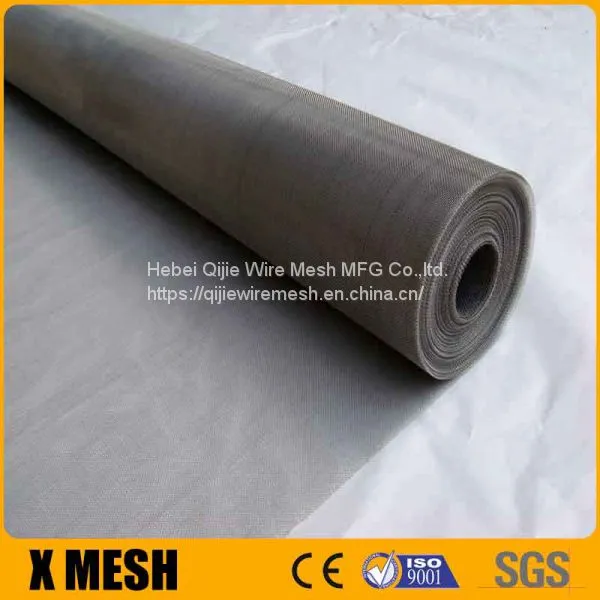

SUS304/SUS316/SUS316L Stainless Steel Wire Mesh for Filtering
Stainless steel wire materials in SUS302, 304, 316, 304L, 316L.
Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, Dutch weave.
Usually in 30m ( up to 200) long and in width of 1m 1.2m 1.5m 2.0metc. Or cut to strip or punched into disc as clients requirement
We also can make supper width 2.0M to 6.0M , which usually used on paper-making mesh.
Mesh weaving type
1. [ Plain Weave ]: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves.
In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern.
Each weft thread crosses the warp threads by going over one, then under the next, and so on.
The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. [ Twill Weave ]: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left,
forming a distinct diagonal line. This diagonal line is also known as a wale.
A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. [ Dutch Weave ]: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
[Twill Dutch Weave ]: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
[ Reversed Dutch Weave ]: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
