Custom Large Plain Twill Weave 304 316 Stainless Steel Netting Woven Wire Mesh Screen

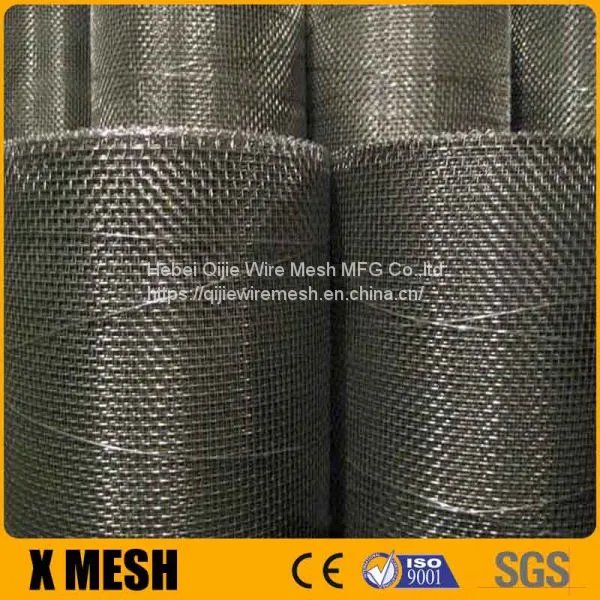

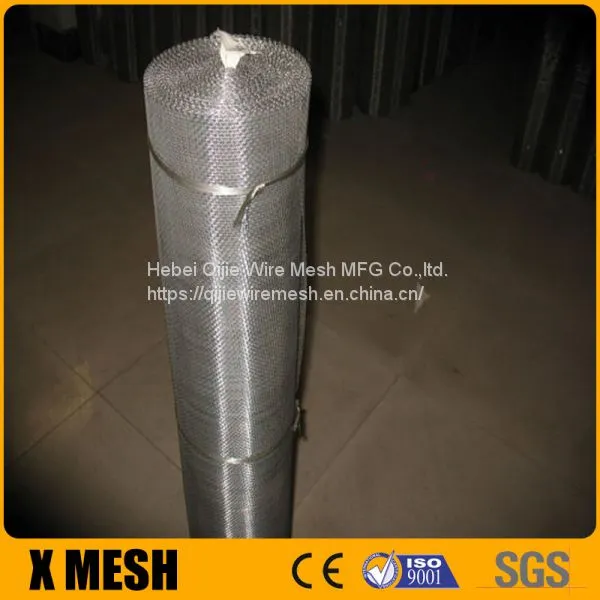

Stainless Steel Wire Mesh
Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening. Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti-static, anti-acid and alkali resistance Corrosion.
Stainless steel wire mesh is a kind of mesh made of stainless steel.
Material: Stainless steel wire 304,304L,316,316L and so on
Weaving: Plain weave, twill weave, dutch weave
Mesh: 2 mesh-500 mesh
Usage:
1. For acid, alkali conditions for screening and filtering, the petroleum industry as mud mesh, chemical fiber industry, as the sieve plating.
2. For mining, petroleum, chemical, food, medicine, machinery manufacturing, and other industries.
3. For acid, alkali conditions sieving and filtering, the mud for the oil industry, chemical fiber industry as screen, electroplating industry for pickling net, the factory can according to user needs to design the production of various types of products.
Specification
Mesh |
Wire Diameter(mm) |
Opening(mm) |
3 |
1.60 |
6.87 |
4 |
1.20 |
5.15 |
5 |
0.95 |
4.13 |
6 |
0.80 |
3.43 |
8 |
0.70 |
2.34 |
10 |
0.60 |
1.94 |
12 |
0.55 |
1.56 |
14 |
0.41 |
1.40 |
16 |
0.35 |
1.24 |
18 |
0.30 |
1.11 |
20 |
0.27 |
1.00 |
22 |
0.25 |
0.90 |
24 |
0.23 |
0.83 |
26 |
0.20 |
0.78 |
28 |
0.18 |
0.73 |
30 |
0.15 |
0.70 |
35 |
0.14 |
0.59 |
40 |
0.14 |
0.50 |
50 |
0.12 |
0.39 |
60 |
0.12 |
0.30 |
Plain weave and twill weave stainless steel wire mesh reference specification:
| MeshWire Diameter (mm)Opening (mm) MeshWire Diameter (mm)Opening (mm)2×21.6011.10 40×400.250.383×31.377.09 50×500.200.314×41.604.75 60×600.180.234×41.195.16 60×600.180.255×51.004.04 70×700.120.246×60.893.35 80×800.140.158×80.712.46 90×900.120.1610×100.641.91 100×1000.100.1512×120.581.52 120×1200.090.1212×120.501.60 150×1500.0630.1114×140.231.22 180×1800.0530.0914×140.501.30 200×2000.0530.0716×160.451.13 250×2500.040.06318×180.430.98 300×3000.040.04420×200.400.87 325×3250.0350.04324×240.350.70 350×3500.030.04230×300.300.54 400×4000.0280.03630×300.230.62 450×4500.0280.02835×350.280.45 500×5000.0250.026 |
Duth weaving stainless steel wire mesh reference specification:
| mesh | wire dia (MM) | Material (AISI) |
| 12 X 64 | 0.58/0.40 | 304 316 |
| 24 X 110 | 0.36/0.25 | 30.316 |
| 14 X88 | 0.50/0.33 | 30.316 |
| 30 X150 | 0.18/0.14 | 30.316 |
| 40 X200 | 0.14/0.11 | 30.316 |
| 50 X250 | 0.10/0.071 | 30.316 |
| 80 X700 | 0.06/0.05 | 30.316 |
| 165 X800 | 0.071/0.040 | 30.316 |
| 165 X1400 | 0.05/0.032 | 30.316 |
| 200 X1800 | 0.05/0.03 | 30.316 |
| 325 X2300 | 0.030/0.025 | 316L |
| 400 X2800 | 0.030/0.02 | 316L |
