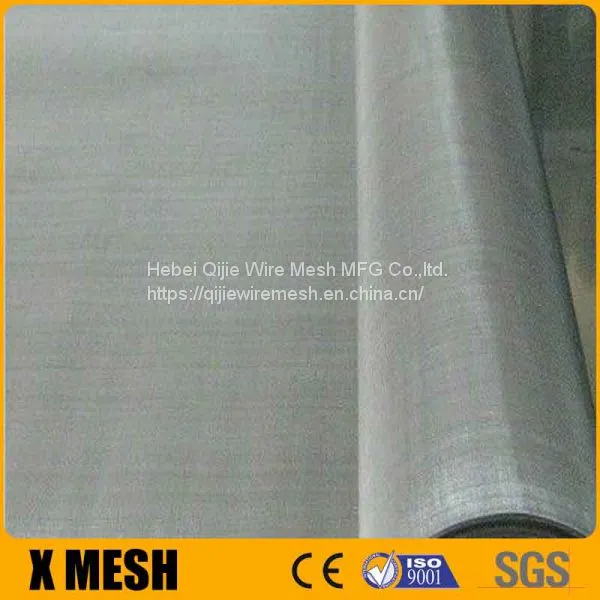

Plain Weave Stainless Steel Wire Mesh 0.02-5.0mm Wire Diameter & 1-500 Mesh
we specializes in producing premium Plain Weave Stainless Steel Wire Mesh, backed by ISO9001 certification and a robust export network spanning North America, South America, Europe, Asia, Africa, and Oceania. Our extensive factory of 5,000-10,000 square meters ensures consistent quality and timely delivery, with over 51-100 skilled employees crafting solutions for diverse industrial needs. This wire mesh offers exceptional durability and precision, making it ideal for demanding applications where reliability is paramount.
Our Plain Weave Stainless Steel Wire Mesh features a versatile design with wire diameters ranging from 0.02 to5.0mm and mesh sizes from 1 to 500, ensuring adaptability for various industrial uses. Key characteristics include:
Stainless Steel Wire Mesh
Stainless steel wire mesh is a kind of mesh made of stainless steel.
Material: Stainless steel wire 304,304L,316,316L and so on
Weaving: Plain weave, twill weave, dutch weave
Mesh: 2 mesh-500 mesh
Usage:
1. For acid, alkali conditions for screening and filtering, the petroleum industry as mud mesh, chemical fiber industry, as the sieve plating.
2. For mining, petroleum, chemical, food, medicine, machinery manufacturing, and other industries.
3. For acid, alkali conditions sieving and filtering, the mud for the oil industry, chemical fiber industry as screen, electroplating industry for pickling net, the factory can according to user needs to design the production of various types of products.
Specification
| Mesh | Wire Diameter (mm) | Opening (mm) | Mesh | Wire Diameter (mm) | Opening (mm) | |
| 2×2 | 1.60 | 11.10 | 40×40 | 0.25 | 0.38 | |
| 3×3 | 1.37 | 7.09 | 50×50 | 0.20 | 0.31 | |
| 4×4 | 1.60 | 4.75 | 60×60 | 0.18 | 0.23 | |
| 4×4 | 1.19 | 5.16 | 60×60 | 0.18 | 0.25 | |
| 5×5 | 1.00 | 4.04 | 70×70 | 0.12 | 0.24 | |
| 6×6 | 0.89 | 3.35 | 80×80 | 0.14 | 0.15 | |
| 8×8 | 0.71 | 2.46 | 90×90 | 0.12 | 0.16 | |
| 10×10 | 0.64 | 1.91 | 100×100 | 0.10 | 0.15 | |
| 12×12 | 0.58 | 1.52 | 120×120 | 0.09 | 0.12 | |
| 12×12 | 0.50 | 1.60 | 150×150 | 0.063 | 0.11 | |
| 14×14 | 0.23 | 1.22 | 180×180 | 0.053 | 0.09 | |
| 14×14 | 0.50 | 1.30 | 200×200 | 0.053 | 0.07 | |
| 16×16 | 0.45 | 1.13 | 250×250 | 0.04 | 0.063 | |
| 18×18 | 0.43 | 0.98 | 300×300 | 0.04 | 0.044 | |
| 20×20 | 0.40 | 0.87 | 325×325 | 0.035 | 0.043 | |
| 24×24 | 0.35 | 0.70 | 350×350 | 0.03 | 0.042 | |
| 30×30 | 0.30 | 0.54 | 400×400 | 0.028 | 0.036 | |
| 30×30 | 0.23 | 0.62 | 450×450 | 0.028 | 0.028 | |
| 35×35 | 0.28 | 0.45 | 500×500 | 0.025 | 0.026 |
