2m Width 10mesh ( 2.5mm Openning) Stainless Steel 304 Woven Wire Mesh
T-304 stainless steel is the most widely available of all stainless steels in the wire mesh industry. Aside from the countless combinations of mesh opening sizes and diameter wire available both from stock and through manufacturing, T-304 SS exhibits many benefits and is largely considered the standard of the industry. T-304 SS has excellent corrosion resistance in a wide range of environments and is used in a wide range of applications.
Another of the many benefits of T-304 SS is heat resistance. T-304 SS displays good oxidation resistance to a temperature of approximately 1600°F in intermittent service and to a temperature of 1700°F in continuous service. T-304 stainless steel is also excellent for fabrication purposes – it can be formed and cut to size with appropriate tools and machinery. It can also be welded, using most common welding techniques, and it is virtually non-magnetic in the annealed condition. From a cost standpoint, it is usually the most attractively priced of most readily available stainless steel mesh alloys in the industry, especially when taking into consideration its lifecycle.
T-304 Stainless Steel – Standard Chemical Composition (in %) |
|||||||||
| Alloy | Carbon [C] | Manganese [Mn] | Phosphorus [P] | Sulfur [S] | Silicon [Si] | Chromium [Cr] | Nickel [Ni] | Iron [Fe] | Others, if Applicable |
|---|---|---|---|---|---|---|---|---|---|
| T-304 SS | 0.08 Max | 2.0 Max | 0.045 Max | 0.03 Max | 1.00 Max | 18.00–20.00 | 8.00–10.50 | Balance | Nitrogen [N] = 0.10 Max |
Stainless steel available: 304, 304L, 316, 316L, 310s, 904L, 430, etc More materials available: Copper, Brass, Bronze, Inconel, Monel, Nickel, Titanium, etc Specification customization: Wire Diameter, Mesh Count, Weave type

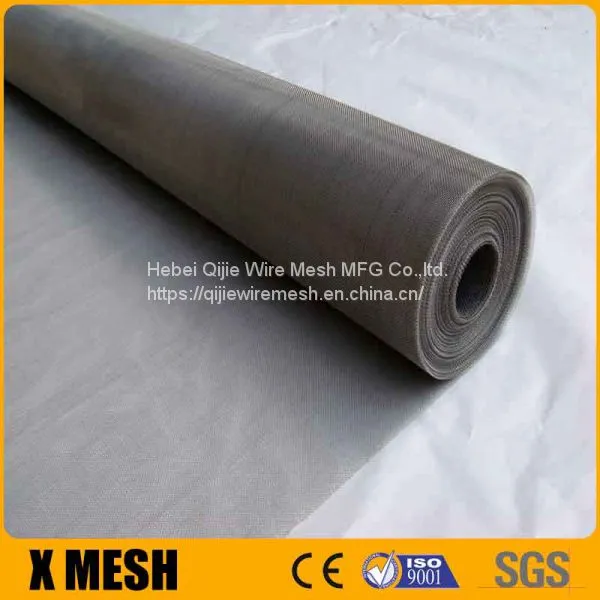

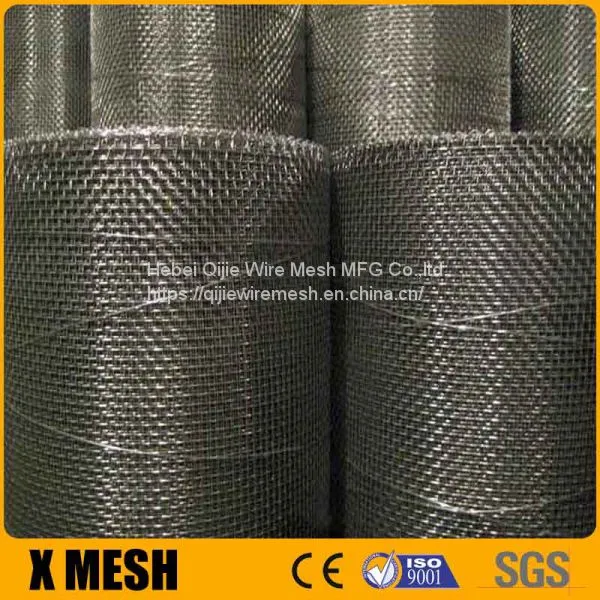

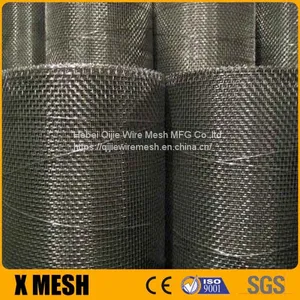

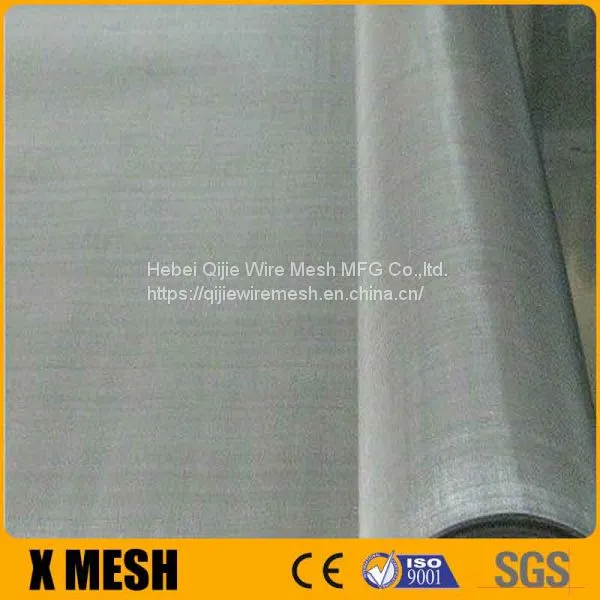

Woven wire mesh is available on the roll or cut to size
Provide fine and strict packaging to ensure that the goods will not be damaged
Product Name |
Woven Wire Mesh, Wire Cloth |
| Stainless Steel Grade | 304, 304L, 316, 316L, 310s, 904L, 430, etc |
| Special Material Options | Inconel, Monel, Nickel, Titanium, etc |
| Wire Diameter Range | 0.02 - 6.30mm |
| Hole Size Range | 1 - 3500mesh |
| Weave Types | Plain Weave Twill Weave Dutch or 'Hollander' Weave Plain Dutch Weave Twill Dutch Weave Reverse Dutch Weave Multiplex Weave |
| Mesh Width | Standard less than 2000 mm |
| Mesh Length | 30m rolls or cut to length, minimum 2m |
| Mesh Type | Rolls and sheets are available |
| Production Standards | ASTM E2016 - 20 |
| Certification | ISO9001: 2015 |
