AEGIR 50556 Intelligent Static Tester is used to test whether the static wrist straps and static foot straps meet the usage standards of static protection tools. It combines with the personnel identification card to generate an electronic file and uploads it to the server, which facilitates the customer's audit and production department management. AEGIR 50556 belongs to the testing instrument and needs to be calibrated regularly.
Features of the static tester:
lSupports network communication and can upload 60,000 records within less than 14S
lEnables online upgrade via the network (can be upgraded across network domains)
lAll parameters can be set through the PC and remotely controlled
lComes with a perpetual calendar timer and can automatically synchronize time via the network
l60,000 card swiping records, 10 million blacklist capacity, and the data will not be lost in case of power failure
lIt has abundant I/O ports, which can be used to control other external devices
lAfter being used by large enterprises and tested with massive data, the performance
Basic specification parameters of the static tester:
Protocol standard: |
ISO15693, ISO14443A |
Operating frequency: |
13.56MHz |
Communication interface: |
RJ45 (TCP/IP) |
External power supply: |
DC12V/3A |
Overall power consumption: |
＜2W |
Display screen: |
LED liquid crystal display screen |
Physical parameters of the static tester:
External dimensions: |
215*295*60mm |
Overall weight: |
2kg |
Shell material: |
304 stainless steel for the whole machine |
Protection level: |
IP53 |
Environmental parameters of the electrostatic meter:
Operating temperature: |
-20℃～+70℃ |
Storage temperature: |
-30℃～+80℃ |
Storage humidity: |
5%～95% non-condensing |
Measurement standards of the electrostatic meter:
Static wrist strap: |
Lower limit (750K±10%), upper limit (10M±10%) |
Shoes: |
Lower limit (750K±10%), upper limit (35M, 100M, 1000M±10%) can be freely selected |

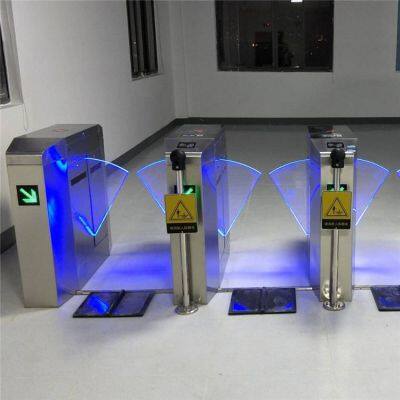

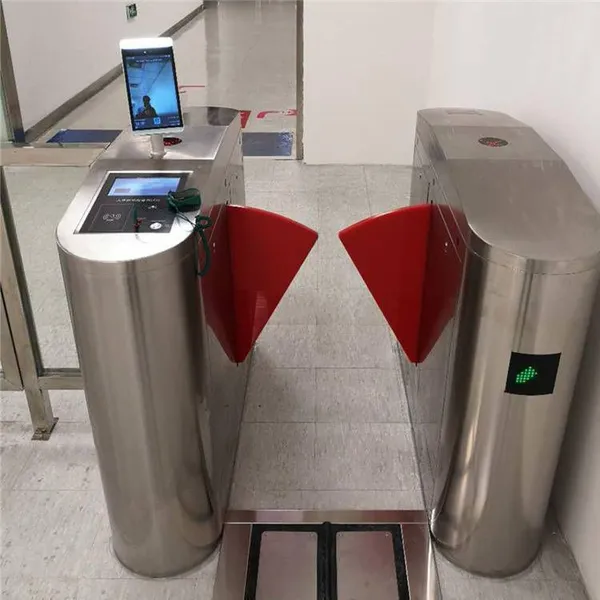

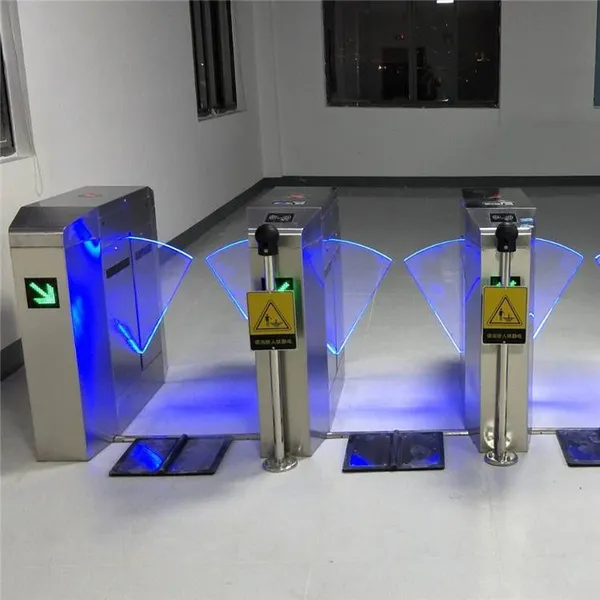

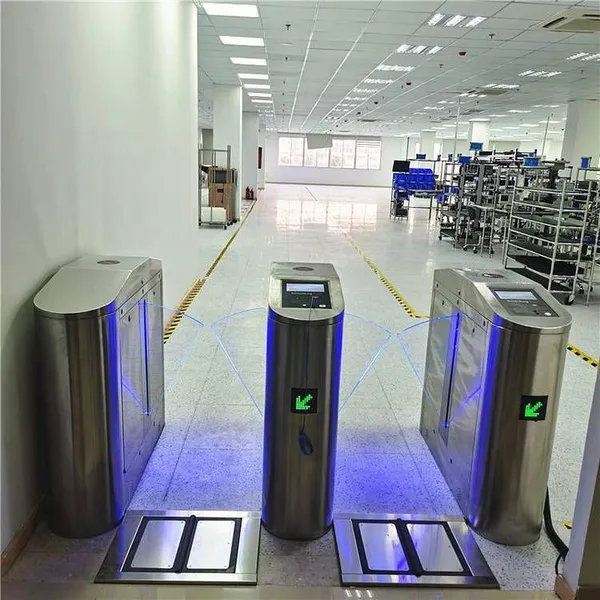

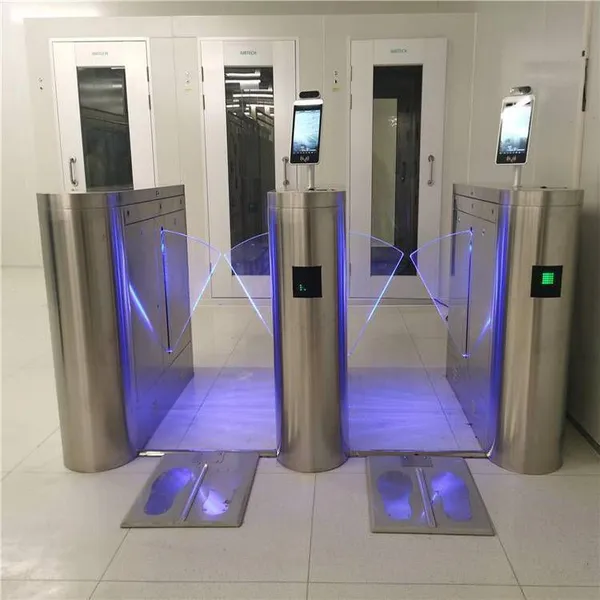

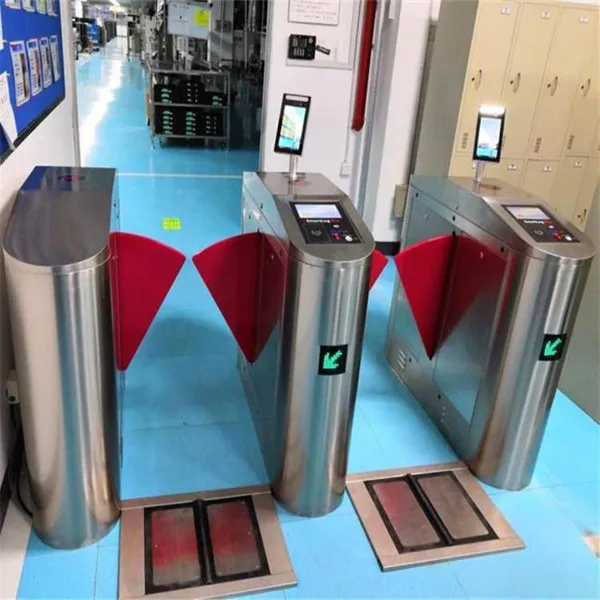

Wing gateFeatures of standard products:
lIt has the functions of fault self-check and alarm prompt, which is convenient for users to maintain and use;
lThe operating status of the device can be programmed through the built-in small keypad on the main control board;
lMechanical structure and induction dual anti-pinch functions. When the telescopic arm encounters an obstacle during the reset process, it will automatically stop or the motor will stop working within the default time. It will reset again after the default delay (until the reset is completed), and the force is very small(≤2Kg);
lSound and light alarm functions: including illegal entry and tailgating alarms;
lAnti-rush function. When no gate opening signal is received, the swing arm will automatically lock;
lTelescopic arm synchronization function;
lIt has an automatic reset function. After the gate is opened, if the user does not pass within the specified time, the system will automatically cancel the user's right of passage for this time. The standard is to automatically reset 5 seconds after opening;
lThe passage will automatically open when the power is off and automatically close when the power is on; The motor has low noise
lIt can be connected to a variety of card reading devices and work by receiving relay switch signals;
lIt can control the entry and exit of personnel in one - way or two - way mode;
lRemote control and management can be directly realized through the management computer;
2.2Expandable functions:
lCounting function;
lChassis lengthening and selection of telescopic arm materials.
3Main structure and configuration
l2 standard chassis (The two sides of the chassis are inclined and arc - shaped)
l2 telescopic arms (Colors are optional)
l2 main control boards
l2 transformers
l2 motors
l2 sets of movement and transmission parts
l3 pairs of infrared beam detectors
l2 alarms (lights)
l2 standard direction indicator boards (Multiple can also be configured according to requirements)
4Standard technical parameters
lChassis size: 1200 long*300Width*1000Height (MM)
lTelescopic arm length:285mm
lChannel width:600mm
lWeight:140Kg
lChassis material: Domestic standard(304 No.)Stainless steel
lDrive motor: DC brushed motor (24V)
lInput interface: Relay switch signal or12V level signal or 12V pulse signal with pulse width > 100ms, driving current > 10mA
lNormal service life:3000,000 times
lCommunication interface:RS485 standard, communication distance:1200 meters
lLEDIndicator lights:2 pieces
lCard reading windows:2 pieces
lMaintenance openings:4 pieces
lPassage speed:30 - 40 persons/minute
lGate opening and closing time:1 second
lTime required to enter the passage state after power - on:3 seconds
lAutomatic reset time after a fault occurs:10 seconds
lWorking environment:
Indoor, outdoor (awning)
Temperature:-10℃——50℃
Relative humidity: ≤90%, no condensation
