Overview of Centrifugal Spray Dryer:
The centrifugal spray dryer is the core equipment in modern industry for efficiently converting liquid materials into high-quality powders. Its working principle is that through a high-speed rotating centrifugal atomizer, the liquid raw materials are instantly scattered and stretched to form a fine mist net. At the same time, hot air is precisely introduced into the drying tower and comes into contact with the mist droplets in an efficient co-current or counter-current flow, so that the moisture evaporates rapidly within a few seconds, and finally a uniform and dry powder product is obtained.
The essence of this process lies in "instantaneous drying". The extremely high heat and mass transfer efficiency enables even heat-sensitive substances (such as proteins, probiotics or natural extracts) to complete dehydration at a relatively low temperature, thus maximally retaining their active ingredients and natural properties. By precisely controlling the atomizer rotation speed, inlet air temperature and airflow mode, operators can flexibly control the particle size, moisture, solubility and fluidity of the finished powder to meet the strict requirements of many fields, from food milk powder, pharmaceutical raw materials to high-end ceramic powders and nanomaterials.
Therefore, the centrifugal spray dryer is not only a drying technology, but also a precise powder manufacturing system. It realizes an elegant transformation from "liquid" to "powder" in an efficient, continuous and controllable industrial way, and is an indispensable key link in the modern production line that pursues product quality and process efficiency.
System Flow Chart of Centrifugal Spray Dryer
Application of Spray Dryer in the Production of Lithium Manganese Iron Phosphate:
In the production process of lithium manganese iron phosphate (LiMnxFe1-xPO₄, abbreviated as LMFP) cathode materials, the importance, application principle and core value of the spray dryer are highly similar to those in lithium iron phosphate (LFP). However, due to the more complex composition of the LMFP material system, poorer conductivity, and the tendency of manganese elements to have variable valence and dissolve, the requirements for precise control of the spray drying process are higher, and its role is also more crucial.
The three core roles of the spray dryer in the lithium manganese iron phosphate drying process are as follows:
Realize atomic-level mixing and structure locking (the most crucial:
After the synthesis by the liquid-phase method, Mn and Fe have achieved a preliminary uniform distribution in the nano-precursor particles. Spray drying instantly dries the slurry containing these nano-particles and quickly "freezes" this uniform microstructure, effectively preventing the Mn/Fe phase separation that may be caused by different diffusion rates during the subsequent drying and sintering processes, and ensuring a single and clear voltage platform.
Construction of a uniform conductive carbon network and surface coating:
Similar to the LFP process, the carbon source is uniformly mixed with the LMFP nano-slurry and then spray-dried, so that the carbon source precursor is uniformly embedded in every corner of the LMFP secondary spheres. After sintering and carbonization, a three-dimensional continuous conductive carbon network and a dense surface carbon layer are formed. This significantly improves the electronic conductivity of the material, compensates for its inherent low conductivity, and provides a physical barrier to inhibit manganese dissolution.
Precise control of the morphology of secondary particles:
By controlling the atomization parameters (centrifugal speed/pressure) and drying kinetics (temperature, wind speed), secondary particles with good sphericity, narrow particle size distribution (D50 is usually between 5-20μm), and controllable porosity can be prepared.
High tap density: Spherical particles are beneficial for increasing the electrode compaction density and improving the volumetric energy density.
Optimized ion transport: An appropriate porous structure can shorten the lithium-ion diffusion path and improve the rate performance.
Excellent processability: Spherical powder has good fluidity, resulting in high stability of the electrode slurry, uniform coating, and is suitable for large-scale manufacturing.
Industries suitable for centrifugal spray drying:
Food industry
Production of milk powder, soy milk powder, coffee powder, fruit juice powder, egg powder, yeast, and fruit and vegetable powder.
Drying of seasonings (such as soy sauce powder, yeast extract) and food additives (essences, pigments).
Low-temperature drying of functional foods (probiotics, enzyme preparations) to protect active ingredients.
Pharmaceutical industry
Drying of bulk drugs such as antibiotics, vitamins, and traditional Chinese medicine extracts.
Preparation of spray-dried microcapsules for drug sustained release or taste masking (such as granules, capsule fillers).
Chemical Industry and Materials
Granulation of dyes, pigments, ceramic powders, catalysts, and polymer particles (such as PVC, PE).
Preparation of precursors for nanomaterials and battery cathode and anode materials (such as lithium battery materials).
Environmental Protection and Bioengineering
Sludge drying in wastewater treatment and immobilization of microbial agents (such as biopesticides).
Drying of bioactive products such as enzymes and single-cell proteins.
Other Industries
Cosmetics (foundations, talcum powder), ceramic glazes, wettable pesticide powders, etc.

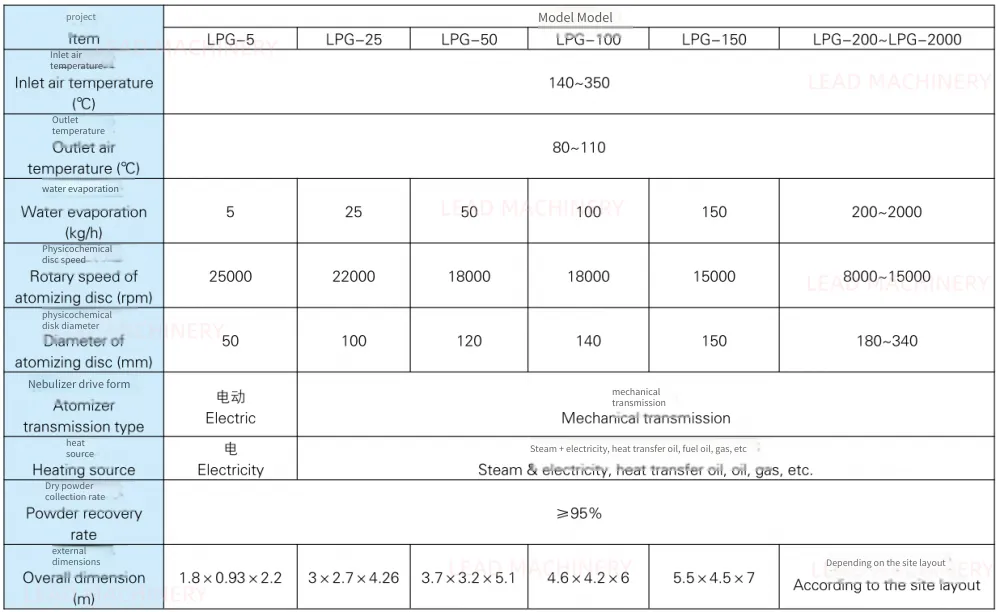

Technical Parameters of Centrifugal Spray Dryer
