1. Product Overview

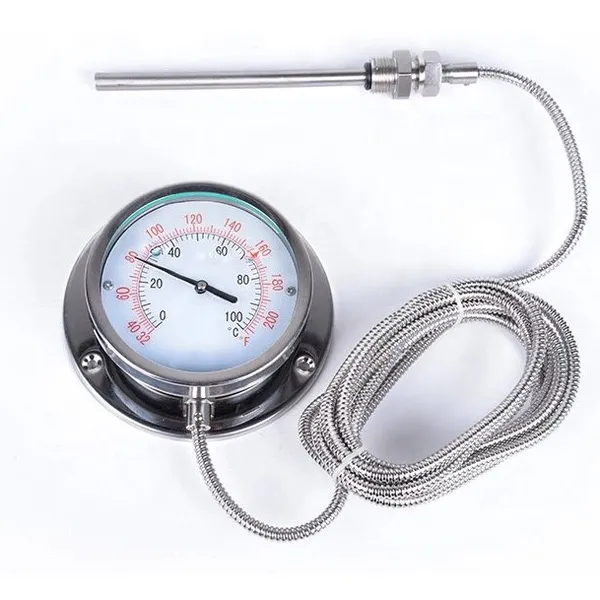

KY GT is an industrial stainless steel mechanical temperature gauge, specifically designed for temperature measurement of steam, gases, and high-temperature media. It features a 100mm or 160mm dial diameter, flange mounting, and is equipped with a capillary remote transmission system that accurately transfers temperature changes from the measurement point to the dial indicator.

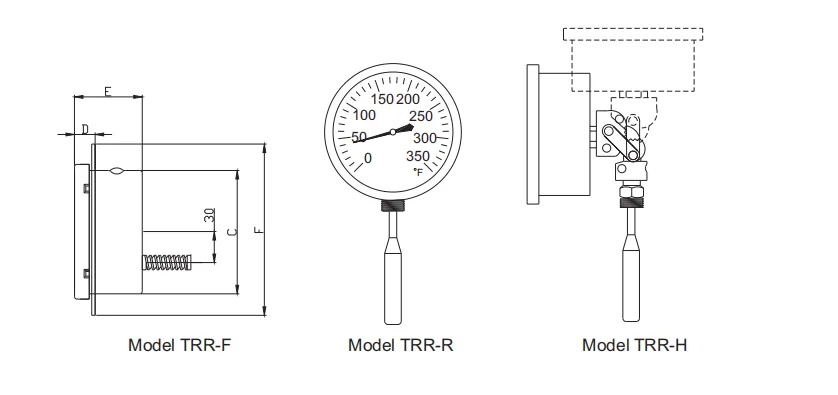

2. Diagram
3.
3.Applications:
Steam Systems: Temperature monitoring for boiler steam pipes, steam headers, heat exchangers, and drying equipment.
Industrial Heating: Temperature indication for thermal oil heaters, reactors, ovens, and heat treatment equipment.
Energy & Power: Temperature monitoring for power plant turbines, district heating pipelines, and compressed air systems.
Chemical & Refining: Local temperature display for process pipelines, storage tanks, and reactors.
-
Food & Pharmaceutical: Sanitary temperature monitoring for autoclaves, fermentation tanks, and CIP systems (requires sanitary design).
We provide customized temperature measurement solutions. Contact us detailed support.
