CE Certified PT100 Thermal Resistance Detector RTD With 304 Stainless Steel Probe for Industrial Use Explosion Proof
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty:
12month
Usage:
Industrial
Standard:
Celsius/Fahrenheit
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
Kyue OEM Stainless Steel Temperature Sensor From 4-20mA for Air Conditioners and Refrigerators 2-wireUS$ 8 - 10MOQ: 1 Piece -
Multichannel Signal Isolator 4-20mA Temperature Input Isolated Barriers Temperature Isolated Transducer RTD Input TC Input EX SILUS$ 26 - 28MOQ: 1 Combo
-
Isolation Transmitter Input Signal Range HART Isolating Barrier or HART Signal ConditionerUS$ 26 - 28MOQ: 1 Combo
-
Kyue Explosion-proof Temperature Transmitter 4-20mA/RS485 Customizable Range -50-1300℃ Industrial TransmitterUS$ 100MOQ: 1 Piece
-
High Temperature Industrial Thermocouple Stove and Pipe Thermocouple SensorUS$ 20MOQ: 1 Combo
Warranty
12month
Usage
Industrial
Standard
Celsius/Fahrenheit
After-sales Service
support
Hygrometer Type
Other, RTD
Accuracy
Other, Class A ,class B
Display
Other
Material
Resistance
Transport Package
carton
Trademark
Kyue
Origin
Tianjin
1.Product Overview
The KY-100TC is an industrial-grade general-purpose thermocouple temperature sensor. The product operates based on the thermoelectric effect (Seebeck effect), accurately detecting temperature by measuring the thermoelectric electromotive force generated between the measuring junction (hot junction) and the reference junction (cold junction). It features a robust structure, fast response, wide temperature measurement range, and excellent stability, making it a fundamental component for industrial process temperature measurement.
2.Technical Specifications (Typical for Type K)
| Parameter Category | Specification |
|---|---|
| Product Model | KY-100TC |
| Thermocouple Type | Type K (Nickel-Chromium / Nickel-Alumel) [Optional: J, E, T, N, S, R, B, and other types] |
| Temperature Range | -200℃ ~ +1200℃ (Typical for Type K, actual range depends on sheath material) |
| Accuracy Class | Class 1 Class 2 |
| Response Time | τ0.5 |
| Insulation Resistance | ≥100 MΩ (at room temperature, 500 VDC) |
| Sheath Diameter | Φ3mm ~ Φ25mm (Sheathed or assembled, customizable) |
| Sheath Material | 304 Stainless Steel (Standard), 316 Stainless Steel, 321 Stainless Steel, GH3030, Ceramic, etc. |
| Process Connection | M16×1.5 Thread, Flange (DN15/20/25), Compression Fitting, Fixed Saddle, No Mounting, etc. |

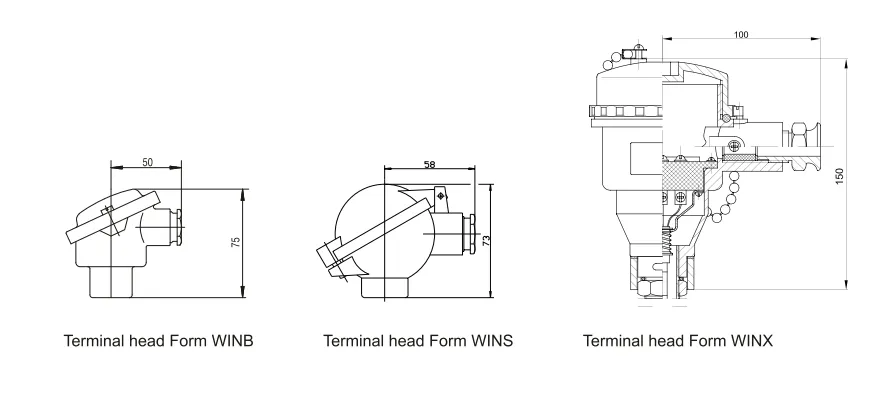

| Connection Head Type | Explosion-Proof (Ex d IIC T6), Weatherproof (IP65/IP67), Simple Type |
| Lead Wire Length | Standard 1 meter (Compensation cable), customizable length (up to hundreds of meters) |
3.Typical Application
| Industries | Application scenarios |
| Industrial Furnaces & Kilns | Heat treatment furnaces, sintering furnaces, glass melting furnaces, cement rotary kilns. |
| Chemical & Petrochemical | Process temperature monitoring of reactors, distillation columns, pipelines, and storage tanks |
| Energy & Power | Hot spot monitoring for boilers, steam turbines, gas turbines, and generator sets. |
| Metallurgical Industry | Temperature measurement in blast furnaces, hot blast stoves, continuous casting, and steel rolling lines. |
| Machinery Manufacturing: | Plastic machinery, rubber machinery, ovens, drying equipment. |
| Food & Pharmaceutical | Autoclaves, fermentation tanks, drying equipment (requires sanitary design). |
| Laboratory & R&D | Precision temperature measurement in various high/low-temperature experimental setups. |
For more detailed selection information or technical consultation, please contact us.
