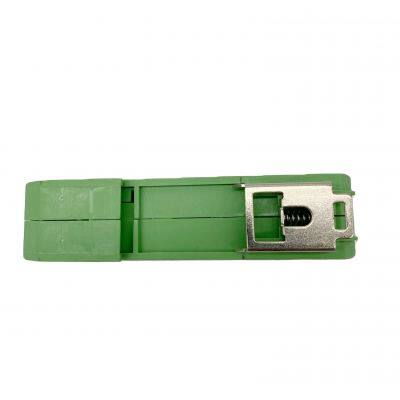

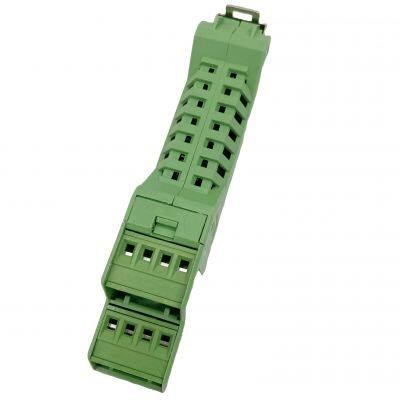

Help CenterMultichannel Signal Isolator 4-20mA Temperature Input Isolated Barriers Temperature Isolated Transducer RTD Input TC Input EX SIL
Related Products
-
Isolation Transmitter Input Signal Range HART Isolating Barrier or HART Signal ConditionerUS$ 26 - 28MOQ: 1 Combo -
Kyue Explosion-proof Temperature Transmitter 4-20mA/RS485 Customizable Range -50-1300℃ Industrial TransmitterUS$ 100MOQ: 1 Piece
-
OEM Smart Temperature Transmitter PT100 RTD TC 2-wire HART RS485 Wall-mountedUS$ 120 - 125MOQ: 1 Piece
-
Dial Inline Pipe Thermometer Industrial Bimetal Analog Pipe 15cm Bimetallic Thermometer for Industrial Water Heater PipeNegotiableMOQ: 1 Piece
-
Kyue PGT Pressure Type Thermometer OEM/ODM Customizable Gas Temperature Measurement Instrument Capillary TubeNegotiableMOQ: 1 Piece
1.Product overview
This temperature input isolated barriers, converter RTD/TC signals in hazardous area into 4~20mA or 0/1~5V signals and output to safe area. It can be configured by computer. The product needs an independent power supply and galvanic isolation among power supply, input and output.
2.Specifications
Supply Voltage：20~35V DC
Current Consumption： Safe-area
Output： ≤45mA(Supply voltage: 24V; Output: 20mA)
Output Current：4~20mA；Load resistance：RL≤300Ω
Output Voltage：1~5V；
Load resistance：RL≥35kΩ (Customers need specify current output or voltage output when ordering)
Temperature Drift：0.01%F.S./℃ CJC：±1℃(Compensation range：-20℃~+60℃)
Response Time(0~90%)：≤1.2s
Power Supply Protection：Power supply reverse protection
EMC：According to IEC 61326-1(GB/T 18268), IEC 61326-3-1
Ambient Temperature： -20℃~+60℃
Dielectric Strength：
Between non-intrinsically safe part and intrinsically safe part ≥2500V AC
Between power supply part and output part ≥500V AC
Insulation Resistance：
Between non-intrinsically safe part and intrinsically safe part ≥100MΩ
Between power supply part and output part ≥100MΩ
Structure：GS8500 range structure customized by Phoenix Contact
Weight：Approx.150g Suitable
Location：Mounting in safe area, and connected to the IS apparatus in hazardous area up to zone0 IIC and zone20 IIIC.
Suitable Field Apparatus：2-wire or 3-wire RTD, TC
3.Contact us for more details .
