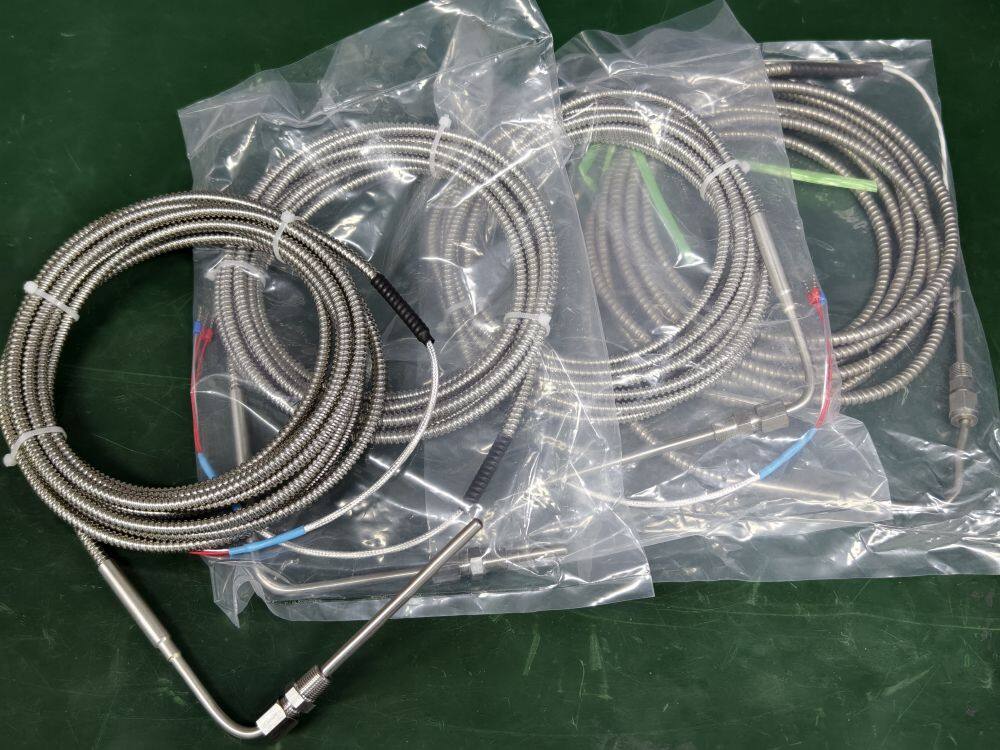

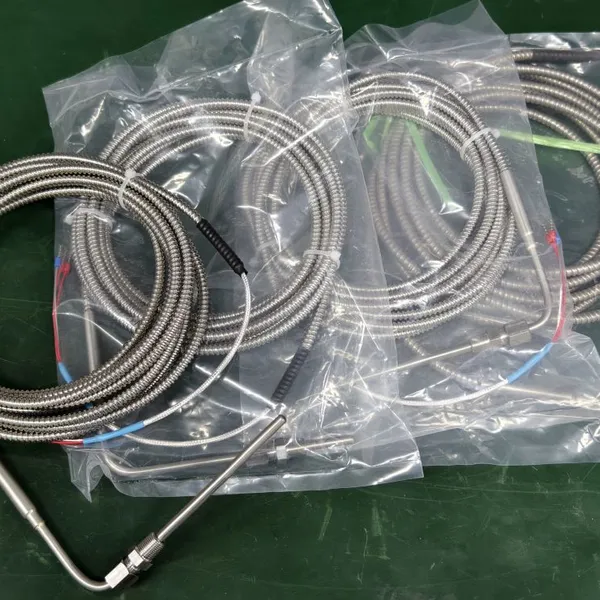

Kyue OEM Stainless Steel Temperature Sensor From 4-20mA for Air Conditioners and Refrigerators 2-wire

Kyue (Tianjin) Measurement & Control Technology Co., Ltd. Silver Verified Supplier

1Yr

US$ 10 1 - 49 Piece

US$ 8 ≥50 Piece

Key Specifications

Warranty:

12months

Usage:

Industrial

Standard:

Celsius/Fahrenheit

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

20 days

Warranty 12months

Usage Industrial

Standard Celsius/Fahrenheit

After-sales Service support

Hygrometer Type Other, temperature sensor

Accuracy Other, CLASS A OR B

Display Digital

Material Thermocouple

Transport Package carton

Trademark KYUE or customized

Origin Tianjin

1. Product Overview

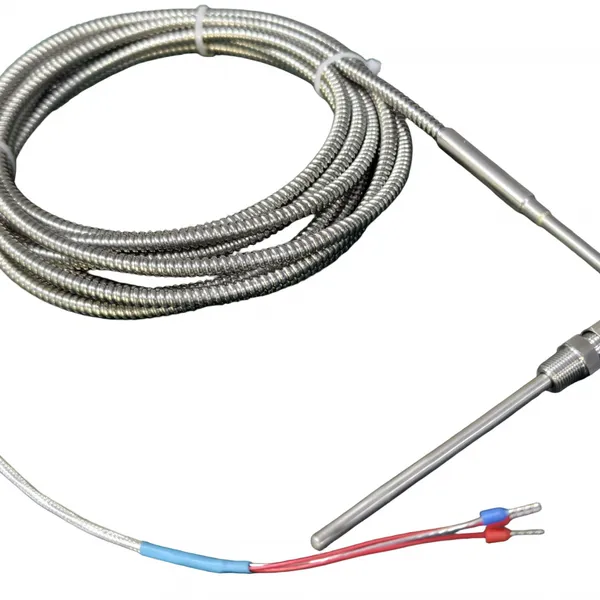

Typical Structure:

Sensing Element: The core consists of platinum resistance wire or thin-film of PT100 or PT1000.
Protection Tube (Sheath): Typically made of stainless steel (e.g., SUS304, SUS316) to shield the internal element from mechanical damage, corrosion, or high pressure. Shapes include straight rods, elbows, etc.
Insulation Material: Such as magnesium oxide (MgO), used to fill the gap between the element and the protection tube, providing thermal conductivity, insulation, and fixation.
Connection Head: Such as M12 connectors, aviation plugs, or directly attached leads for connecting to transmitters or meters.
Mounting Thread: Such as G1/2", NPT 1/2", etc., for fixing to equipment or pipelines.

Main Types of Probes (by Encapsulation):

Armored Probe: Robust structure, pressure and corrosion resistant, suitable for industrial environments.
Surface Probe: Used for measuring the temperature of object surfaces.
Immersion/Insertion Probe: Used for measuring the temperature of liquid or gas media.
Air Probe: Features heat sinks or an open structure for measuring air temperature.

2. Technical Specifications

2.1 Basic Parameters

Parameter	Specification
Sensor Type	Platinum Resistance Temperature Detector (RTD)
Nominal Resistance	1000 Ω @ 0°C
Temperature Coefficient	0.00385 Ω/Ω/°C (Conforms to IEC 60751 Class A/B)
Measurement Range	-200°C ~ +600°C (Extended ranges optional)
Accuracy Class	Class A: ±(0.15 + 0.002\|t\|)°C Class B: ±(0.30 + 0.005\|t\|)°C

2.2 Structural Characteristics

Parameter	Specification
Protection Tube Material	SUS316L Stainless Steel (Standard) Optional: Hastelloy C276, Titanium Alloy, Monel
Protection Tube Diameter	Φ3mm, Φ4mm, Φ6mm, Φ8mm (Common Specifications)
Mounting Method	Thread Mounting: M16×1.5, G1/2″, NPT 1/2″ Flange Mounting: DN15/25/40, PN16/40
Insertion Depth	50mm ~ 2000mm (Customizable per requirements)
Protection Rating	IP67 (Standard), IP68 (Optional)

2.3 Electrical Characteristics

Parameter	Specification
Wiring Configuration	2-wire, 3-wire, 4-wire (Recommended)
Cable Specification	Teflon-insulated silver-plated copper wire, Temp. resistant 200°C
Insulation Resistance	≥100 MΩ @ 500VDC, 25°C
Response Time	τ₀.₅: 0.5-3.0s (Depending on protection tube diameter) τ₀.₉: 2.0-8.0s
Self-Heating Effect	<0.1°C/mW (In still air)

3.Applications:

Industries	Scenorios
Energy & Power	Power plants ,power transmission & distribution systems ,new energy
Petroleum & Chemical	Refining & chemical units ,pipelines & storage tanks ,hazardous areas
Metallurgy & Mining	High temperature process ,rolling & heat treatment ,mining equipment
Pharmaceutical & Food	Pharmaceutical processes ,food processing ,cleanrooms
Environmental & Municipal	Wastewater treatment ,district heating networks ,smart agriculture
Transportation	Rail transit ,cold chain logistics ,marine &aviation
Smart Manufacturing & Laboratories	Industrial IOT, laboratory research,predictive maintenance
Building& infrastructure	HVAC systems ,energy management ,data centers
