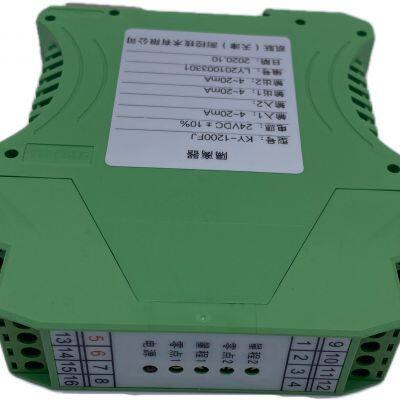

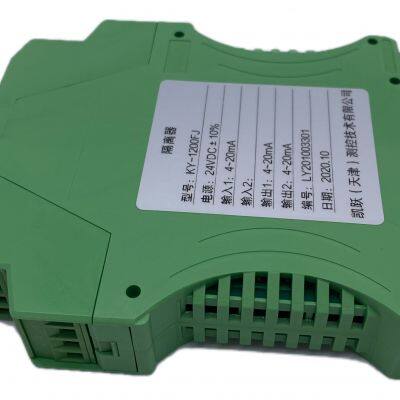

Isolation Transmitter Input Signal Range HART Isolating Barrier or HART Signal Conditioner
US$ 28
1 - 49 Combo
US$ 26
≥50 Combo
Key Specifications
Get Latest Price
Certification:
CE
Display Type:
Other, RS485，HART
Measuring Medium:
Temperature
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
Kyue Explosion-proof Temperature Transmitter 4-20mA/RS485 Customizable Range -50-1300℃ Industrial TransmitterUS$ 100MOQ: 1 Piece -
High Temperature Industrial Thermocouple Stove and Pipe Thermocouple SensorUS$ 20MOQ: 1 Combo
-
KY1004 Hirschmann Integrated Temperature Pressure Transmitter Sensor 4-20mA IP65 Temperature Sensor 316SS Temperature SwitchUS$ 30 - 60MOQ: 1 Piece
-
Digital Temperature Switch 316SS Temperature Switch for Hydraulic SystemNegotiableMOQ: 1 Piece
-
Textile Industry Capillary Silicon Oil Filled Pressure Type Thermometer With Staineless Steel Probe Oil Thermometer for Chemical IndustryNegotiableMOQ: 1 Piece
Certification
CE
Display Type
Other, RS485，HART
Measuring Medium
Temperature
Site Display
Not Site Display
Customized
Customized
Type
Other
IP Rating
IP65
Accuracy
0.1
Transport Package
carton
Specification
118.9mm×106.0mm×12.5mm
Trademark
Kyue
Origin
China
1.Product overview

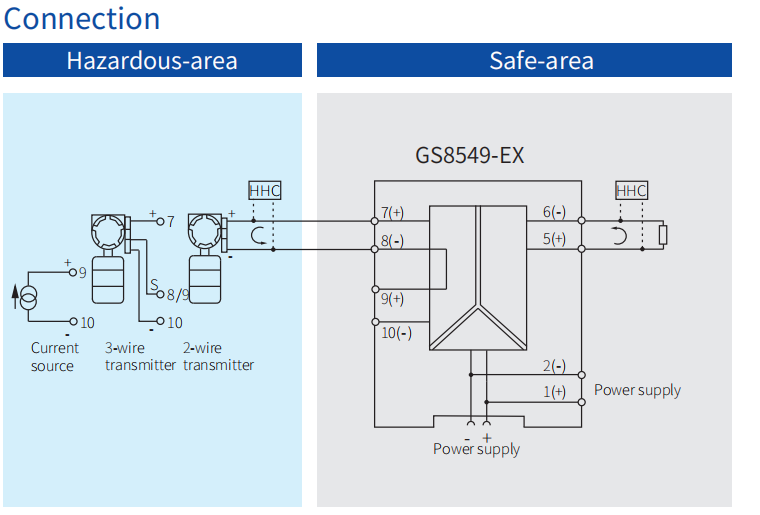

2-wire (HART) transmitter, 3-wire transmitter, current source isolated barrier, provide isolated power supplies for transmitter which located in hazardous area. Transfer the 4~20mA signal from hazadous area to safe area. It also allows bi-directional transmission of HART communication signals. The product needs an independent power supply and galvanic isolation among power supply, input and output.
2.Specifications
| Feature | Specification |
|---|---|
| Application | Interface for 2/3-wire transmitters in hazardous areas |
| Field Connection | 2-wire (2 terminals) or 3-wire (3 terminals) |
| Signal | 4–20 mA analog with superimposed bi-directional HART |
| Power Supply | 20–35 V DC (typically 24 V DC), independent source |
| Isolation | Tri-port isolation: Power / Input (Haz.) / Output (Safe) |
| Intrinsic Safety | Complies with ATEX, IECEx, FM standards (e.g., [Ex ia] or [Ex ib]) |
| Hazardous Area | Approved for use in Zone 0/1 or Division 1 |
| Accuracy | Typically ±0.1% of span (for analog signal) |
| Mounting | DIN-rail mount (common for such barriers) |
3.Contact us for more details .
