EN-090 EN-090 low-frequency vibration sensor, used to measure bearing housing vibrations, can provide meaningful information for the comprehensive condition assessment of rotating or reciprocating machinery. Machines for which bearing housing vibrations can be measured using a vibration velocity sensor include: machinery with rolling bearings; machinery with oil-film sliding bearings.

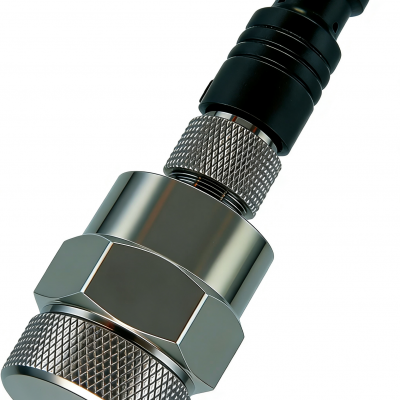

EN-090 Low-Frequency Vibration Sensor
The magnetoelectric vibration velocity sensor is an inertial sensor that uses the principle of electromagnetic induction to convert vibration signals into voltage signals. The voltage value is proportional to the vibration velocity and can be used for vibrations of various rotating machinery bearing housings or structures relative to free space. It is directly mounted on the exterior of the machine, making it very easy to use and maintain. Measuring bearing housing vibrations can provide meaningful information for comprehensive operational evaluation of rotating or reciprocating machinery. Machinery that can use vibration velocity sensors to measure bearing housing vibration includes machines with rolling bearings and machines with oil-film sliding bearings.
Product Classification and Key Parameters
The magnetoelectric vibration velocity sensor is an inertial sensor that uses the principle of electromagnetic induction to convert vibration signals into voltage signals. The voltage value is proportional to the vibration velocity and can be used for vibrations of various rotating machinery bearing housings or structures relative to free space. It is directly mounted on the exterior of the machine, making it very easy to use and maintain. Measuring bearing housing vibrations can provide meaningful information for comprehensive operational evaluation of rotating or reciprocating machinery. Machinery that can use vibration velocity sensors to measure bearing housing vibration includes machines with rolling bearings and machines with oil-film sliding bearings.
EN-090 Low-Frequency Vibration Sensor - Product Classification and Key Parameters
Main Applications
Sensitivity
Sensitivity Error
Frequency Range
EN080 Velocity Sensor
Vibration monitoring of turbines TSI / fans / compressors / pumps for bearing vibration measurement
20 mV/mm/s
≤±5%
10 Hz~1000 Hz (-3 dB)
EN090 Low-Frequency Velocity Sensor
Bearing vibration, hydro turbine oscillation monitoring, vibration measurement in low-speed machinery and civil engineering structures
Displacement Type
5 V/mm
≤±2%
0.5 Hz~200 Hz (-3 dB)
