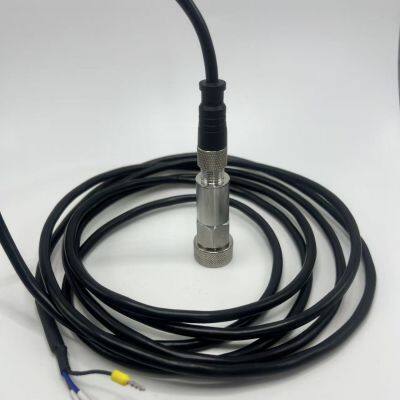

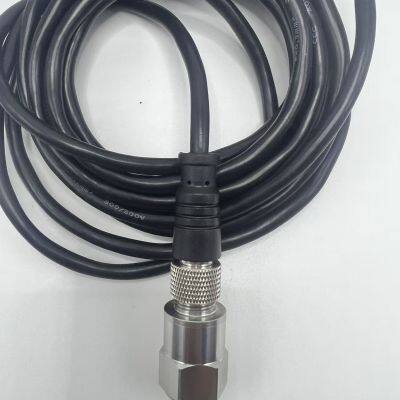

RZ-810T Integrated Vibration and Temperature Transmitter
The RZ-810T Integrated Vibration and Temperature Transmitter can simultaneously measure temperature and vibration. The temperature and vibration values are output as corresponding two-wire 4-20mA signals, which can be directly connected to PLC or DCS systems. This product is reasonably designed, has a simple structure, stable performance, and is easy to use, making it the optimal choice for monitoring faults in factory equipment such as fans.
Technical Parameters:
1. Frequency Range: 10–1000 Hz
2. Measurement Range: Vibration: 0–20 mm/s
Temperature: 0°–100°
3. Signal Output: 4–20 mA
4. Output Impedance: ≤500 Ω
5. Operating Voltage: DC 24V ±10%
6. Wiring Method: Vibration two-wire: Brown – 24V, Black – 4-20mA
Temperature two-wire: Blue – 24V, Gray – 4-20mA
7. Measurement Direction: Any
8. Operating Environment: Temperature -30℃ to 80℃, Relative Humidity ≤90%
9. Dimensions: 24*56 mm
10. Mounting Specification: Screw (M8*1.25) or magnetic base
11. Weight: Approximately 300 g
Note: Connect the shielded wire to ground.
