1.Product Overview

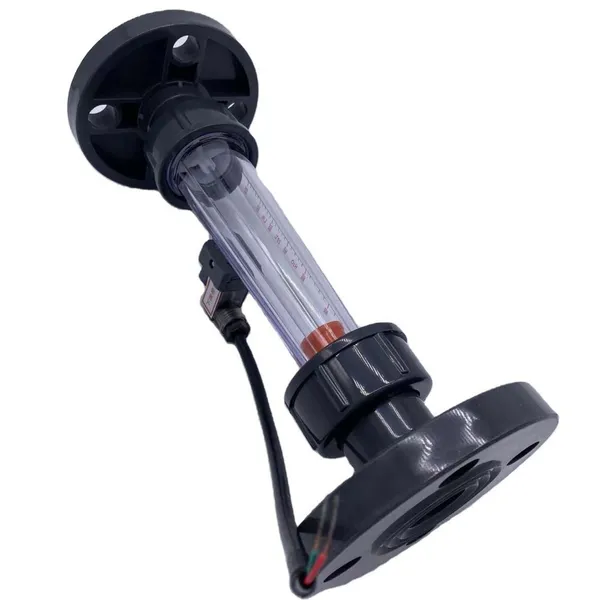

The plastic tube float flowmeter is a visual flow instrument based on the variable area measurement principle. Its measurement tube is made of transparent engineering plastics (such as polycarbonate PC, polysulfone PSU, or acrylic resin PMMA). The flow rate is indicated by the vertical position of a float inside the tapered tube, which changes with the flow rate. This meter features a simple structure, intuitive reading, cost-effectiveness, and corrosion resistance. It is widely used for low-pressure, small-flow measurement of clean liquids or gases.
2.Main Technical Specifications
| Parameter | Liquid Measurement |
|---|---|
| Diameter | DN15 – DN50 |
| Flow Range | Water: 1 – 50 L/min |
| Accuracy | ±4% FS |
| Working Pressure | ≤0.6 – 1.0 MPa (depending on material) |
| Working Temperature | -10℃ ~ +80℃ (PC tube) -10℃ ~ +120℃ (PSU tube) |
| Medium Compatibility | Water, acid/base solutions, organic solvents (material compatibility required) |
3.Product Features
✅ Intuitive Visual Reading: No power required; flow rate read directly from the scale
✅ Corrosion Resistant: Plastic measurement tube and fittings resist various chemical media
✅ Low Pressure Loss: Simple flow path with minimal pressure drop
✅ Easy Installation: Vertical installation required; no straight pipe sections needed before or after
✅ Cost-Effective: Low cost and easy maintenance
4.Typical Application Fields
Water Treatment: Flow monitoring in reverse osmosis systems, filter backwashing
Chemical Laboratories: Reagent addition, flow indication for reactor feeding
Environmental Protection Equipment: Chemical dosing in wastewater treatment, sampling flow measurement
Semiconductor and Electronics: Monitoring of ultrapure water and chemical delivery
Medical Equipment: Liquid flow control in dialysis machines and analytical instruments
HVAC: Flow indication for cooling water and softened water
For further details such as chemical compatibility charts or installation diagrams, please feel free to request additional information.
