Home > Electrical & Electronics > Transmitter > Flow Transmitter > DN15-DN1000 OEM Digital Display Stainless Steel Vortex Flow Meter Sensor High Accuracy Liquid Gas Effective Flow Measurement
DN15-DN1000 OEM Digital Display Stainless Steel Vortex Flow Meter Sensor High Accuracy Liquid Gas Effective Flow Measurement
US$ 200
≥1 Piece
Key Specifications
Get Latest Price
Certification:
CE
Display Type:
Other, site display ,remote display
Measuring Medium:
Other, steam ,liquid ,gases
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
Factory Direct Faraday-type DN15 Magnetic Flow Meter 4-20ma Rs485 Hart Electromagnetic Flowmeter for Liquids ,pastes ,slurriesUS$ 200MOQ: 1 Piece -
Kyue Clamp-on Wallmounted Ultrasonic Flowmeter Non-contact Flowmeter Non-intrusive Ultrasonic Flow Meter for Sewage Heat MeterUS$ 200 - 500MOQ: 1 Combo
-
Kyue KTF200Turbine Flowmeter 4-20mA Pulse RS485 Diesel Fuel Hot Water Flow Meter Flow Sensor DN15 Industrial AutomationNegotiableMOQ: 1 Piece
-
Kyue Swirl Flowmeter RS485 With Computer Chips Swirl Vortex Flowmeter With Pressure Temperature Compensation Gas Steam Liquid UseNegotiableMOQ: 1 Combo
-
Factory OEM Price Gas Steam Liquid Throttling Device Orifice Plate Flow Meter -50-550℃ Ideal for Steel & Chemical ApplicationsUS$ 200 - 450MOQ: 1 Piece
Certification
CE
Display Type
Other, site display ,remote display
Measuring Medium
Other, steam ,liquid ,gases
Accuracy Grade
Other, 1.0% 1.5%
Customized
Customized
Connection Type
Thread Type
IP Rating
IP65
Power supply
24VDC
Transport Package
1pcs/cartons
Specification
DN15-DN300-DN1000
Trademark
Kyue
Origin
Tianjin ,China
1.Product Overview
The KVF200 vortex flow meter is a fluid oscillation-type flow instrument based on the Kármán Vortex Street principle. It calculates flow velocity and rate by measuring the alternating vortex shedding frequency generated downstream of a non-streamlined bluff body (vortex shedder). It features no moving parts, a wide turndown ratio, and broad media compatibility.
2.Technical specifications
Velocity Range
| Parameter Category | Technical Specification Description |
|---|---|
| Measured Media | Gases, steam (saturated/superheated), liquids (single-phase or with minimal bubbles/particles) |
| Nominal Diameter | DN15 ~ DN300(flanged type), expandable to DN1000 (insertion type) |
| Accuracy Class | Liquid: ±1.0% of reading, Gas/Steam: ±1.5% of reading (higher accuracy ±1.0% available) |
| Media Temperature | -25℃~100℃ ，-25℃ ~ +250℃(high temperature) |
| Nominal Pressure | PN15~ PN40 (standard), high-pressure type up to PN100 (10MPa) and above |
| Output Signal | 4~20mA (analog), pulse/frequency, RS485 (Modbus), HART |
| Power Supply | 12~36 VDC (2-wire/3-wire), 3.6V lithium battery (local display type) |
| Protection Rating | IP66 |
| Velocity range | 0.4-7.0m/s(liquid) ,4.0-6.0.0m/s(gas),5.0-70.0m/s(steam) |
| Range |
1.2-2000m³/h（liquid）,5-11000m³/h（gas） |
3.Applications
| Industry | Primary Measured Media & Applications |
|---|---|
| Energy & Heating | Boiler steam measurement (custody transfer/energy management), district heating steam/hot water, compressed air |
| Petrochemical | Feedstock gas, process gases, light oil products, cooling water, nitrogen |
| Utilities | City gas (medium/low pressure), tap water, aeration flow in wastewater treatment |
| Pharmaceutical & Food | Pure steam (WFI/SIP systems), clean gases, process water |
| Metallurgy & Machinery | Oxygen, nitrogen, argon, and other industrial gases, cooling water |

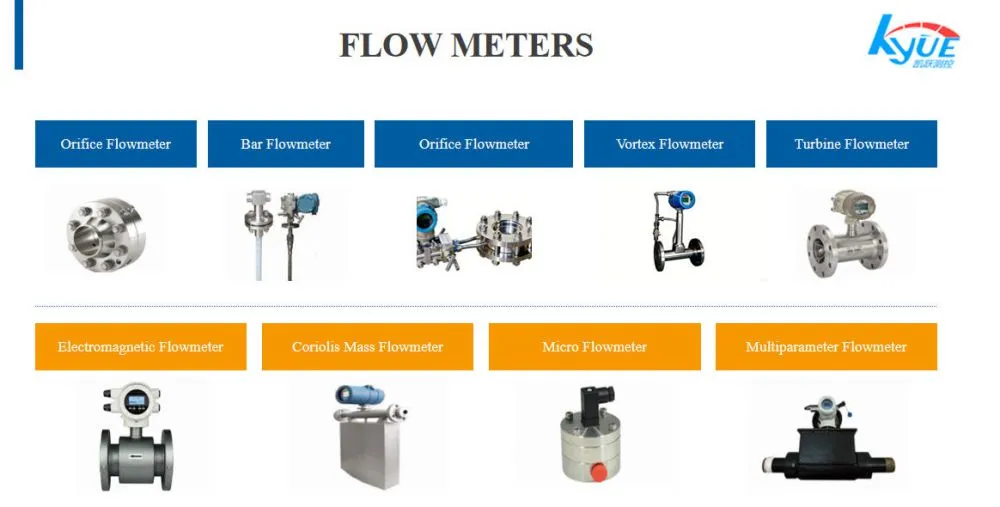

More flowmeters for choosing
4.Contact us
