Home > Electrical & Electronics > Transmitter > Flow Transmitter > Kyue Stainless Steel Oval Gear Flow Meter Oil Oval Gear Flow Meters Digital Display Flowmeters

Kyue Stainless Steel Oval Gear Flow Meter Oil Oval Gear Flow Meters Digital Display Flowmeters

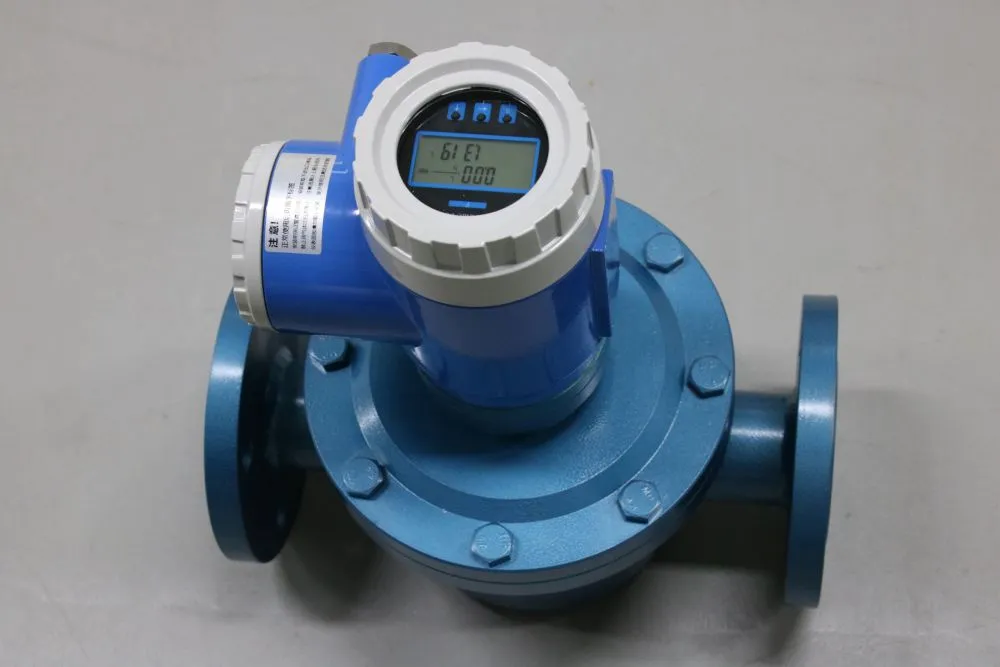

Kyue Stainless Steel Oval Gear Flow Meter Oil Oval Gear Flow Meters Digital Display Flowmeters photo-1

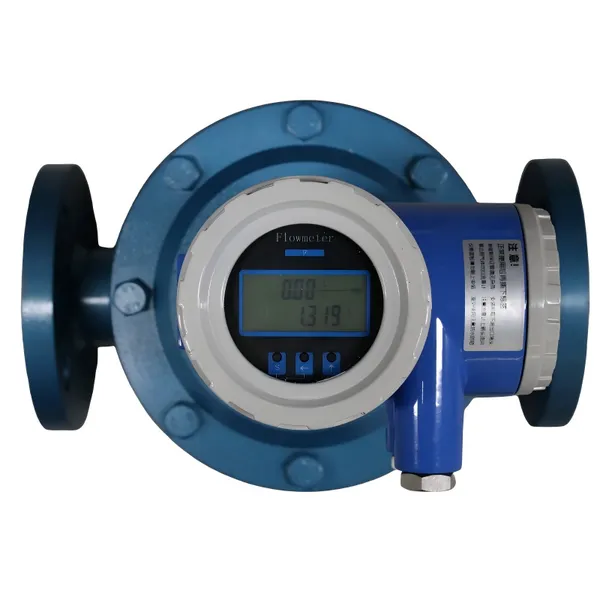

Kyue Stainless Steel Oval Gear Flow Meter Oil Oval Gear Flow Meters Digital Display Flowmeters photo-2

Product Spotlights

Nominal diameter DN10-DN200

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Certification:

Display Type:

Remote Display

Measuring Medium:

Liquid

Contact Supplier Request Quote Chat Now

Kyue (Tianjin) Measurement & Control Technology Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Certification CE

Display Type Remote Display

Measuring Medium Liquid

Accuracy Grade 0.5G

Customized Customized

Connection Type Thread Type

IP Rating IP65

output signal Hall & Pneumatic Reed Type Pulse Output

Power supply 24VDC

electric connection Hirschmann,

Transport Package carton

Trademark Kyue

Origin Tianjin

1.Product Overview
The precision oval gear flowmeter operates based on the positive displacement principle, achieving accurate fluid volume measurement through the rotation of high-precision meshing gears. Constructed with a combination of 316 stainless steel and die-cast aluminum, the product offers exceptional corrosion resistance and mechanical strength. It is widely applicable for flow measurement and control in scenarios involving high-viscosity, corrosive, and high-purity liquids.

2.Technical data

Model	KYF
Transmitter Type	LCD display
Medium	Fuel Oil, Petroleum, Petroleum Products, Vegetable Oil, Food, Chemicals
Accuracy	±0.2%, ±0.5%
Nominal Diameter	DN8~DN200 (1"~4")
Nominal Pressure	1.6~6.3MPa
Medium Temperature	-20 °C~+250 °C
Medium Viscosity	2~10000mPa.s
Power Supply	12VDC, 24VDC
Output Signal	Pulse, DC4~20mA, RS485
Display	Accumulative Flow, Single Measurement(Mechanical Dial), Remote transmission of total and instantaneous flow
Error Adjustment	Changing Gear Adjustment
Level Of Protection	IP65
Explosion Proof	Flame-proof Type, ExdIIBT4
Ambient Temperature	-20°C~+55°C
Sensor Material	Cast Iron, Cast Steel, Stainless Steel
Sensor Connection	Flange, Thread, Tri-clamp

3.Product Features

High-Precision Measurement: Maintains stable accuracy across a wide viscosity range, with special media accuracy up to ±0.2% F.S
Wide Turndown Ratio: Supports broad adjustment from 1:100 to 1:800, adapting to variable operating conditions
Strong Media Compatibility: Suitable for high-viscosity or corrosive media such as water, oils, chemicals, coatings, adhesives, and electrolytes
Reliable Structure: Features all-stainless-steel gears and die-cast aluminum housing with excellent pressure and temperature resistance
Stable Signal Output: Utilizes Hall/reed switch pulse output with strong anti-interference capability
Flexible Configuration: Supports customized designs for high-temperature, high-pressure, and fuel injection test bench applications
Easy Installation: Offers multiple process and electrical interface options to meet diverse on-site requirements

4.Application Areas

Petrochemical: High-precision measurement of crude oil, fuel oil, asphalt, and lubricants
Food & Beverage: Filling and dosing of edible oils, syrups, chocolate, and dairy products
Pharmaceuticals & Cosmetics: Quantitative control of medicinal liquids, glycerol, cosmetic bases, and fragrances
Automotive Manufacturing: Coating and dispensing of adhesives, sealants, coatings, and electrolytes
Chemical & Additives: Batch measurement of various corrosive liquids, polyurethanes, resins, and additives
Energy & Environmental Protection: Flow monitoring of biodiesel, wastewater treatment chemicals, and lubricants
