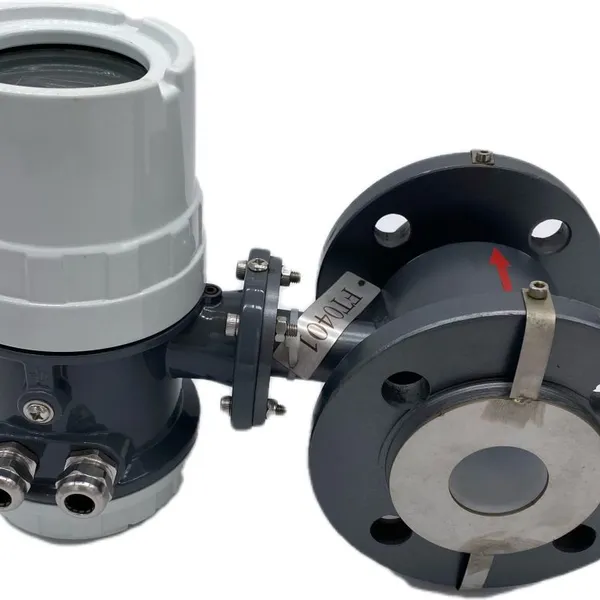

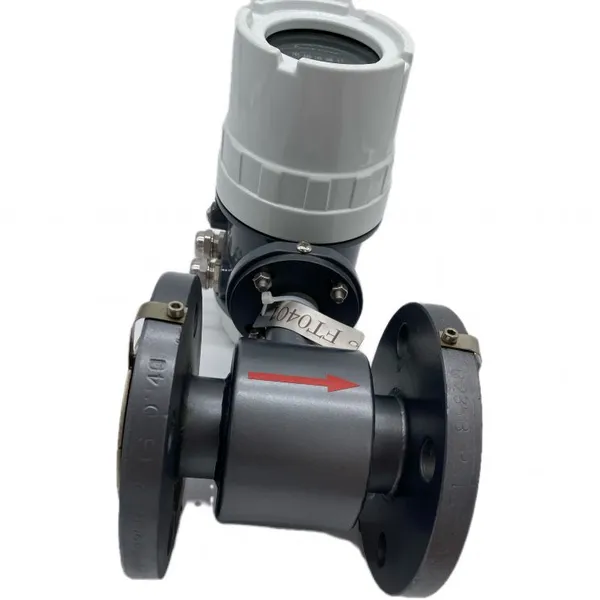

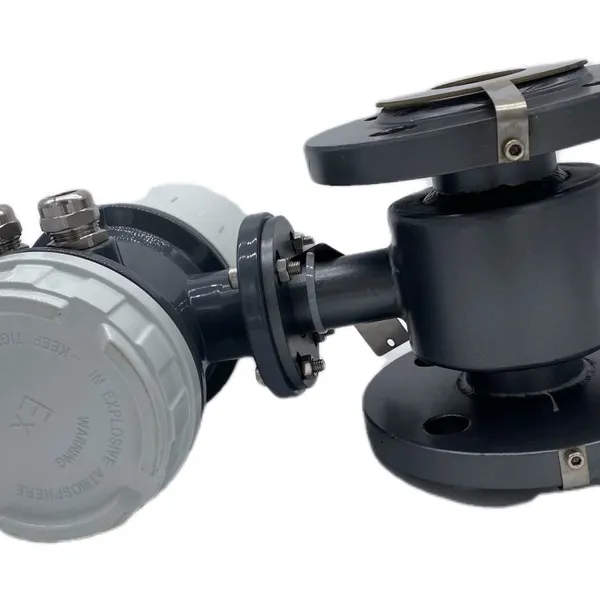

Help CenterFactory Direct Faraday-type DN15 Magnetic Flow Meter 4-20ma Rs485 Hart Electromagnetic Flowmeter for Liquids ,pastes ,slurries
Related Products
-
Kyue Clamp-on Wallmounted Ultrasonic Flowmeter Non-contact Flowmeter Non-intrusive Ultrasonic Flow Meter for Sewage Heat MeterUS$ 200 - 500MOQ: 1 Combo -
Kyue KTF200Turbine Flowmeter 4-20mA Pulse RS485 Diesel Fuel Hot Water Flow Meter Flow Sensor DN15 Industrial AutomationNegotiableMOQ: 1 Piece
-
Kyue Swirl Flowmeter RS485 With Computer Chips Swirl Vortex Flowmeter With Pressure Temperature Compensation Gas Steam Liquid UseNegotiableMOQ: 1 Combo
-
Factory OEM Price Gas Steam Liquid Throttling Device Orifice Plate Flow Meter -50-550℃ Ideal for Steel & Chemical ApplicationsUS$ 200 - 450MOQ: 1 Piece
-
Pitot Tube Flowmeter Steam Liquid Air Gas Annubar Type Annubar Flow Meter Throttling DeviceUS$ 300 - 900MOQ: 1 Combo
1.Product Overview

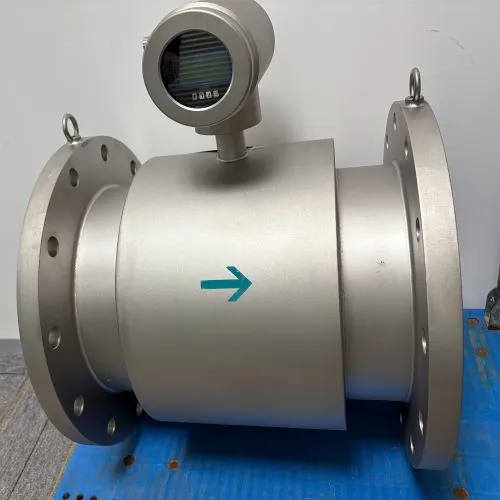

The KEF200 series intelligent electromagnetic flowmeter is developed based on Faraday's electromagnetic induction principle and weighted function magnetic field distribution technology. It is a high-stability, high-accuracy intelligent flow instrument designed to measure the flow of conductive liquids with conductivity greater than 5 μs/cm. Utilizing low-frequency rectangular wave excitation and intelligent converter technology, it ensures excellent zero-point stability with an accuracy of up to 0.5% or 0.2% and repeatability better than 0.25%. Its unique 4-8 multi-electrode structure further enhances measurement accuracy while eliminating the need for grounding rings, simplifying installation and maintenance.
2.Technical specifications
| Parameter | Details |
|---|---|
| Measuring Medium | Conductive Liquids,such as slurries ,pastes ,paper pulp |
| Operating Temperature | –25 ℃ to 180 ℃ |
| Transmitter Temperature | –25 ℃ to 80 ℃ |
| Repeatability | 0.15 %, 0.25 % |
| Conductivity | ≥0.5 μs/cm |
| Accuracy Class | 0.5 grade, 0.2 grade |
| Electrode Materials | 316 Stainless Steel, Hastelloy B, Hastelloy C, Tantalum, Titanium, Platinum, Tungsten Carbide, etc. |
| Output Signal | Standard: Pulse Output Optional: 4–20 mA, HART Protocol, MODBUS Protocol |
| Operating Pressure | 4.0 MPa, 1.0 MPa, 0.6 MPa, 0.25 MPa, 25 MPa, 70 MPa |
| Flow Velocity Range | 0.3 m/s – 12 m/s |
| Medium Temperature | Integral Type: ≤130 ℃ Separate Type: ≤160 ℃ |
| Protection Rating | IP66 |
| Lining Materials | CR (Neoprene), PTFE, FEP, PU, etc. |
| Power Consumption | 0.65 W |
| Flange Material | 304 Stainless Steel, 20# Carbon Steel, Other Materials (Special Order) |

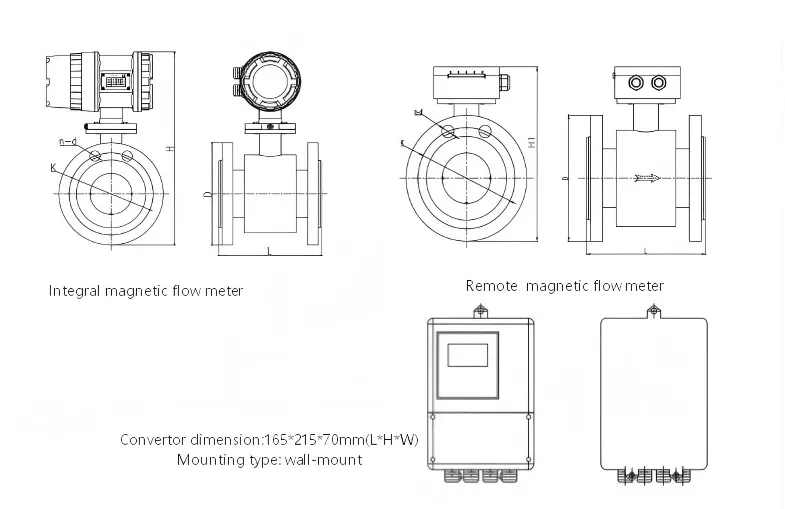

| Installation Type | Wafer Type (≤DN300), Flange Connection (≥DN350) |
| Converter Power Supply | 220 V ± 20 % / 60 Hz or 24 VDC (Selectable) |
3.Application

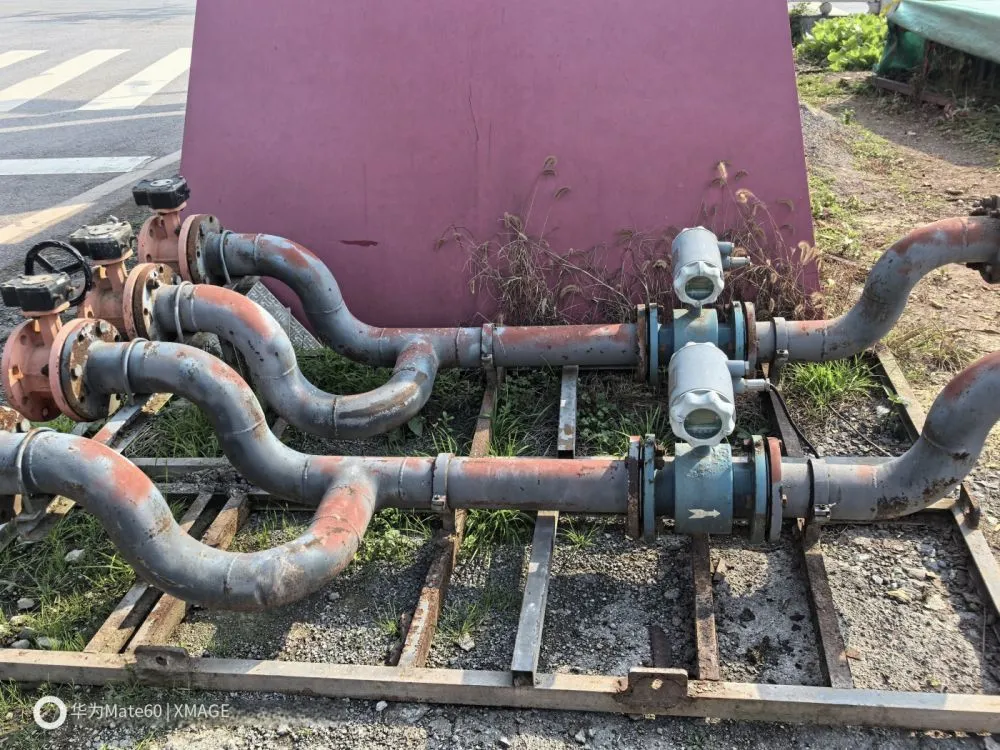

The KEF200 electromagnetic flowmeter is designed for flow measurement of conductive liquids and slurries in closed pipelines, widely applicable in the following industries:
Metallurgy: Monitoring of circulating water and electrolyte flow
Paper Industry: Measurement of pulp and white water transportation
Water Treatment: Flow control of raw water, reclaimed water, and wastewater
Chemical Industry: Flow measurement of various chemical media
ight Industry & Textiles: Monitoring of process fluid transportation
Power Industry: Flow measurement of cooling system circulating water
-
Mining Industry: Flow monitoring of ore slurry and tailings slurry
This flowmeter provides precise measurement of clean water, wastewater, acid/alkali/salt solutions, sludge, ore slurry, pulp, and food-grade liquids (e.g., beverages, sauces), delivering reliable data support for process control and operational management across industries.
