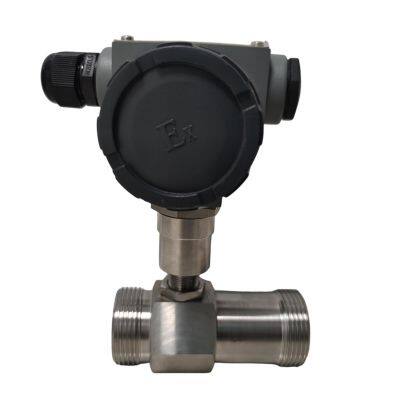

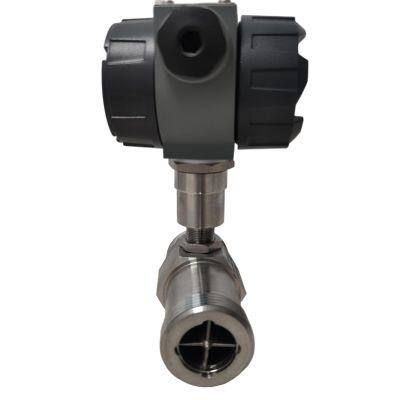

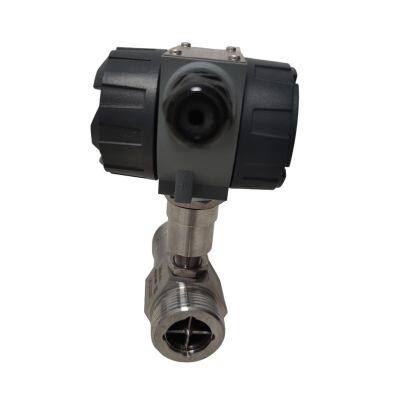

Kyue KTF200 Industrial Automation Liquid Turbine Flowmeter 4-20mA Pulse RS485 Diesel Fuel Hot Water Flow Meter Flow Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO
Display Type:
Remote Display
Measuring Medium:
Other, Liquid ,gas
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Related Products
-
Kyue KTF200 Industrial Mechanical Turbine Flow Meter 4-20mA Pulse RS485 Diesel Fuel Hot Water Gases Flow MeterNegotiableMOQ: 1 Piece -
DN15-DN1000 OEM Digital Display Stainless Steel Vortex Flow Meter Sensor High Accuracy Liquid Gas Effective Flow MeasurementUS$ 200MOQ: 1 Piece
-
Factory Direct Faraday-type DN15 Magnetic Flow Meter 4-20ma Rs485 Hart Electromagnetic Flowmeter for Liquids ,pastes ,slurriesUS$ 200MOQ: 1 Piece
-
CE Kyue Digital Water Wastewater Flow Meter 4-20ma Rs485 Hart Electromagnetic Flowmeter DN50 DN300NegotiableMOQ: 1 Piece
-
OEM Kyue Metal Tube Variable Area Flow Meter Metal Rotor Flow Meter Factory SupplyNegotiableMOQ: 1 Piece
Certification
ISO
Display Type
Remote Display
Measuring Medium
Other, Liquid ,gas
Accuracy Grade
0.5G
Customized
Customized
Connection Type
Thread Type
IP Rating
Other, IP66
explosion-proof level
Ex db IIC T6 Gb
Nomial diameter
DN4-DN200
Range
0.04-800m³/h
Transport Package
carton
Trademark
Kyue
Origin
Tianjin
1.Product Overview
The KTF200 series is a high-precision, wide-range volumetric flow meter based on the principle of measuring turbine rotor speed.
When fluid passes through a pipe containing a freely rotating impeller, the speed of the impeller is proportional to the flow velocity. By detecting the rotational frequency, the instantaneous volumetric flow rate and totalized flow can be accurately calculated. Renowned for its compact structure, fast response, excellent repeatability, and clear pulse output, this series is widely used for measuring clean or slightly dirty single-phase fluids where high accuracy and dynamic response are required.
2.Technical specifications
| Parameter Category | Specification |
|---|---|
| Product Model | KTF200 |
| Measurement Principle | Turbine Rotor |
| Suitable Media | Clean or slightly dirty water, light oil products, chemical solvents, air, natural gas, etc. (single-phase, low viscosity) |
| Nominal Diameter | DN4 ~ DN200 mm |
| Flow Range | 0.04 ~ 800 m³/h |
| Accuracy Class | ±0.5% ±1.0% |
| Repeatability | ≤ 0.1% |
| Output Signal | ①Pulse (3-wire) ② 4~20mA Analog (2-wire/3-wire) ③ RS485 Digital Communication (supports Modbus, optional) |
| Power Supply | Pulse Type: +5 ~ 24 VDC 4~20mA Type: 12 ~ 36 VDC RS485 Type: 5 VDC or 12 ~ 24 VDC |
| Media Temperature | Standard: -20℃ ~ +100℃ |
| Ambient Temperature | -20℃ ~ +60℃ |
| Nominal Pressure | PN16, PN25, PN40 (common; higher pressures customizable) |
| Housing Material | 304 Stainless Steel (standard), 316/L Stainless Steel (optional) |
| Rotor/Bearing | Reinforced Plastic / Stainless Steel / Tungsten Carbide (selected based on media characteristics) |
| Connection Type | Threaded (small diameters), Flanged (standard HG/T, GB, ANSI, etc., for large diameters) |
| Protection Rating | IP66 |
| Explosion Protection | Ex d IIC T6 Gb |
3.Application
| Petrochemical Industry | Custody transfer or process control measurement of refined oil, LPG, solvents, additives, etc. |
| Water Supply & Treatment | Measurement of raw water, purified water, circulating water, and irrigation water. |
| Food & Pharmaceutical | Flow monitoring of beverages, milk, alcohol, syrup, and process water (requires sanitary design). |
| Gas Measurement | Flow measurement of dry, clean gases such as compressed air, nitrogen, and industrial gases |
| Energy Management | Energy consumption measurement of boiler fuel oil, thermal oil, and chilled/heating media water. |
| Laboratory & Test Benches | Used as a high-precision flow reference or standard meter. |
4.Contact us for more details .
