QJZ2-□/□(N)

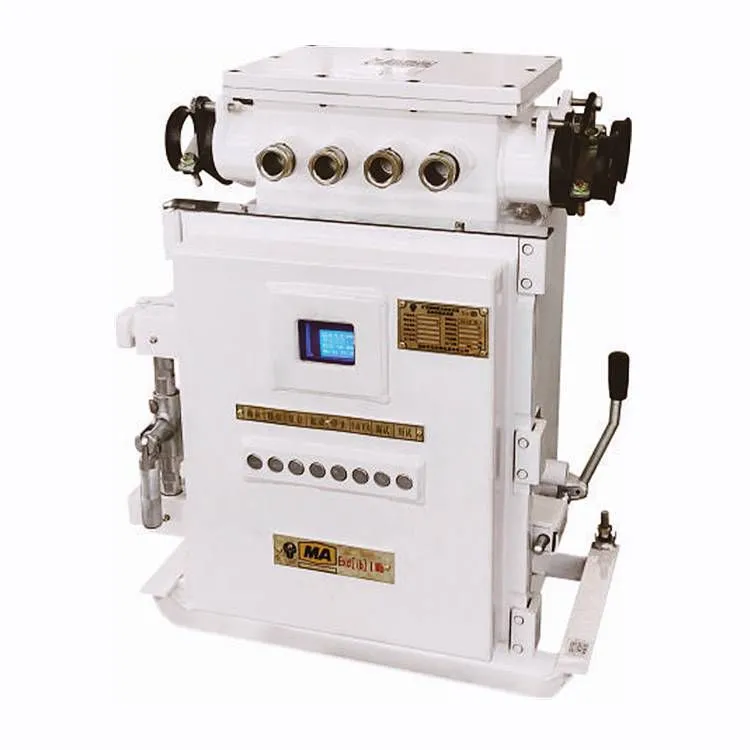

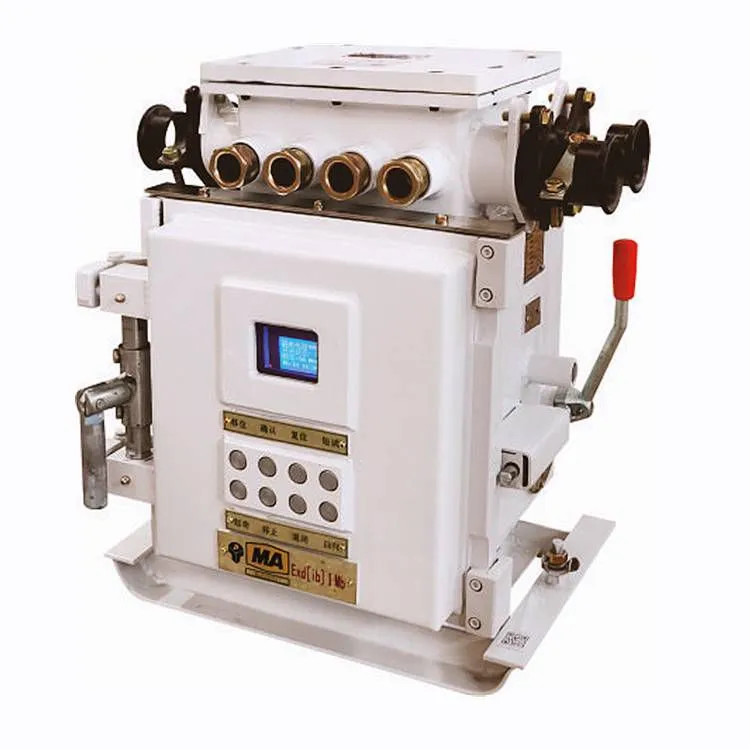

Mine-used flameproof and intrinsically safe(Reversible) Vacuum electromagnetic starter
Purpose and scope of applicationApplication and range of application
QJZ2-series mine-used flameproof reversible vacuum electromagnetic starters (hereinafter referred to as starters) are applicable to underground coal mines where the surrounding air medium contains explosive gas mixtures(CH₄). In a three-phase AC50Hz, voltage380,660, 1140V circuit, they are used for direct starting, stopping, and forward and reverse rotation control of three-phase squirrel-cage asynchronous motors, and have protection functions such as overload, short circuit, phase loss, and leakage locking
Product featuresProduct features
Quick-opening door structure, small size, light weight, and full functions;
Intelligent Chinese character display, single-chip microcomputer control;
With self-diagnosis function and fault memory function;
Main technical parameters Main technical parameters
Product modelProduct model |
RatedVoltage Rated voltage (V) |
RatedCurrent Rated current (A) |
CableOuter diameter Outside diameter of cable |
ExternalOverall dimensions Boundary dimension (mm) |
Weight Weight(kg) |
|
|
Main Main cable |
Control Control cable |
|||||
QJZ2-30/1140(660. 380) |
1140、 660、 380 |
30 |
24-40 |
8-19 |
480x370x575 |
|
QJZ2-30/1140(660. 380)N |
1140、 660、 380 |
30 |
24-40 |
8-19 |
600x400x700 |
|
QJZ2-60/1140(660. 380) |
1140s 660、 380 |
60 |
24-40 |
8-19 |
480x370x575 |
|
QJZ2-60/1140(660. 380)N |
1140、 660、 380 |
60 |
24-40 |
8-19 |
600x400x700 |
|
QJZ2-80/1140(660. 380) |
1140、 660、 380 |
80 |
24-40 |
8-19 |
480x370x575 |
|
QJZ2-80/1140(660. 380)N |
1140s 660、 380 |
80 |
24-40 |
8-19 |
600x400x700 |
|
QJZ2-120/1140(660. 380) |
1140s 660、 380 |
120 |
31-51 |
8-19 |
600x400x700 |
|
QJZ2-120/1140(660. 380)N |
1140、 660、 380 |
120 |
31-51 |
8-19 |
600x400x700 |
|
QJZ2-200/1140(660. 380) |
1140、 660、 380 |
200 |
31-51 |
8-19 |
600x400x700 |
|
QJZ2-200/1140(660. 380)N |
1140、 660、 380 |
200 |
31-51 |
8-19 |
600x400x700 |
|
