Home > Electrical & Electronics > Switch > Automatic Transfer Switch > [hunan Chuang'an Explosion-proof] Kjz-□/1140(660, 380)yg Mine-used Flameproof and Intrinsically Safe Permanent Magnet Vacuum Feeder Switch

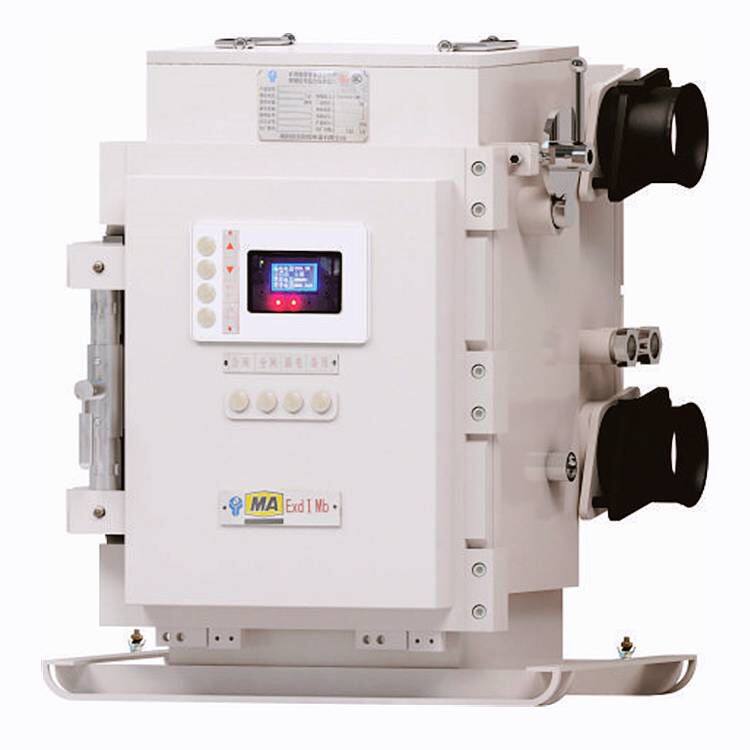

[hunan Chuang'an Explosion-proof] Kjz-□/1140(660, 380)yg Mine-used Flameproof and Intrinsically Safe Permanent Magnet Vacuum Feeder Switch

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2002

Factory Size:

Above 100,000 square meters

Contact Supplier Request Quote Chat Now

Hunan Chuangan Explosion-proof Electric Appliances Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

KJZ-□/1140(660,380)YG

Mine-used flameproof and intrinsically safe permanent magnet vacuum feeder switch (with isolation section)

Purpose and scope of useApplication and range of application

This series of mine-used flameproof and intrinsically safe permanent magnet vacuum feeder switches is suitable for coal mines containing methane mixed gas and with explosion hazards. In the power supply grid with an alternating current of 50Hz, rated voltage of 1140V and below, where the neutral point is not grounded, it can be used as a main distribution switch, a branch switch, or for infrequent starting of motors. When connected to the mine power automatic control and comprehensive automation system, it can realize remote automatic control and monitoring equipment, achieving unattended operation.

Product featuresProduct features

It adopts a quick-opening door structure and features a full Chinese display, which can display real-time parameters of the system such as three-phase voltage, three-phase current, active power, reactive power, insulation resistance, power consumption, and the number of switch-on times.

It uses a pull-down menu for parameter setting and has the function of parameter setting and modification. The parameters of the switch can be accurately modified and set with a step size of 1.

The switch has multiple protection functions such as short-circuit protection, overload protection, leakage locking, phase loss protection, three-phase unbalance protection, leakage protection, undervoltage protection, and overvoltage absorption.

It has the functions of wind, electricity and gas locking, high-voltage electrical interlocking, temperature alarm, and remote opening.

The remote control adopts intrinsic safety control. The intrinsic safety parameters are: voltage 21.8V (AC), current 78mA (AC).

It is equipped with standard 4G, wifi, TCP/IP, 485, and LoRa communication interfaces, which can be selected according to customer needs. When configured in the mine power automatic control and integrated automation system, it can realize the four-remote functions of remote measurement, remote control, remote signaling, and remote adjustment, achieving the automation of power supply equipment.

An isolating switch is added for easy maintenance.

It uses a permanent magnet (bistable) vacuum circuit breaker, which features a simple structure, easy maintenance, fast response speed, stable operation, and a long service life.

MainTechnical parameters Main technical parameters

Product model Product model	RatedVoltage Rated voltage (V)	RatedCurrent Rated current (A)	Rated short circuit making and limited breaking capacity (Effective value of periodic component)KA/cosΘ Rated short circuit making and limited breaking capacity (effective value of periodic component)			Electrical life(times) Electrical life(times)	Mechanical life(times) Mechanical life(times)	Outside diameter of cable Outside diameter of cable		Overalldimensions Boundary dimension (mm)	Weight Weight (kg)
			1140V	660V	380V			Main Main cable	Control Control cable
KJZ-200/1140(660. 380)YG	1140 660 380	200	4.5/0.3	7.5/0.3	9/0.3	3000	15000	39-63	8-20	600 x726 x784
KJZ-400/1140(660, 380)YG		400	7.5/0.3	9/0.3	12.5/0.3
KJZ-500/1140(660, 380)YG		500	9/0.3	12/0.3	15/0.3			42-78	8-20	778 x 849 x 927
KJZ-630/1140(660. 380)YG		630	12.5/0.3	15/0.3	20/0.3
KJZ-800/1140(660. 380)YG		800	15/0.3	20/0.3				42-78	8-20	850x1035x1017
KJZ-1000/1140YG		1000	15/0.3	20/0.3
