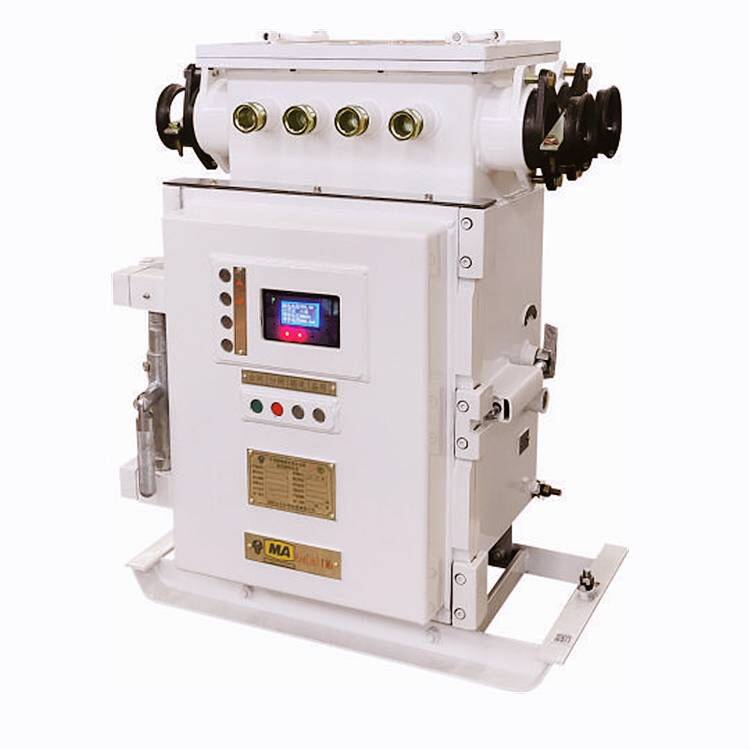

Help Center[hunan Chuang'an Explosion-proof] Kjz-□/1140(660, 380)y Mine-used Flameproof and Intrinsically Safe Permanent Magnet Vacuum Feeder Switch
![[hunan Chuang'an Explosion-proof] Kjz-□/1140(660, 380)y Mine-used Flameproof and Intrinsically Safe Permanent Magnet Vacuum Feeder Switch thumbnail-1](https://img11.fr-trading.com/2/1_166_120176_750_750.jpg)
![[hunan Chuang'an Explosion-proof] Kjz-□/1140(660, 380)y Mine-used Flameproof and Intrinsically Safe Permanent Magnet Vacuum Feeder Switch photo-1](https://img11.fr-trading.com/3/1_166_120176_750_750.jpg)
Related Products
-
![[hunan Chuang'an Explosion-proof] Bpj1-□/□f Flameproof and Intrinsically Safe Variable Frequency Governor for Ventilators (economy Configuration Plan)](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[hunan Chuang'an Explosion-proof] Bpj1-□/□f Flameproof and Intrinsically Safe Variable Frequency Governor for Ventilators (economy Configuration Plan)NegotiableMOQ: 0 Unit -
[hunan Chuang'an Explosion-proof] Qjz2-□/1140(660) L-□ Mine-used Flameproof and Intrinsically Safe Multi-circuit Vacuum Electromagnetic StarterNegotiableMOQ: 0 Unit
-
[hunan Chuang'an Explosion-proof] Pjgpt-10(6) Mine-used Flameproof and Intrinsically Safe High-voltage Distribution Voltage Transformer CabinetNegotiableMOQ: 0 Unit
-
[hunan Chuang'an Explosion-proof] Qjz2-□x□/1140(660) Mine-used Flameproof and Intrinsically Safe Vacuum Electromagnetic StarterNegotiableMOQ: 0 Unit
-
[hunan Chuang'an Explosion-proof] Qjz-□/1140(660)-□ Mine-used Flameproof and Intrinsically Safe Multi-circuit Vacuum Electromagnetic StarterNegotiableMOQ: 0 Unit
KJZ-□/1140(660,380)Y
Flameproof and intrinsically safe type for miningPermanent magnetVacuum feed switch
Purpose and scope of useApplication and range of application
This series of flameproof and intrinsically safe permanent magnet vacuum feed switches for mining are suitable for underground coal mines with explosive methane - air mixtures. In an AC power supply network with a frequency of50Hz, rated voltage of1140V and below, where the neutral point is ungrounded, they can be used as main distribution switches, branch switches, or for infrequent motor starting. When connected to the automatic control and comprehensive automation system for mining power, they can achieve remote automatic control and monitoring, enabling unattended operation.
Product featuresProduct features
It adopts a quick-opening door structure and features a full Chinese display, which can display real-time parameters of the system such as three-phase voltage, three-phase current, active power, reactive power, insulation resistance, power consumption, and number of switch-on times.
It uses a pull-down menu for parameter setting and has the function of parameter setting and modification. The parameters of the switch can be accurately modified and set with a step size of 1.
The switch has multiple protection functions such as short-circuit protection, overload protection, leakage blocking, phase failure protection, three-phase unbalance protection, leakage protection, under-voltage protection, and over-voltage absorption.
It has functions such as wind-power and gas locking, high-voltage electrical interlocking, temperature alarm, and remote opening.
The remote control uses intrinsic safety control. The intrinsic safety parameters are: voltage 21.8V(AC), current 78mA(AC).
It is equipped with standard 4G, wifi, TCP/IP, 485, and LoRa communication interfaces, which can be selected according to customer needs. When configured in the mine power automatic control and comprehensive automation system, it can realize the four-remote functions of remote measurement, remote control, remote signaling, and remote adjustment, achieving automation of power supply equipment.
It uses a permanent magnet (bistable) vacuum circuit breaker, which has the characteristics of simple structure, easy maintenance, fast response speed, stable operation, and long service life.
Main technical parameters Main technical parameters
|
Product model Product model |
Ratedvoltage Rated voltage (V) |
Ratedcurrent Rated current (A) |
Rated short circuit making and limited breaking capacity (Effective value of periodic component)KA/cosΘ Rated short circuit making and limited breaking capacity (effective value of periodic component) |
Electrical life(times) Electrical life(times) |
Mechanical life(times) Mechanical life(times)
|
Cable outer diameter Outside diameter of cable |
ExternalDimensions Boundary dimension (mm) |
Weight Weight (kg) |
|||
1140V |
660V |
380V |
Main Main cable |
Control Control cable |
|||||||
KJZ-200/1140(660. 380)Y |
1140 660 380 |
200 |
4.5/0.3 |
7.5/0.3 |
9/0.3 |
3000 |
15000 |
39-63 |
8-20 |
791 x531 x836 |
220 |
KJZ-400/1140(660, 380)Y |
400 |
7.5/0.3 |
9/0.3 |
12.5/0.3 |
|||||||
KJZ-500/1140(660, 380)Y |
500 |
9/0.3 |
12/0.3 |
15/0.3 |
42-78 |
8-20 |
830 x 540 x 970 |
320 |
|||
KJZ-630/1140(660. 380)Y |
630 |
12.5/0.3 |
15/0.3 |
20/0.3 |
|||||||
KJZ-800/1140(660. 380)Y |
800 |
15/0.3 |
20/0.3 |
42-78 |
8-20 |
860x629x1013 |
410 |
||||
KJZ-1000/1140Y |
1000 |
15/0.3 |
20/0.3 |
||||||||
