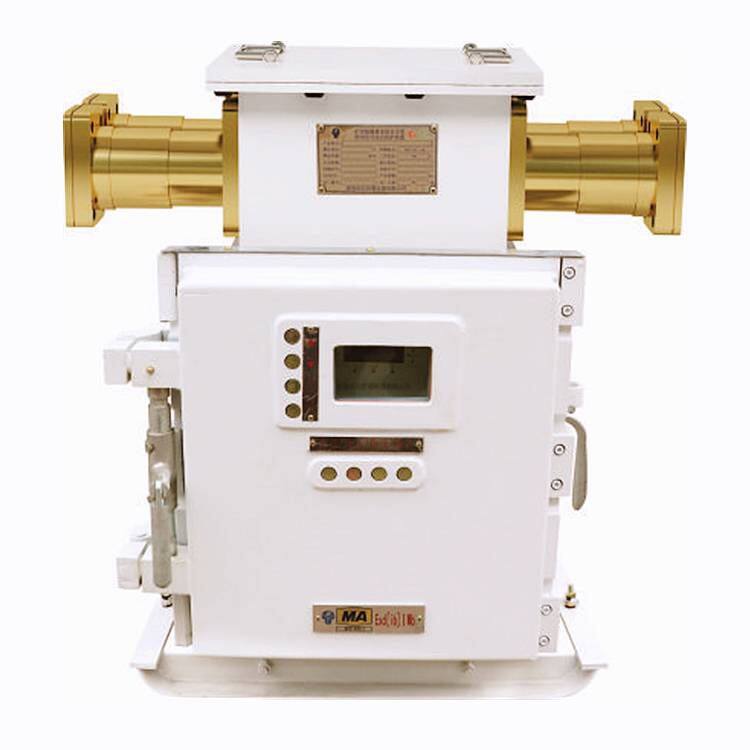

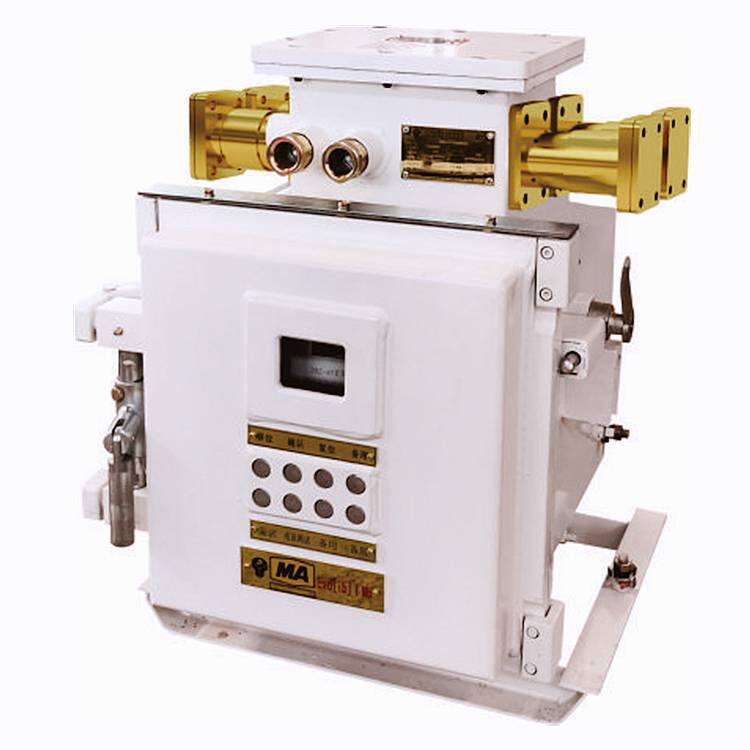

[hunan Chuang'an Explosion-proof] Zjz-□/□ml Mine-used Flameproof and Intrinsically Safe Lighting and Signal Comprehensive Protection Device (quick Connection)

ZJZ-Port/PortML

Mine-used flameproof and intrinsically safe integrated protection device for lighting and signal (Quick connection)

Purpose and scope of use Application and range of application

This series of flameproof and intrinsically safe integrated protection devices for lighting and signal are suitable for coal mines underground, in the power grid of alternating current 50Hz, rated voltage 380V, 660V, 1140V. It is a new high-performance series of microcomputer-controlled protection products with high power supply reliability; multiple anti-interference measures are adopted to make the device have extremely high anti-interference ability. It is used for the power supply of 127V lighting and signal loads in coal mines underground.127V lighting and signal loads for power supplyElectricity, and at the same time, it has protection functions such as short - circuit and leakage.

Product featuresProduct features

It adopts a microcomputer monitoring and protection device, which has strong anti - interference ability, sensitive and reliable protection, and high measurement accuracy;

It has a full - Chinese large - screen LCD display with automatic backlight and menu - style operation instructions;

All important operations require an authorized password to effectively prevent misoperations;

It has the functions of event memory and query;

Remote control uses intrinsic safety control. The intrinsic safety parameters are: voltage 21.8V(AC), current 78mA(AC)o

It is equipped with standard RS485 and CAN bus communication interfaces. When configured in the mine power monitoring system, it can realize the four - remote functions of remote measurement, remote control, remote signaling, and remote adjustment, achieving automation of power supply equipment. • It uses a quick connector.

Main technical parameters Main technical parameters
