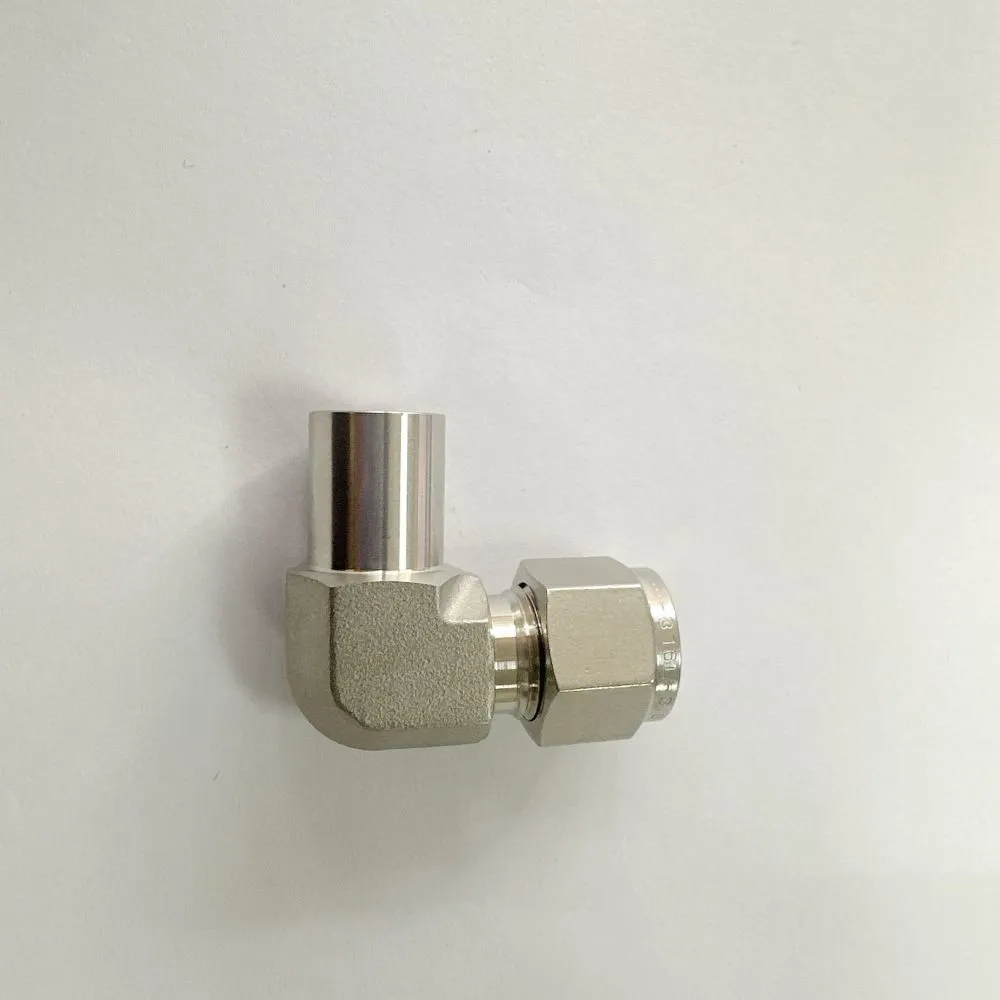

Help CenterDouble Ferrule Elbow With Free Technical Support & Installation Guide
Related Products
-
10-Year Warranty Stainless Steel Double Ferrule Elbow FittingNegotiableMOQ: 50 Pieces -
Stainless Steel Double Ferruled Elbow for Oil & Gas InstrumentationNegotiableMOQ: 50 Pieces
-
DN15-DN50 Metric Size Double Ferrule Elbow With 6000 PSI RatingNegotiableMOQ: 50 Pieces
-
Double Ferrule Compression Elbow for High-Pressure Hydraulic SystemsNegotiableMOQ: 50 Pieces
-
90°/45° Double Pipe Bends With Beveled Ends, Ready for Welding, Passes NDE & Hydrostatic TestsNegotiableMOQ: 100 Pieces
As a trusted manufacturer from Shanghai, China, Shanghai Quanbao Electronic Materials Technology Co., Ltd. specializes in delivering high-quality components like our Double Ferrule Elbow, designed for seamless integration in demanding industrial systems. With complimentary technical support and a detailed installation guide included, we ensure hassle-free setup and reliable performance, reducing downtime and maintenance costs. Our product's double ferrule mechanism guarantees superior leak resistance, making it ideal for critical applications where precision matters. Trust our Shanghai-based expertise to provide solutions that enhance your operational efficiency and safety.
Key Features and Benefits: This elbow fitting incorporates a robust double ferrule design that compresses tubing twice for an airtight seal, preventing fluid leaks even under high-pressure conditions. The 90-degree angle allows for flexible routing in confined spaces, optimizing system layouts without compromising flow. Made from durable stainless steel, it resists corrosion and extends service life in harsh environments like chemical processing or oil and gas. Advantages for customers include:
- Reduced installation time with our free, step-by-step guide, minimizing errors.
- Enhanced safety through reliable sealing that prevents hazardous leaks.
- Cost savings from lower replacement frequency and maintenance needs.
- Versatility across various tubing sizes and materials for broad application.
Technical Specifications: Below is a summary of common parameters. Note that customizations are available upon request to meet specific requirements.
| Size (NPT) | Material | Max Pressure (PSI) | Temperature Range (°F) |
| 1/4" | Stainless Steel | 5000 | -50 to 400 |
| 3/8" | Stainless Steel | 4500 | -50 to 400 |
| 1/2" | Stainless Steel | 4000 | -50 to 400 |
The double ferrule system works by creating two compression points on the tubing, ensuring a gas-tight seal that outperforms single-ferrule alternatives. This is particularly beneficial in instrumentation systems where accuracy is critical. Additionally, the elbow's smooth inner bore minimizes flow restrictions, maintaining consistent pressure and reducing energy consumption. For installation, our guide includes visual aids and troubleshooting tips, covering common issues like over-tightening or misalignment.
Backed by Shanghai Quanbao's commitment to excellence in electronic materials, we offer a product that adheres to stringent quality controls from our Shanghai facility, ensuring consistency and reliability. Our free technical support provides expert advice for complex setups, helping you maximize the elbow's lifespan and performance. Choose this fitting for its durability and ease of integration, and contact us today to discuss bulk orders or custom solutions tailored to your needs.
Frequently Asked Questions (FAQ):
-
Q: What types of tubing are compatible with this elbow?
A: It works with standard instrumentation tubing such as stainless steel, copper, or nylon, in sizes from 1/4" to 1". -
Q: How does the free installation guide help in setup?
A: The guide includes detailed diagrams and step-by-step instructions, covering assembly, torque settings, and leak testing for error-free installation. -
Q: Are different angles available besides 90 degrees?
A: Currently, 90 degrees is standard, but other angles may be customizable upon request for specific applications. -
Q: What is the expected lifespan of this fitting?
A: With proper installation and maintenance, it can last for years in industrial environments due to its corrosion-resistant material. -
Q: How do I access the free technical support?
A: Support is available via email or phone; contact our Shanghai team for real-time assistance with installation or issues. -
Q: Can this elbow handle high-vibration systems?
A: Yes, the double ferrule design provides a secure grip that resists loosening under vibration, making it suitable for dynamic setups. -
Q: Is the material certified for specific industries?
A: Materials are selected for broad compatibility; certifications can be provided upon inquiry based on your requirements. -
Q: What if I need a non-standard size?
A: Custom sizes are available upon request, with options for rapid prototyping to meet urgent project deadlines.
