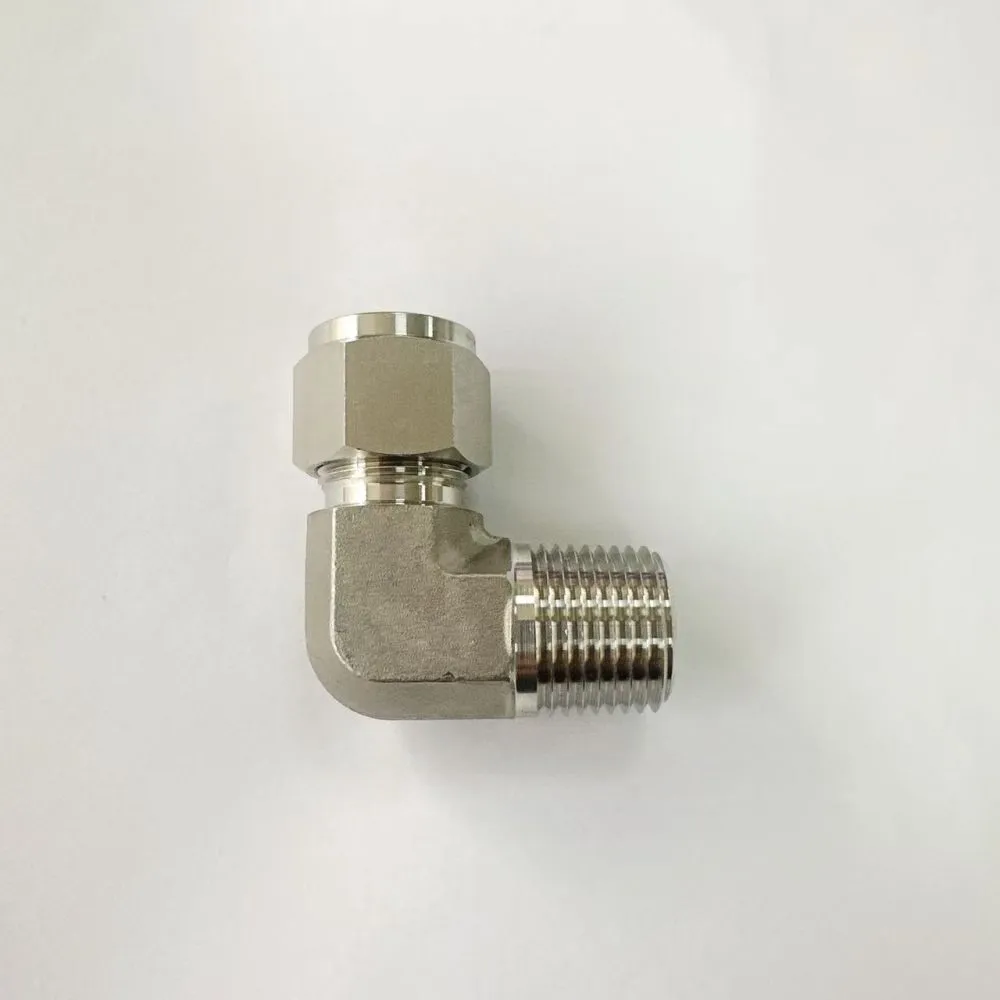

Help CenterDouble Ferrule Compression Elbow for High-Pressure Hydraulic Systems
Related Products
-
90°/45° Double Pipe Bends With Beveled Ends, Ready for Welding, Passes NDE & Hydrostatic TestsNegotiableMOQ: 100 Pieces -
High-Performance Double Pipe Bends, ASTM A403 WP304/316, Custom Sizes 1/2" to 24"NegotiableMOQ: 100 Pieces
-
ASME B16.9 Double Pipe Bends in Stainless Steel, Pressure Rating 150-3000 PSI, Long RadiusNegotiableMOQ: 100 Pieces
-
Precise Double Pipe Bends for Chemical Processing Plants, Acid/Alkali Resistant, Zero LeakageNegotiableMOQ: 100 Pieces
-
Sanitary Double Pipe Bends for Food/Biopharm Industries, Mirror Polished Ra≤0.8μm, 3A CertifiedNegotiableMOQ: 100 Pieces
As a trusted manufacturer based in Shanghai, China, Shanghai Quanbao Electronic Materials Technology Co., Ltd. delivers high-quality solutions for demanding industrial applications. Our Double Ferrule Compression Elbow is specifically engineered for high-pressure hydraulic systems, providing reliable and leak-proof connections that enhance operational efficiency and safety. With years of expertise in electronic materials technology, we focus on durability and performance to meet the rigorous demands of global clients. This product is designed to minimize downtime and maintenance costs, making it an essential component for hydraulic setups in various sectors. Choose our elbow for superior sealing and long-lasting reliability in your critical systems.
Key Features and Technical Specifications
Our Double Ferrule Compression Elbow incorporates advanced design elements to ensure optimal functionality in high-pressure environments. The double ferrule mechanism creates a robust seal that prevents leaks even under extreme conditions, reducing the risk of system failures. Made from corrosion-resistant stainless steel, it withstands harsh chemicals and environmental factors, ensuring longevity. Here are some standout characteristics:
- Superior Sealing Performance: The dual-ferrule design grips the tube firmly, providing vibration resistance and eliminating the need for additional sealing agents.
- Easy Installation: Designed for quick assembly without specialized tools, this elbow reduces labor time and costs during setup or maintenance.
- Versatile Compatibility: Suitable for a wide range of hydraulic fluids and gases, it adapts to diverse industrial applications without compatibility issues.
- Enhanced Durability: Constructed from high-grade stainless steel, it offers excellent resistance to wear, corrosion, and thermal stress, extending equipment lifespan.
For detailed technical specifications, refer to the table below. These parameters ensure the elbow meets industry standards for high-pressure operations:
| Parameter | Value |
|---|---|
| Material | Stainless Steel |
| Size Options | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Pressure Rating | Up to 10,000 PSI |
| Temperature Tolerance | -20°C to 200°C |
| Angle Configuration | 90 degrees |
| Connection Type | Double Ferrule Compression |
The advantages of this product translate directly into customer benefits. For instance, the leak-proof design minimizes fluid loss, improving system efficiency and reducing environmental impact. In high-vibration settings like automotive or aerospace hydraulics, its secure fit prevents disconnections, ensuring continuous operation. Additionally, the corrosion resistance lowers replacement frequency, offering cost savings over time. Customizable options, such as different sizes or materials, are available upon request to suit specific project needs.
Trust and Support
Shanghai Quanbao Electronic Materials Technology Co., Ltd., with its strategic location in Shanghai, leverages advanced manufacturing capabilities to produce components that adhere to strict quality controls. Our commitment to innovation and customer satisfaction has built a reputation for dependable products in the hydraulic industry. By choosing this elbow, you gain access to technical support and scalable solutions tailored to your requirements. Contact our team today for inquiries or to discuss bulk orders—we ensure prompt delivery and competitive pricing to help optimize your hydraulic systems.
Frequently Asked Questions (FAQ)
Below are answers to common buyer queries about our Double Ferrule Compression Elbow:
Q: What is the primary advantage of a double ferrule design?
A: It provides a superior seal by using two ferrules that grip the tube uniformly, reducing the risk of leaks in high-pressure applications and enhancing vibration resistance.
Q: Can this elbow handle different hydraulic fluids?
A: Yes, it is compatible with various fluids, including oils and coolants, due to its stainless steel construction, which resists chemical reactions.
Q: What sizes are typically available for this product?
A: Standard sizes range from 1/4" to 2", but custom dimensions can be produced upon request to fit specific tubing requirements.
Q: Is the installation process complicated?
A: No, it is straightforward with basic tools; simply insert the tube and tighten the nut to achieve a secure connection without needing adhesives.
Q: How does the pressure rating affect performance?
A: With a rating up to 10,000 PSI, it ensures reliable operation in extreme conditions, maintaining integrity without deformation or failure.
Q: Are there options for different angles besides 90 degrees?
A: While 90 degrees is standard, other angles like 45 degrees can be customized based on customer specifications for unique system layouts.
Q: What materials are used besides stainless steel?
A: Alternative materials such as brass or carbon steel are optional and can be selected for specific environmental or cost considerations.
Q: How do I ensure proper maintenance for longevity?
A: Regular inspections for wear and correct re-tightening during maintenance cycles help prolong life; avoid overtightening to prevent damage.
