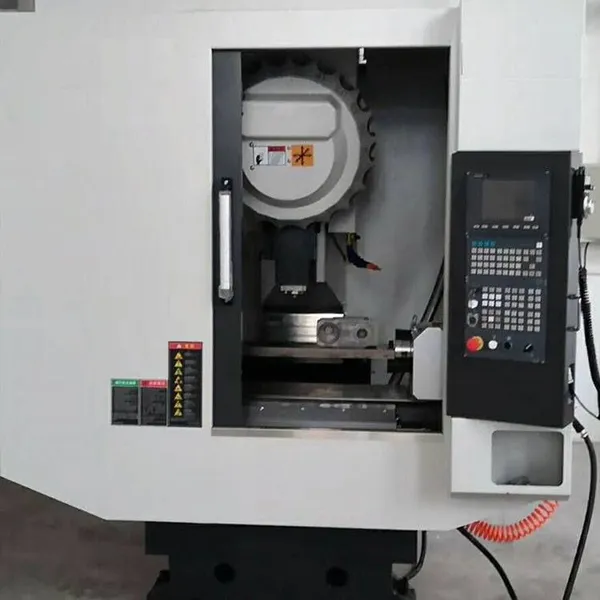

Help CenterComposite Machining Center Mv1270 Compound Machining Center Vertical and Horizontal Dual - Purpose Cnc Machining Center
Related Products
-
Cnc Milling Machine Xk7136 Cnc Milling Machine Bed Cnc Milling MachineNegotiableMOQ: 0 Unit -
Cnc Milling Machine Xk7126 Cnc Milling Machine, Small Bed-type Cnc Milling MachineNegotiableMOQ: 0 Unit
-
640 Machining Center, Vertical Machining Center 640, Small Cnc Machining CenterNegotiableMOQ: 0 Unit
-
550 Machining Center, Vertical Machining Center 550, Small Machining CenterNegotiableMOQ: 0 Unit
-
1160 Machining Center, Vertical Machining Center 1160, Small Machining CenterNegotiableMOQ: 0 Unit

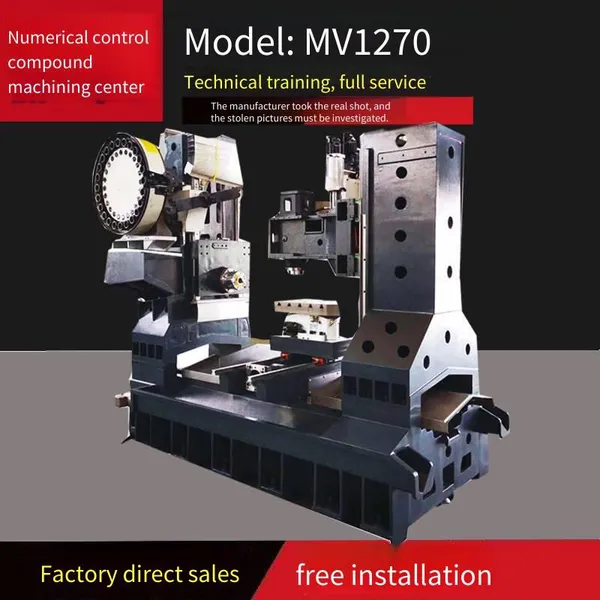

MV1270 Pre-sales information for the composite machining center
1. Product introduction and uses
Mechanical performance
The high-rigidity structural design ensures the stability of the machine body without deformation.
The lifting components are equipped with a gravity balancing device. , The balancing mechanism is provided with a guiding device. , to ensure the balance and reliability of the lifting movement. .

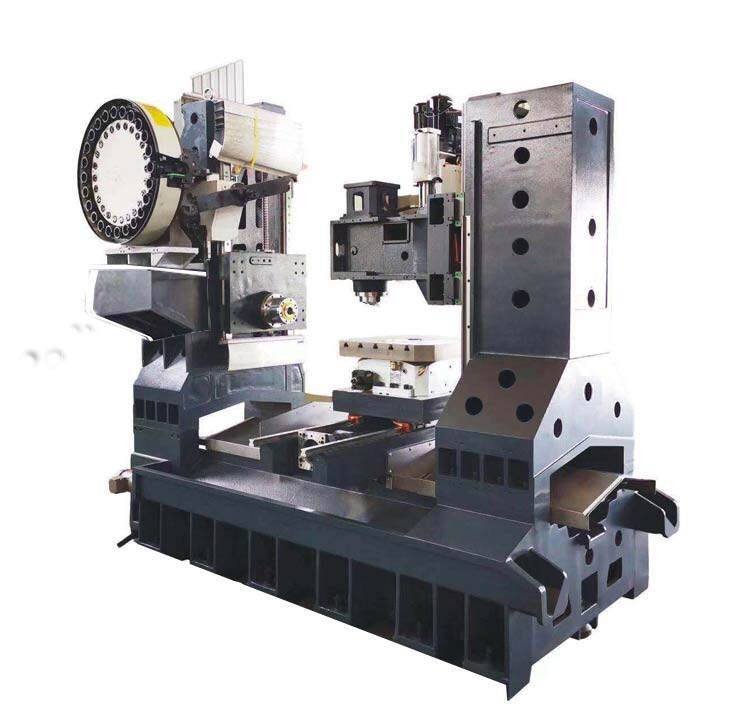

Basic large parts
The main large parts such as the base, saddle, workbench, column, etc. all adopt a box-type structure and are arranged with sufficient reinforcing ribs. to ensure that the whole machine has sufficient strength and rigidity. It is cast with FC300 high-strength gray cast iron. , It has a perfect aging process to eliminate internal stress. , to ensure that the machine tool has sufficient rigidity and stability. Main drive and Spindle
Spindle The transmission is driven by an AC Spindle motor. with servo control. It is linked with the Spindle through a synchronous toothed belt. , with large torque. , Wide constant power range , Good mechanical characteristics .
The spindle adopts a combined structure of precision mechanical spindle bearings , with a large support span , The spindle has good rigidity , operates smoothly , has good accuracy retention , The spindle assembly is an independent component , with good assembly and manufacturing technology , and is easy to maintain .
The spindle uses a well - known Taiwanese brand , with good rigidity low noise strong durability and other advantages .
Three - axis guide rails and feed structure
The movement of the X - axis workbench is realized by a servo motor directly connected to the lead screw through a coupling to drive the lead screw to rotate, achieving linear movement of the X - axis ; The Y - axis drive is realized by a servo motor directly connected to the lead screw through a coupling to drive the lead screw to rotate, achieving longitudinal movement of the slide ; The Z - axis drive is realized by a servo motor directly connected to the lead screw through a coupling to drive the lead screw to rotate, achieving vertical movement of the spindle head ; Both ends of the ball screw use imported TPI special screw drive bearings for CNC machine tools , and the ball screw is pre - stretched in both directions , ensuring the movement accuracy of the screw .
Lubrication system
Each axis guide rail Lubrication points such as ball screws are lubricated by a centralized quantitative lubrication pumping station Sufficient lubrication Reliable .
Safety protection
The X and Y axis guides are protected by stainless steel telescopic shields , The Z axis guide is also equipped with a protection device , Ensuring the reliability and service life of the guides and screws during operation .
The three-axis feed is provided with a safety travel margin , It has safe and reliable measures .
It meets the relevant technical safety requirements of the state and the industry .
