Project |
Technical Parameters |
Unit |
CK6163E |
Processing Range |
Swing Diameter over Bed |
mm |
630 |
Swing Diameter over Carriage |
mm |
350 |
|
Workpiece Length |
mm |
1000-12000 |
|
Bed Guideway Width |
mm |
550 |
|
Spindle |
Spindle Nose Code |
C11(D11) |
|
Spindle Bore Diameter |
mm |
105 |
|
Taper at Front End of Spindle Bore |
mm |
Metric 120:120 |
|
Spindle Speed Range |
r/min |
10-700 |
|
Number of Spindle Speed Steps |
Four - speed Mechanical Transmission, Variable - frequency Stepless Speed Regulation |
||
Feed System |
Range of Longitudinal and Transverse Feed Rates |
mm/r |
56,0.1-12 |
Lead Screw Pitch |
12 |
||
Range of Metric Thread Types |
mm |
44,1-120mm |
|
Range of Inch Thread Types |
mm |
26,14-1TPI |
|
Range of Module Thread Types |
mm |
45,M0.5-M60 |
|
Range of Diametral Pitch Thread Types |
mm |
24 28-1 |
|
Quick - traverse Speed of Carriage |
mm/min |
4000 |
|
Tool Post |
Transverse Travel of Large Tool Post |
mm |
420 |
Travel of Upper Tool Post |
mm |
200 |
|
Tool Shank Section |
mm |
32*32 |
|
Tailstock |
Tailstock sleeve diameter |
mm |
100 |
Tailstock sleeve stroke |
mm |
250 |
|
Tailstock sleeve taper hole |
Morse |
Morse 6 |
|
Main motor power |
KW |
11 |
|
Machine tool appearance |
Machine tool overall dimensions (Length * Width * Height |
mm |
4000*1320*1500 |
Weight |
Machine tool net weight |
kg |
4050(1500MM) |

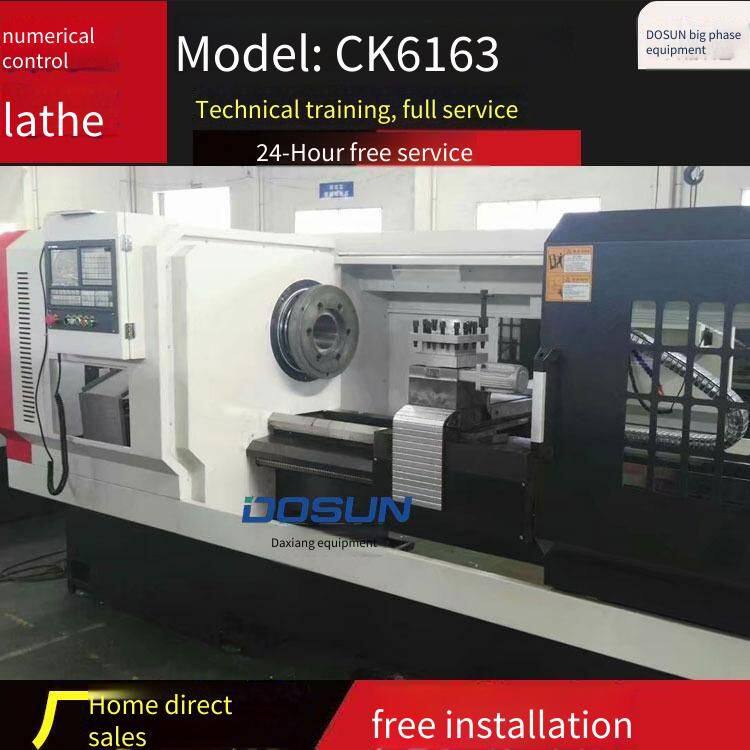

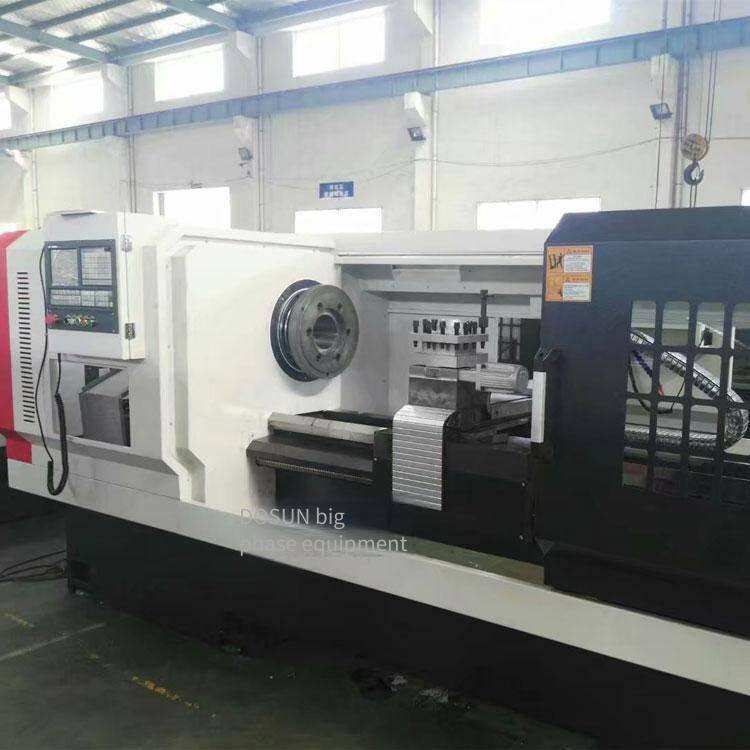

CNC lathe CK6163 Description of main technical features

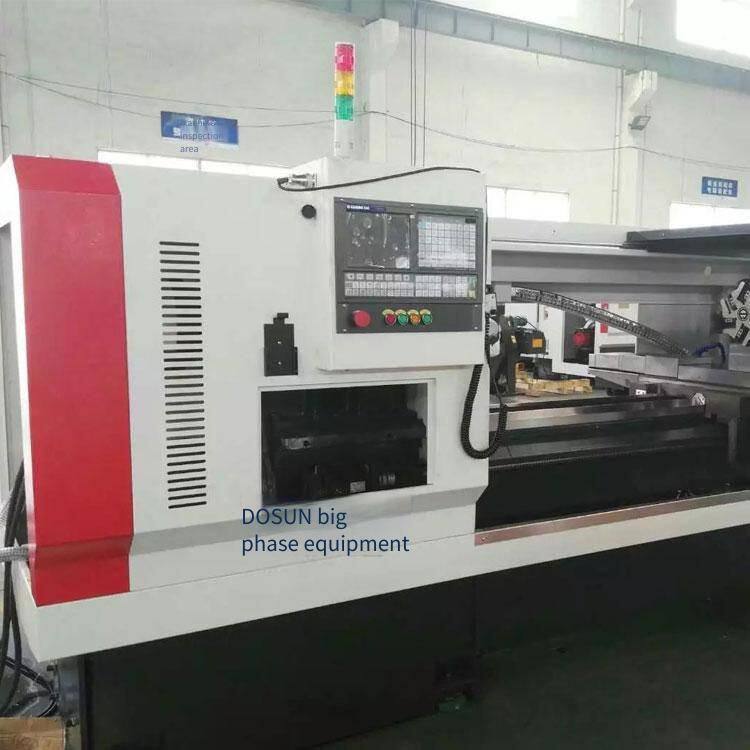

Product configuration GSK 980 CNC system.
The overall layout adopts the integrated layout of machine, electricity and hydraulics to make the whole machine coordinated.
High rigidity, heavy cutting and high stability:
1. This machine tool adopts the resin sand molding process and undergoes secondary tempering treatment, with good thermal stability.
2. Cylindrical headstock structure with annular cooling fins. The spindle is supported by high-precision double ball bearings of New Harbin Bearing, with low noise, high precision and good stability.
3. The lubrication system adopts an automatic thin oil lubrication system to lubricate each lead screw, guide rail and other lubrication points regularly and quantitatively.

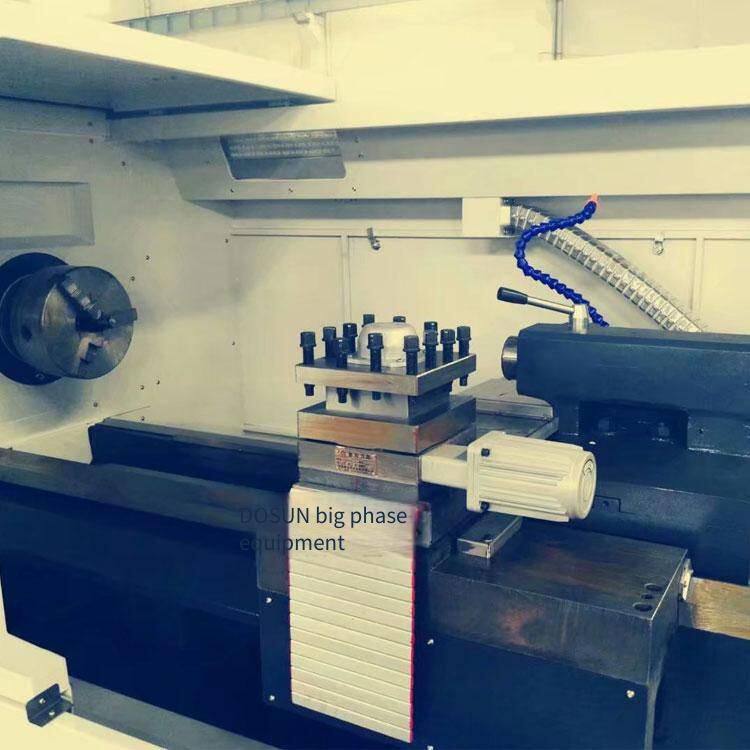

4. 4 Station electric turret It adopts precision tooth disc positioning with high repeat positioning accuracy.
High precision and high dynamic response:
1. The motor is connected to the lead screw with a backlash-free elastic coupling.
2. The tailstock guide rail is precisely ground to ensure the combination of the machine tool's feed accuracy and rigidity.
◆ This machine tool can undertake various turning workpieces. It can turn the outer circles of various parts . Inner holes . End faces, as well as metric threads, imperial threads, module threads, and
diametral pitch threads and other formed surfaces; In addition, it can also meet the process requirements of drilling, boring, trepanning, etc. It is also suitable for heavy-duty turning with hard cutting tools to process various ferrous and non-ferrous metals. This machine tool has the internal characteristics of high power, high speed . Low noise . High rigidity . High precision and good precision retention. It also has the external characteristics of beautiful appearance . Compact and reasonable layout. It also has the advantages of centralized handles . Intuitive nameplates . Flexible and convenient operation . Safe and reliable,
and good user-friendliness. In addition, this machine tool uses an AC variable-frequency speed control device produced by a well-known manufacturer to achieve four-speed stepless speed regulation.
On the basis of the original ordinary lathe, the working accuracy is improved, and the work is stable and reliable. This machine tool is driven by an AC variable-frequency speed control motor to drive the spindle. Through sliding gears, it realizes Ⅰ , Ⅱ , Ⅲ , Ⅳ four-speed gear shifting and variable-frequency stepless speed regulation. It has good torque and power characteristics. The carriage has a rapid movement function, which is convenient and flexible to operate.
◆ This machine tool is suitable for processing small and medium-sized shaft and disc parts. It can turn various threads, arcs, cones, and the inner and outer curved surfaces of revolving bodies. It is widely
used in industries such as plumbing equipment, instruments, automobiles, motorcycles, and bearings.
