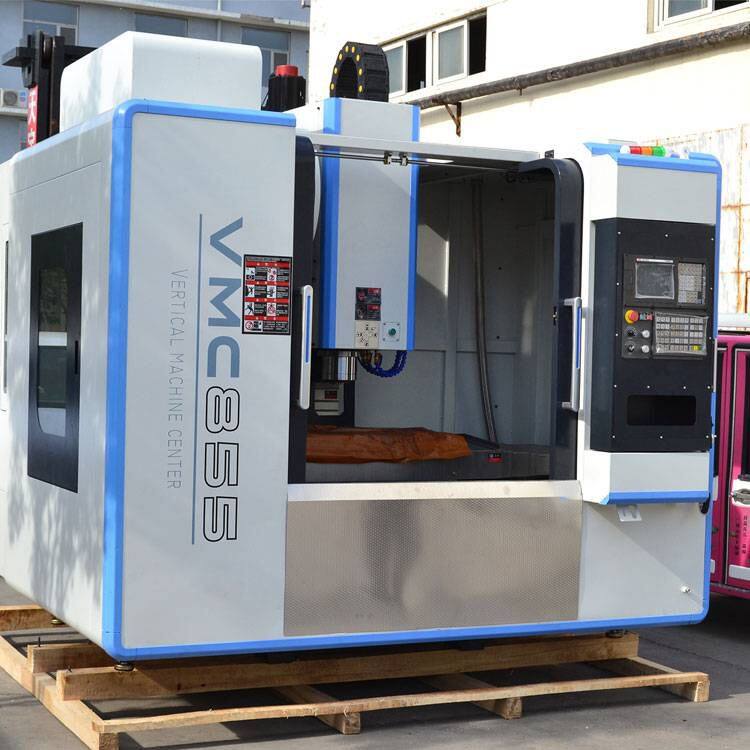

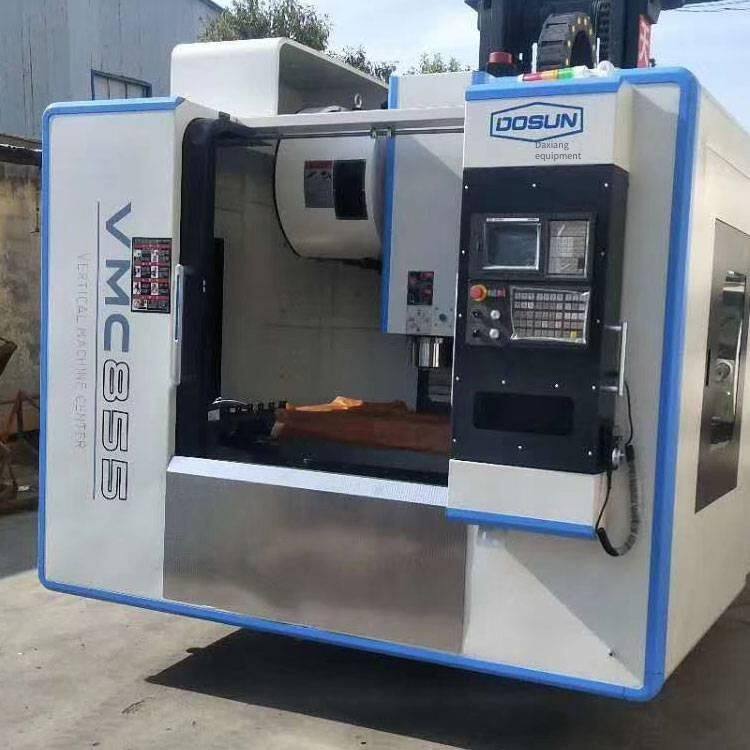

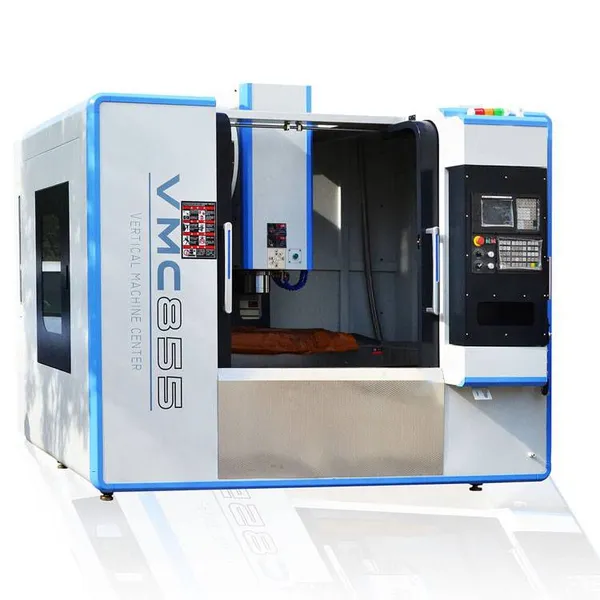

VMC850 Vertical Machining Center Information
I. Product Introduction and Uses
This product X , Y , Z The three axes are servo direct-coupled controlled semi-closed-loop vertical machining centers. All three axes are rectangular guide rails. The guide rails have large loads, wide spans, and high precision, and are suitable for heavy loads. The structure and overall dimensions are compact and reasonable. The spindle is driven by a servo motor through a synchronous belt. It can achieve one-time clamping of various complex parts such as discs, plates, housings, cams, and molds, and can complete various processes such as drilling, milling, boring, expanding, reaming, and rigid tapping. It is suitable for the production of multi-variety, small and medium batch products and can meet the processing requirements of complex and high-precision parts. It can be equipped with a fourth rotating axis to meet the processing requirements of special parts.
II. Main Structural Features
1. The main basic parts such as the base, slide, worktable, column, and spindle box are made of HT300 cast iron; the base is a box-type structure, and the compact and reasonable symmetrical rib structure ensures the high rigidity and anti-bending and shock-absorbing performance of the basic parts; the A -type bridge-span column and the internal grid-shaped ribs effectively ensure the rigidity and precision of the Z axis during heavy cutting; the basic parts are made by resin sand molding and have undergone aging treatment, which provides a guarantee for the long-term stability of the machine tool's performance.
2. The three-direction guide rails of X , Y , Z are all plastic-coated rectangular guide rails, which have the characteristics of high speed, high rigidity, low friction, low noise, and low temperature rise change. Combined with automatic forced lubrication, the accuracy and service life of the machine tool are improved;
3. Z direction is balanced by adding counterweights to ensure smooth and stable movement of the spindle box; The drive motor in the Z direction is equipped with a power-off braking device;
4、 The feeds in the three directions of X , Y , and Z use high-precision and high-strength internal circulation double-nut preloaded large-lead ball screws, with high feed speed; The drive motor is directly connected to the screw through an elastic coupling. The feed servo motor directly transmits power to the high-precision ball screw without backlash, ensuring the positioning accuracy and synchronization of the machine tool;
5、 A high-speed, high-precision, and high-rigidity spindle unit is adopted, with strong axial and radial load-bearing capacity, and the rotational speed can reach 8000rpm ;
6、 The spindle adopts a center blowing structure. When the spindle releases the tool, the inner cone of the spindle is quickly cleaned with high-pressure central gas, ensuring the accuracy and service life of tool clamping;
7、 The guide rails and screws in the three directions of X , Y , and Z are all equipped with protective devices to ensure the cleanliness of the screws and guide rails, and to ensure the transmission, movement accuracy and service life of the machine tool;
8、 The external protection of the machine tool adopts a full-protection structure design, which is convenient to operate, safe and reliable, and aesthetically pleasing;
9、 A reliable centralized automatic lubrication device is adopted to automatically and intermittently lubricate each lubrication point of the machine tool at regular intervals and in fixed quantities. The lubrication time can be adjusted according to the working conditions;
10、 It is produced by a professional manufacturer in Taiwan 24-piece disc-type tool magazine ( Optional ) or BT40-20 piece hat-type tool magazine ( Optional ) . Tool change is accurate, with short time and high efficiency. After millions of operation tests, it meets the reliability requirements. It is equipped with a damping structure to reduce the impact during movement and ensure the service life of the tool magazine. It is pneumatically driven, easy to use, and changes tools via the shortest path.
11、 An oil-water separation device is used, which can separate most of the collected lubricating oil from the coolant, prevent the rapid deterioration of the coolant, and is environmentally friendly.
12、 The machine tool operating system adopts the principle of ergonomics. The operation box is independently designed, can rotate itself, and is easy to operate.
III. Main technical parameters
1、 Main technical parameters
Travel
Travel X axis : |
800mm |
Y axis : |
500mm |
Z axis : |
550mm |
Distance from the spindle end face to the worktable surface : |
105 - 655mm |
Distance from the spindle center to the column guide rail surface : |
550mm |
Worktable
Worktable surface size |
1050×500mm |
Load-bearing |
600kg |
T Type groove width |
18 |
T Number of T-type grooves |
5 |
Spindle
Taper specification |
BT40 |
Spindle speed (optional) |
8000 |
Spindle motor |
7.5kw |
Tool
Tool diameter (adjacent clearance): φ 80/ φ 150mm
Tool length: 200mm
Tool weight: 8kg
Rapid displacement
X , Y-axis rapid movement rate |
20000mm |
Z -axis rapid movement rate |
18000mm |
Cutting feed rate |
1-10000mm/min |
Precision
Positioning accuracy |
±0.01mm |
Repeat positioning accuracy |
±0.003/300mm |
2、 CNC Control system
The system has perfect and reliable interlocking, safety protection and fault diagnosis alarm functions, etc. It is equipped with RS232 standard and Ethernet communication interfaces, which can be controlled and stored with a computer through programs and can achieve DNC Machining (varies depending on the system).
●Motor
X/Y/Z Axis AC servo motor ( Torque N.m 11/11/11 )
3. Power supply unit
Power supply form Three-phase AC 380V ± 10% 50Hz ± 10%
Power consumption capacity 15KVA
4. Cooling system
Water tank volume: 200L
Cooling pump power: 440W
Cooling pump flow: 67L/min
Rated head: 16m
5、 Air source
Operating air pressure: 0.6MPa
6、 Machine tool overall dimensions and weight
Machine tool overall dimensions (depth × width × height) : 2750×2300×2300mm
Machine tool net weight approximately : 4500Kg
