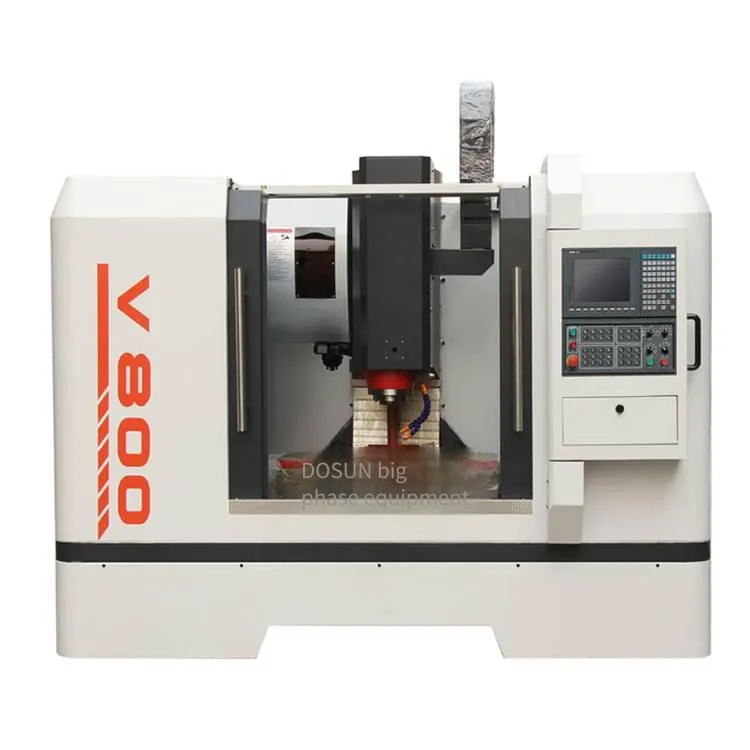

V800 High-speed Machining Center / Milling Machine Material
1. Main Structural Features
◆ High-quality Castings: The whole machine uses HT 300 high-grade resin sand molding castings, which are tempered and subjected to vibration and natural aging treatment to eliminate internal stress.
◆ High Rigidity: One-piece upper water guide plate type wide base, 5 large parts all have a reticular internal structure, ultra-wide "human" shaped column at the bottom, triangular inverted T shaped middle slide, oil-water separation structure of the machine body (water in the front and oil in the back), and built-in pipelines.
◆ Human-shaped Column: Widening the span of the joint surface to improve the rigidity of the machine tool.
◆ Ribbed Machine Head Design: The internal ribs are thickened and enlarged to strengthen the structural rigidity and greatly improve the processing stability.
◆ Processing Characteristics: It has all the performances of both a drilling and tapping center and a machining center, and is a composite mini machining center.
◆ Full-travel Process of Three Axes: Effectively strengthen the dynamic accuracy and service life.
◆ Taiwan-made Linear Rails: High-precision Taiwan-made Three-axis Roller linear rails.
◆ Rear-mounted Motor of the Y Axis: Shorten the distance between upper and lower workpieces to improve processing convenience.
◆ Taiwan-made C3 Grade Ball Screws: Use Taiwan-made C3 grade ball screws to ensure the axial running accuracy.
◆ Taiwan-made Telescopic Shields: The three axes use Taiwan-made shields to extend the service life. The rear shield of the Y axis uses a single-piece human-shaped and full-rail support to achieve effective protection, easy chip removal, and convenient maintenance.
◆ Oil-water Separation Design of the Machine Body: The oil-water separation design of the machine body , the beveled chip discharge port and the all-round design of chip flushing, integrating many advantages such as the rigidity of the machine body, easy chip removal, and the cutting fluid not prone to odor and leakage. , Using the rear chip removal method .
◆Taiwan-made spindle: Assembled with P4 -grade bearings to ensure low vibration at various speeds.
◆Hidden pipeline design: Eliminates concerns about chips and cutting fluid corroding the pipelines.
◆Structural rigidity: Machine body structure designed for a three-axis rapid traverse of 48 m/min .
