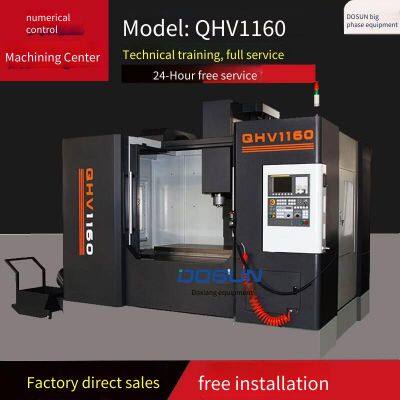

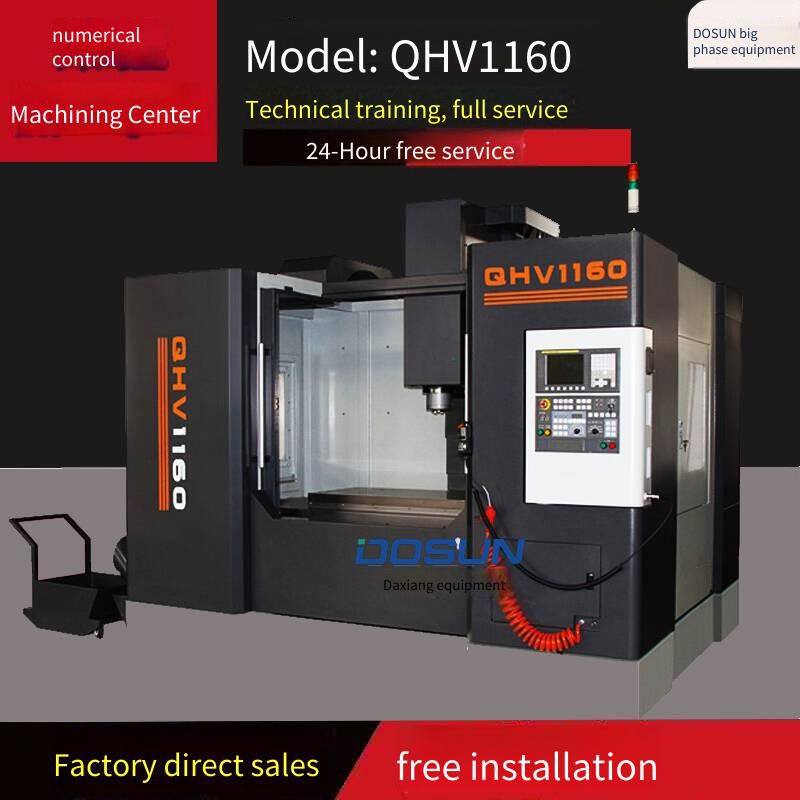

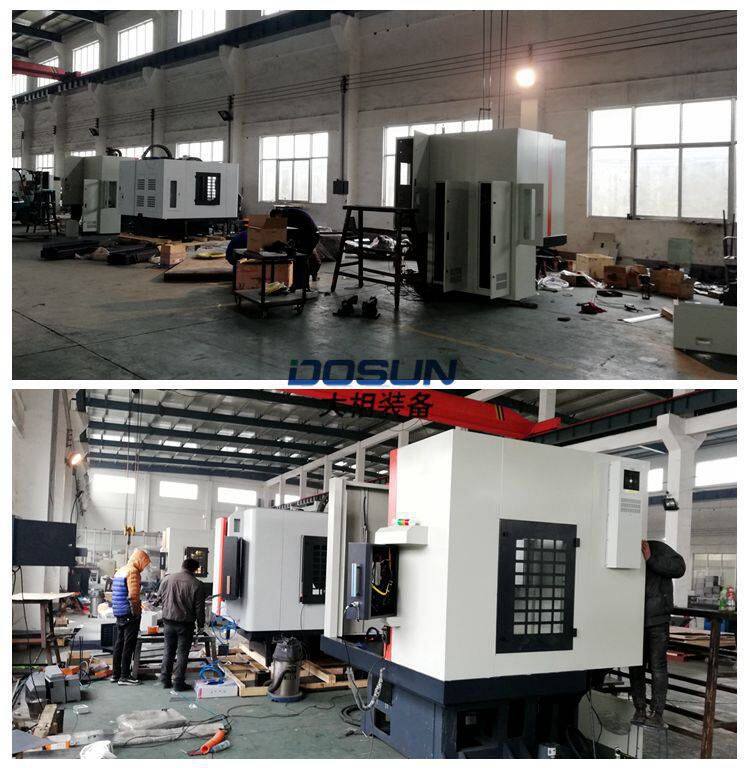

QH V 1160 High-speed Machining Center / Milling Machine Data
Product Introduction and Uses

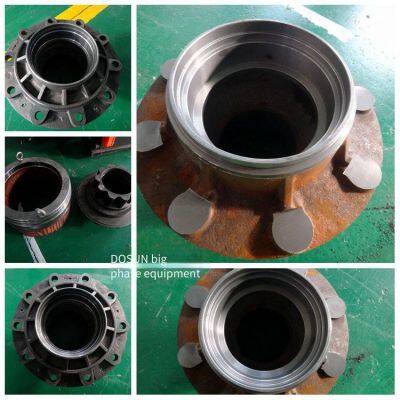

This machining center / milling machine's feed axes are controlled by three coordinates of X , Y , Z The three axes are driven by servo motors, which can achieve one-time clamping for various complex parts such as discs, plates, housings, cams, and molds, and complete multiple processes such as drilling, milling, boring, expanding, reaming, and tapping. It is suitable for the production of multi-variety, small and medium batch parts, and can better show its superiority in the processing of complex and high-precision parts.

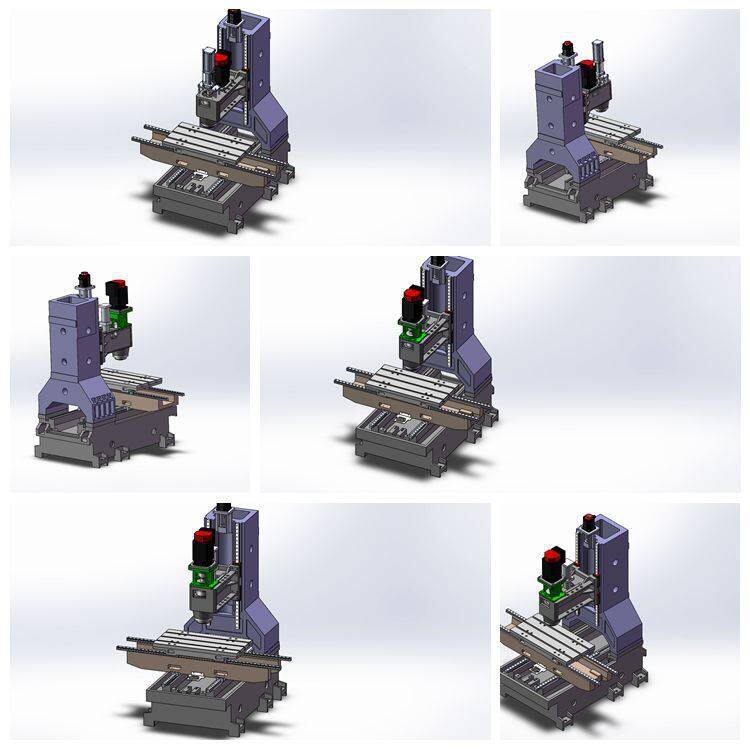

I. Main Structural Features
◆ High-quality castings: The whole machine uses HT300 high-grade resin sand molding castings, which are subjected to tempering treatment, vibration and natural aging treatment to eliminate internal stress.
◆ Ultra-wide base: One-piece castings provide the most stable load-bearing support capacity. Coupled with the water guide plate design, the cutting fluid does not leak.
◆ Herringbone column: Widening the span of the joint surface improves the rigidity of the machine tool.
◆ Ribbed machine head design: The internal ribs are thickened and enlarged, greatly improving the machining rigidity.
◆ Full-travel support for three axes: The three-axis hard rails are all tempered and plastic-coated It effectively enhances the dynamic accuracy and service life.
◆ Super-large rail span design: Ultra-wide rails ensure stable machining accuracy.
◆ Rear-mounted Y-axis motor: Shorten the distance between upper and lower workpieces and improve the convenience of processing.
◆ Japanese-style scraping process: Manual operation by professionals maintains the accuracy and durability of the machine body.
◆ Taiwan-made C3-grade ball screws: Taiwan-made C3-grade ball screws are used to ensure the accuracy of axial operation.
◆ Taiwan-made telescopic shields: Taiwan-made shields are used for the three axes to extend the service life. The rear shield of the Y-axis uses a single-piece herringbone and full-rail support, achieving effective protection, easy chip removal, and convenient maintenance. ◆Built-in counterweight: The counterweight is equipped with a guide rod, so the counterweight does not shake when moving up and down.
◆Oil-water separation of the machine body: The machine body is designed with oil-water separation. The beveled chip discharge port and the full - aspect chip flushing design combine the rigidity of the machine body, easy chip removal, and the advantages that the cutting fluid is not easy to stink and leak.
◆Taiwan-made spindle: The main body is assembled with P4-grade bearings to ensure low vibration at various speeds.
◆Built-in pipelines: Avoid the concern of iron chips and cutting fluid eroding the pipelines.
Two, Main technical parameters
Stroke | |
X axis |
1100 mm |
Y axis |
6 00mm |
Z axis |
700 mm |
From the spindle end face to the workbench |
120 - 820 mm |
From the spindle center to the column guide rail |
655 mm |
Feed | |
X axis rapid movement m/min |
24 m/min |
Y axis rapid movement m/min |
24 m/min |
Z axis rapid movement m/min |
24 m/min |
Cutting feed |
1 - 10m/min |
Recommended three-axis servo motor Torque (Yaskawa Motor) |
X:18.6N.m Y:18.6N.m Z:18.6N.m |
Workbench | |
Workbench area |
1300 ×600mm |
Load capacity |
8 00Kg |
Height from the workbench surface to the ground |
Approximately 95 0 mm |
T -slot |
5 × 18 × 100mm |
Spindle | |
Rotational speed |
8000/10 000rpm |
Spindle taper hole |
BT40 |
Main motor power |
7.5 KW |
Overall machine weight |
75 00Kg |
III. Electrical and cooling
